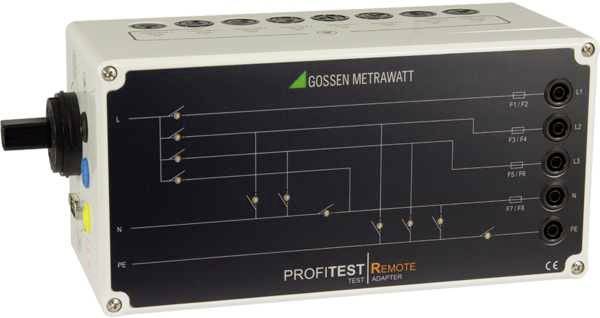

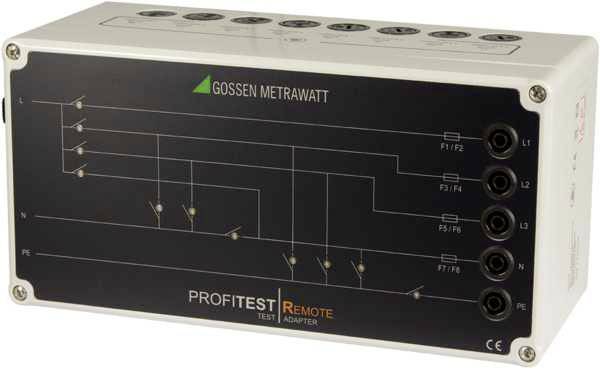

Gossen Metrawatt M514R PROFITEST REMOTE Test adapter 1 pc(s)

3-phase test adapter for the test devices PROFITEST MTECH+ IQ, MXTRA IQ and PRIME for measuring loop and line impedance as well as insulation resistance.
The flexible use of the PROFITEST remote adapter with the test devices of THE GOSSEN METRAWATT enables the use in different application areas. With the accessories perfectly tailored to the requirements, 1 and 3-phase systems can be tested quickly and without the annoying plugging of the measuring lines in accordance with the standards. Each measuring circuit is protected separately for protection. The power supply via the interface enables the network-independant use of the PROFITEST remote.

Product highlights
Use with PROFITEST MTECH+ IQ, MXTRA IQ and PRIME
Measurement of loop and line impedance ZL-PE and ZL-N.
Measurement of the insulation resistance RISO with up to 500 V DC
No need to change the connection during measurement
The phases cannot be swapped during measurement
Saves time during testing in electrical systems
Connection to the test device via 3-pin PRO-SCHUKO test adapter or via 4 mm safety sockets L, N and PE
Control of the test adapter via the connected test device
Connection to system via 4 mm safety sockets L1, L2, L3, N and PE
Data communication via RS232 interface
No offset determination necessary by 4-wire measurement
Signaling of the line connection via LED

Your advantage:
High fail-safety through separate protection of each measuring circuit
Network-independant use is possible, 5V supply via interface
Flexible connection options through optional accessories "Connecting Cable" for 16/32 and 63A
No need to change the connection during measurement
The phases cannot be swapped during measurement
Saves time during testing in electrical systems

Uses:
Measurement of loop impedance ZL-PE
Measurement of the line impedance ZL-N.
Measurement of the insulation resistance RISO with up to 500 V DC
Mobile use with various PROFITEST models
In conjunction with the PROFITEST MXTRA IQ, MTECH+ IQ and PROFITEST PRIME (AC) measurements of loop and line impedance can be performed in the range of 65 to 500 V. Furthermore, the insulation resistance with variable nominal voltage can be measured without the annoying conversion plug.
