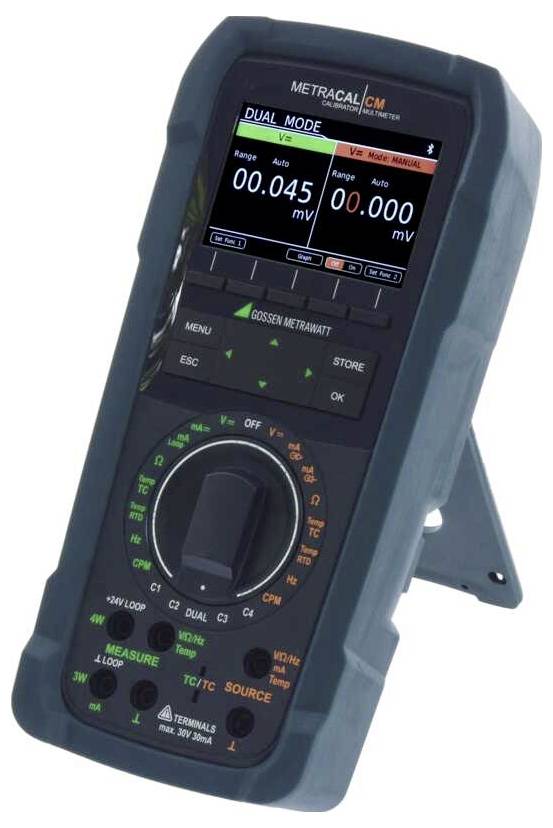

Gossen Metrawatt METRACAL CM XTRA Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperatur
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
High-precision multimeter and process calibrator for measuring and simulating electrical quantities with integrated mA-loop and graph-function as well as HART-communication
- Process calibrator with integrated HART communication and graph function for XT-display of measurement and calibration signals including memory visualization for transparent signal sequences.
- Universal simulation and measurement of mA, mV, V, Ω, Hz, CPM and temperature signals (TC/RTD) for service, maintenance and start-up.
- Integrated mA loop function with 24 V loop supply for supplying and testing 2-conductor transmitters.
- Four freely configurable quick accesses for frequently used measuring and/or calibration functions.
- Dual mode for simultaneous sending and measuring as well as high-resolution color graphics display for structured and efficient calibration processes.
- "Made in Germany" quality – including DAkkS calibration certificate
Technical specifications
- Dual mode: Simultaneous simulation and measurement
- Voltage and current measurement, voltage and resistance simulation
- RTD and TC measurement (Pt100 … Pt1000, Ni100 … Ni1000)
- Frequency and pulse generator (1 Hz – 50 kHz / 6 – 3000 CPM)
- 4 -, 3 - and 2-conductor resistance measurement
- 0.015% basic accuracy at VDC
- Integrated Data logger with real-time clock and automatic Storage of Measuring values
- Robust design with quick-change battery and IP52-protection.
DAkkS standards
- Product type
Multifunction calibrator
- Unit of measurement
Voltage
Amperage
Temperature
Resistance
Frequency
- Resolution
0.001 mA
- Calibration range (thermometer)
-200.0°C...1820 °C
- Temperature accuarcy (details)
0.2°C.. 2.5 °C.
- Dim
(L x W x H) 56 x 235 x 105 mm
- Weight
700 g
- Operating voltage
3.7 V DC
- Reading category
Ohne Messkategorie
- Width
235 mm
- Height
105 mm
- Length
56 mm
- Power supply
Li-ion rechargeable battery (built-in)
PSU (included)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3720862 Gossen Metrawatt METRACAL CM XTRA Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperatur
User & Safety Instructions
User & Safety Instructions 3720862 Gossen Metrawatt METRACAL CM XTRA Multifunction calibrator Calibrated to (DAkkS standards) Voltage, Amperage, Temperatur
Description
The METRACAL CM series redefines the standard for mobile calibration technology. As multi-functional process calibrators for electrical values they combine the highest measurement precision with practical operation and the latest communication.
With Dual mode, programmable operations, integrated data logger and Bluetooth® connectivity, the devices are ready for documented and efficient calibration processes in the laboratory, production and field service.
The METRACAL CM XTRA is the premium model of the series and additionally offers a graphic display of current and stored measured values. Trends, processes and measurement ranges are visualized directly on the display – a clear advantage in the analysis of calibration and process data.
The METRACAL CM XTRA offers maximum transparency and control – perfect for experts who want to keep an eye on their measurements.
Your advantage:
- Provides visual evaluation and rapid trend monitoring directly on the device
- Simplifies analysis of complex measurement and calibration operations
- Increases transparency and traceability of test results
- Saves reporting time with automatic data recording
- Future-proof thanks to optional expandability and digital connectivity
Uses:
- Documentation and visualization of calibration and measurement procedures
- Long-term and stability tests in laboratory and production
- Analysis of signal processes during commissioning and service
- Audit-compliant documentation in quality assurance and development
This text is machine translated.
With Dual mode, programmable operations, integrated data logger and Bluetooth® connectivity, the devices are ready for documented and efficient calibration processes in the laboratory, production and field service.
The METRACAL CM XTRA is the premium model of the series and additionally offers a graphic display of current and stored measured values. Trends, processes and measurement ranges are visualized directly on the display – a clear advantage in the analysis of calibration and process data.
The METRACAL CM XTRA offers maximum transparency and control – perfect for experts who want to keep an eye on their measurements.
Your advantage:
- Provides visual evaluation and rapid trend monitoring directly on the device
- Simplifies analysis of complex measurement and calibration operations
- Increases transparency and traceability of test results
- Saves reporting time with automatic data recording
- Future-proof thanks to optional expandability and digital connectivity
Uses:
- Documentation and visualization of calibration and measurement procedures
- Long-term and stability tests in laboratory and production
- Analysis of signal processes during commissioning and service
- Audit-compliant documentation in quality assurance and development
This text is machine translated.
Scope of delivery
- 1x Hand calibrator METRACAL CM
- 1x function extension HART protocol
- 1x function extension Graph
- 1x cable set KS25-4
- 1x Lithium-Polymer quick release battery with Micro-USB charging socket
- 1x plug power supply USB Power delivery 1 x USB-C & 1 x USB-A, 65W with removable primary connection for EU, UK, US, Asia
- 1x USB cable with USB-A and USB-B connectors, 1 m long
- 1x short instruction manual German/English
- 1x DAkkS calibration certificate
- 1x hard-shell case for holding the device with accessories
Hints
Inclusive of functional enhancements:
HART communication (Highway Addressable Remote Transducer) for direct communication with sensors
Graph - graphical visualization of current and stored measured values
