Gossen Metrawatt METRACLIP 63 Clamp meter Digital Current draw reading CAT II 600 V, CAT III 300 V Display (counts): 999
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

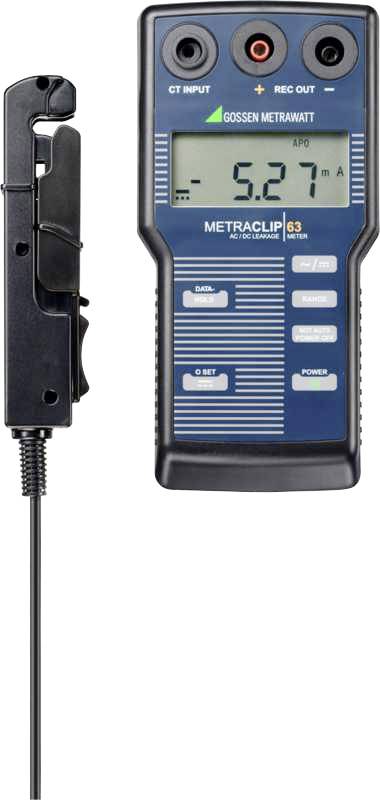

METRACLIP 63
- CAT II 600 V, CAT III 300 V
Technical specifications
- Product type
Clamp meter
- Amperage reading range DC (min.)
0.10 mA
- A DC reading range (max.)
1000 mA
- A AC reading range (min.)
0.01 mA
- Amperage reading range AC (max.)
10 A
- Basic accuracy
1 %
- Measurement type (details)
Average
- Height
155 mm
- Width
78 mm
- Length
23 mm
- Weight
280 g
Manufacturer's standards (no certificate)
- Reading category
CAT II 600 V
CAT III 300 V
- Current reading
AC/DC
- Type
METRACLIP 63
- Display
Digital
- Display (counts)
9999
- Dim
(L x W x H) 23 x 78 x 155 mm
- Features
Current draw reading
- Opening range of current clamps
5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1625794 Gossen Metrawatt METRACLIP 63 Clamp meter Digital Current draw reading CAT II 600 V, CAT III 300 V Display (counts): 999
User & Safety Instructions
User & Safety Instructions 1625794 Gossen Metrawatt METRACLIP 63 Clamp meter Digital Current draw reading CAT II 600 V, CAT III 300 V Display (counts): 999
Description
Equipped with power-save mode, data interface, signalling when measuring range exceeded and flexible current sensor, it can also be used under very unfavorable mechanical conditions.
Measuring ranges: - DC 100 mA/1000mA, AC 100 mA/1000mA/10A
With Digital Display
Switching between DC and AC measurements
Zero-point calibration for DC measurements
Saving the measured value (DATA HOLD)
Power-saving circuit
Clamp-on ammeter with 1.2 m cable length
Clamp opening 5 mm dia.
Analog output (0 ... 100 mV) for the connection of recording devices, e.g. Memory Multimeter
This text is machine translated.
Measuring ranges: - DC 100 mA/1000mA, AC 100 mA/1000mA/10A
With Digital Display
Switching between DC and AC measurements
Zero-point calibration for DC measurements
Saving the measured value (DATA HOLD)
Power-saving circuit
Clamp-on ammeter with 1.2 m cable length
Clamp opening 5 mm dia.
Analog output (0 ... 100 mV) for the connection of recording devices, e.g. Memory Multimeter
This text is machine translated.
Scope of delivery
- 1 meter
- 1 clamp-on ammeter
- 4 LR6 batteries
- 1 Carrying Case
- 1 operating instructions
- 1 Data recording cable set, consisting of 2 cable à 1.8 m each with 1 touch protected plug and 1 alligator clip
