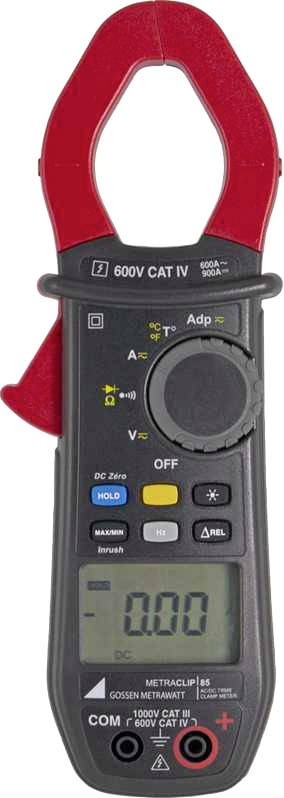

Gossen Metrawatt METRACLIP 85 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
METRACLIP 85
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
900 A
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 60 kΩ
- Frequency reading range
5 Hz - 20 kHz
- Temperature
-60 to +1200 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
10 Hz -3 kHz
- Power supply (details)
9 V battery
- Height
222 mm
- Width
78 mm
- Length
42 mm
- Weight
340 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRACLIP 85
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 42 x 78 x 222 mm
- Opening range of current clamps
34 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1625663 Gossen Metrawatt METRACLIP 85 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60
User & Safety Instructions
User & Safety Instructions 1625663 Gossen Metrawatt METRACLIP 85 Clamp meter, Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 60
Description
Clamp-on ammeter opening: 34 mm
Current:
AC 60.00/Sfr 600.0 A rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0 / ± 900 A DC
AC+DC 60.00/Sfr 600.0 A rms
60.00/Sfr 600.0/900 A peak
Starting current:
6..600 A rms/900 A peak
Voltage:
AC 60.00/Sfr 600.0/1000V rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0/±1000 V DC
AC+DC 60.00/Sfr 600.0/1000V rms
60.00/Sfr 600.0/1400 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .2999 Hz
Metra clip 85
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Relative and differential measurements
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
Diode testing
K Type thermocouple temperature measurement
Connection of sensors and transducers with voltage output
LCD/digits with blue backlight. 6000
Automatic shut-off auto power-off
Test Protocol incl.
This text is machine translated.
Current:
AC 60.00/Sfr 600.0 A rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0 / ± 900 A DC
AC+DC 60.00/Sfr 600.0 A rms
60.00/Sfr 600.0/900 A peak
Starting current:
6..600 A rms/900 A peak
Voltage:
AC 60.00/Sfr 600.0/1000V rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0/±1000 V DC
AC+DC 60.00/Sfr 600.0/1000V rms
60.00/Sfr 600.0/1400 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .2999 Hz
Metra clip 85
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Relative and differential measurements
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
Diode testing
K Type thermocouple temperature measurement
Connection of sensors and transducers with voltage output
LCD/digits with blue backlight. 6000
Automatic shut-off auto power-off
Test Protocol incl.
This text is machine translated.
Scope of delivery
- 1 Multi-use clamp-on ammeter
- 2 Measuring cable red and black (length 1.6 m), each with a contact-protected plug, CAT IV 1000 V/15A
- 1 thermocouple probe type K with banana plugs
- 1 9 V battery
- 1 carrying case with wrist strap
- 1 test protocol
- 1 Safety Data Sheet
- 1 quick instructions in the Languages D/GB/F/E/I pressed
- 1 Operating instructions in the Languages D/GB/F/E/I on Mini-CD-ROM
