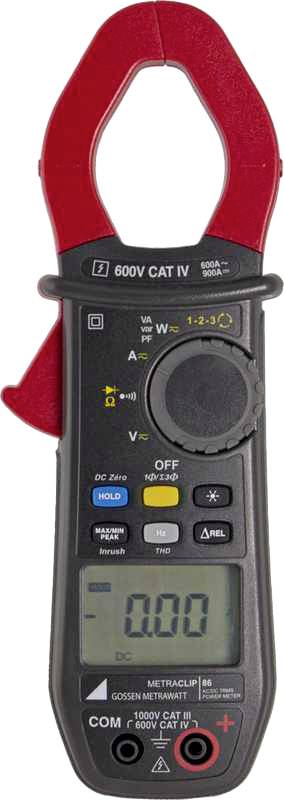

Gossen Metrawatt METRACLIP 86 Clamp meter, Handheld multimeter Digital Data Hold function, Continuity tester, Screen bac
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
METRACLIP 86
- CAT III 1000 V, CAT IV 600 V
Technical specifications
- Measuring range for effective power: 0 W - 900 kW
- Measuring range apparent power: 5 VA - 900 kVA
- Measuring range reactive power: 5 VAr - 900 kVAr
- Power factor measuring range: 0.00 - 1.00
- Measuring range harmonics THD: 0.0 - 100%
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
900 A
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
600 A
- Reading range - resistance
0.1 Ω - 60 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
10 Hz -3 kHz
- Power supply (details)
9 V DC
- Height
222 mm
- Width
78 mm
- Length
42 mm
- Weight
340 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 1000 V
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRACLIP 86
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 42 x 78 x 222 mm
- Features
Data Hold function
Continuity tester
Screen back-lighting
- Opening range of current clamps
34 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1625795 Gossen Metrawatt METRACLIP 86 Clamp meter, Handheld multimeter Digital Data Hold function, Continuity tester, Screen bac
User & Safety Instructions
User & Safety Instructions 1625795 Gossen Metrawatt METRACLIP 86 Clamp meter, Handheld multimeter Digital Data Hold function, Continuity tester, Screen bac
Description
The multi-use clamp-on ammeter metra clip 86 meets all the expectations for businesses in the electrical handicraft and is suitable for applications in the low-voltage range for small and medium-sized services e.g. maintenance of electrical installations and machinery, for troubleshooting, installation of heating and air-conditioning systems, as well as measurement of start-up currents of motors
Clamp-on ammeter opening: 34 mm
Current:
AC 60.00/Sfr 600.0 A rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0 / ± 900 A DC
AC+DC 60.00/Sfr 600.0 A rms
60.00/Sfr 600.0/900 A peak
Starting current:
6..600 A rms/900 A peak
Voltage:
AC 60.00/Sfr 600.0/1000V rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0/±1000 V DC
AC+DC 60.00/Sfr 600.0/1000V rms
60.00/Sfr 600.0/1400 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .2999 Hz
Power:
Active power: 5999 W/59.99/599,9/900 kW
Apparent power: 5999 VA/59.99/599,9/900kVA
Reactive power: 5999 var/59.99/599,9/900 kvar
+1,00 PF -1.00..
THDr/THDf 0.0..100%/0.0. 1000%
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Power measurement (W, VA, Var, PF)
Harmonic measurement (THD)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Relative and differential measurements
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
Diode testing
Display of the rotary field direction
Phase sequence
LCD/digits with blue backlight. 6000
Automatic shut-off auto power-off
Test Protocol incl.
This text is machine translated.
Clamp-on ammeter opening: 34 mm
Current:
AC 60.00/Sfr 600.0 A rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0 / ± 900 A DC
AC+DC 60.00/Sfr 600.0 A rms
60.00/Sfr 600.0/900 A peak
Starting current:
6..600 A rms/900 A peak
Voltage:
AC 60.00/Sfr 600.0/1000V rms at 10 Hz - 3 kHz
DC ± 60.00 / ± Sfr 600.0/±1000 V DC
AC+DC 60.00/Sfr 600.0/1000V rms
60.00/Sfr 600.0/1400 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .2999 Hz
Power:
Active power: 5999 W/59.99/599,9/900 kW
Apparent power: 5999 VA/59.99/599,9/900kVA
Reactive power: 5999 var/59.99/599,9/900 kvar
+1,00 PF -1.00..
THDr/THDf 0.0..100%/0.0. 1000%
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Power measurement (W, VA, Var, PF)
Harmonic measurement (THD)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Relative and differential measurements
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
Diode testing
Display of the rotary field direction
Phase sequence
LCD/digits with blue backlight. 6000
Automatic shut-off auto power-off
Test Protocol incl.
This text is machine translated.
Scope of delivery
- 1 Multi-use clamp-on ammeter
- 2 Measuring cable red and black (length 1.6 m), each with a contact-protected plug and Simplyfying probe tip, 1000 V/15 A CAT IV
- 1 alligator clip, black, CAT IV 1000 V/15A
- 1 9 V battery
- 1 carrying case with wrist strap
- 1 test protocol
- 1 Safety Data Sheet
- 1 quick instructions in the Languages D/GB/F/E/I pressed
- 1 Operating instructions in the Languages D/GB/F/E/I on Mini-CD-ROM
