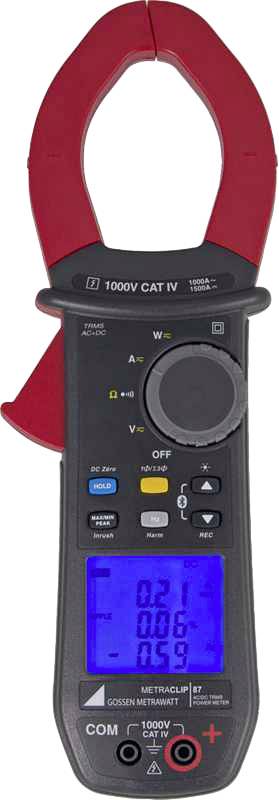

Gossen Metrawatt METRACLIP 87 Clamp meter, Handheld multimeter Digital Data logger Display (counts): 6000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Current Probe Measurement Unit Metra clip 87
- Multi-use clamp-on ammeter for current, voltage, power, harmonics and frequency, 1000 V CAT IV
Technical specifications
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
1500 A
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
1500 A
- Reading range - resistance
0.1Ω - 100 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
45 Hz -3 kHz
- Interfaces
Bluetooth®
- Power supply (details)
4 x AA battery
- Height
242 mm
- Width
92 mm
- Length
41 mm
- Weight
600 g
Manufacturer's standards (no certificate)
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
METRACLIP 87
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 41 x 92 x 242 mm
- Features
Data logger
- Interfaces
Bluetooth®
- Opening range of current clamps
48 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1625574 Gossen Metrawatt METRACLIP 87 Clamp meter, Handheld multimeter Digital Data logger Display (counts): 6000
User & Safety Instructions
User & Safety Instructions 1625574 Gossen Metrawatt METRACLIP 87 Clamp meter, Handheld multimeter Digital Data logger Display (counts): 6000
Description
The multi-use clamp-on ammeter metra clip 87 is suited for measuring medium services in the low-voltage range and thus offers optimum safety for every type of plant and under all conditions. In addition to the Einsatzmog-lichkeiten such as maintenance, troubleshooting or maintenance, the pliers can also use in measurements in railway transport and in low-voltage supply networks.
Clamp-on ammeter opening: 48 mm
Current:
AC 99.99/999.9 A rms at 10 Hz - 2 kHz
DC ± 99.99 / ± 999.9/±1500 A dc
AC+DC 99.99/999.9 A rms
99.99/999.9/1500 A peak
Starting current:
10..1000 A rms / 1500 A peak
Voltage:
AC 99.99/999.9 V rms at 10 Hz - 3 kHz
DC ± 99.99 / ± 999.9 V dc
AC+DC 99.99/999.9 V rms
99.99/999.9 / 1500 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .1999 Hz
Power:
Active power: 9999 W/99.99 / 999.9/1500kW
Apparent power: 9999 VA/99.99 / 999.9/1500 kVA
Reactive power: 9999 var/99.99 / 999.9/1500 Kvar
+1,00 PF -1.00..
DPF 0.00. 1.00
Distortion: .1000 % ripple 0.1.
CF 1.00.. 10.00
THDr/THDf 0.0..100%/0.0. .1000 %
Harmonious H01.. H25
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Power measurement (W, VA, Var, PF)
Measurement of the Crest Factor (CF)
Displacement factor (DPF)
Ripple (RIPPLE)
Harmonic measurement (THD)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
The recording of the measured values
Wireless data transfer via Bluetooth
LCD with blue backlight 10,000/Digits
Automatic shut-off auto power-off
Software for analysis of the measured values
Test Protocol incl.
This text is machine translated.
Clamp-on ammeter opening: 48 mm
Current:
AC 99.99/999.9 A rms at 10 Hz - 2 kHz
DC ± 99.99 / ± 999.9/±1500 A dc
AC+DC 99.99/999.9 A rms
99.99/999.9/1500 A peak
Starting current:
10..1000 A rms / 1500 A peak
Voltage:
AC 99.99/999.9 V rms at 10 Hz - 3 kHz
DC ± 99.99 / ± 999.9 V dc
AC+DC 99.99/999.9 V rms
99.99/999.9 / 1500 V peak
Frequency:
F (UAC) 5.0 Hz.. 19.99 kHz
F (IAC) 5.0 Hz. .1999 Hz
Power:
Active power: 9999 W/99.99 / 999.9/1500kW
Apparent power: 9999 VA/99.99 / 999.9/1500 kVA
Reactive power: 9999 var/99.99 / 999.9/1500 Kvar
+1,00 PF -1.00..
DPF 0.00. 1.00
Distortion: .1000 % ripple 0.1.
CF 1.00.. 10.00
THDr/THDf 0.0..100%/0.0. .1000 %
Harmonious H01.. H25
Electrical Safety according to IEC 61010
Real effective measurement TRMS
Current measurement (AC and DC)
Voltage measurement (AC and DC)
Power measurement (W, VA, Var, PF)
Measurement of the Crest Factor (CF)
Displacement factor (DPF)
Ripple (RIPPLE)
Harmonic measurement (THD)
Start-up and over-current measurement (True Inrush)
Frequency measurement.
Automatic measurement range switching
Saving the display (DATA HOLD)
Data acquisition (MIN, MAX, peak)
Continuity test, acoustic signal
Resistance measurement
The recording of the measured values
Wireless data transfer via Bluetooth
LCD with blue backlight 10,000/Digits
Automatic shut-off auto power-off
Software for analysis of the measured values
Test Protocol incl.
This text is machine translated.
Scope of delivery
- 1 Multi-use clamp-on ammeter
- 2 Measuring cable red and black (length 1.6 m), each with a contact-protected plug and Simplyfying probe tip, CAT IV 1000 V/15A
- 2 alligator clips, red and black, CAT IV 1000 V/15A
- 4 1.5 V batteries
- 1 carrying case with wrist strap
- 1 test protocol
- 1 Safety Data Sheet
- 1 quick instructions in the Languages D/GB/F/E/I pressed
- 1 Operating instructions in the Languages D/GB/F/E/I on Mini-CD-ROM
- 1 PC program for evaluating the measured values on Mini-CD-ROM
