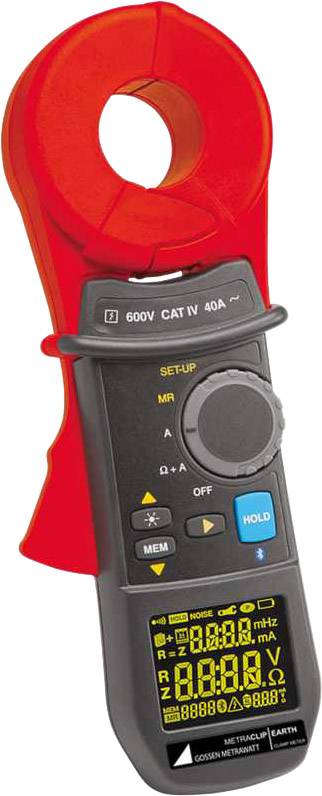

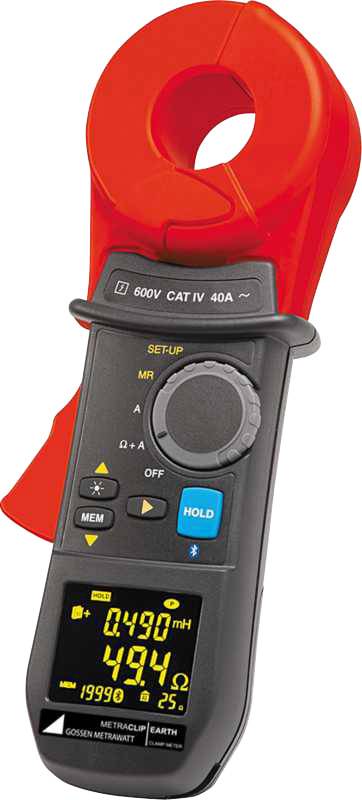

Gossen Metrawatt METRACLIP EARTH Earth ground meter 0.01 - 1500 Ω

Uses:
The following measurements are possible:
Measurements of earthing resistance, if this earth with your equipotential bonding conductor in order to ground loop.
Earthing measurements, e.g. via the Erdseil, The Electricity pylons for energy transfer or for telecommunications.
Measurements on distributed grounding with the same ground plane.
Technical characteristics:
Measuring functions
Resistance of the ground loop may cause: 0.01... 1500 O
Loop inductance: 10... 500 Ìh
Leakage current: 0.2 mA... 40A AC
Contact voltage: 0.1 ... 75 V
Properties
Compact and user-friendly - One-handed operation thanks to its low weight and clamp opening with little effort by spring force compensation
Large OLED display, up to 3 measured values can be read at the same time
Max. jaw width 35 mm dia.
Low noise current influence
Measured value memory for resistance and leakage current
High security through CAT IV 600 V

This text is machine translated.
