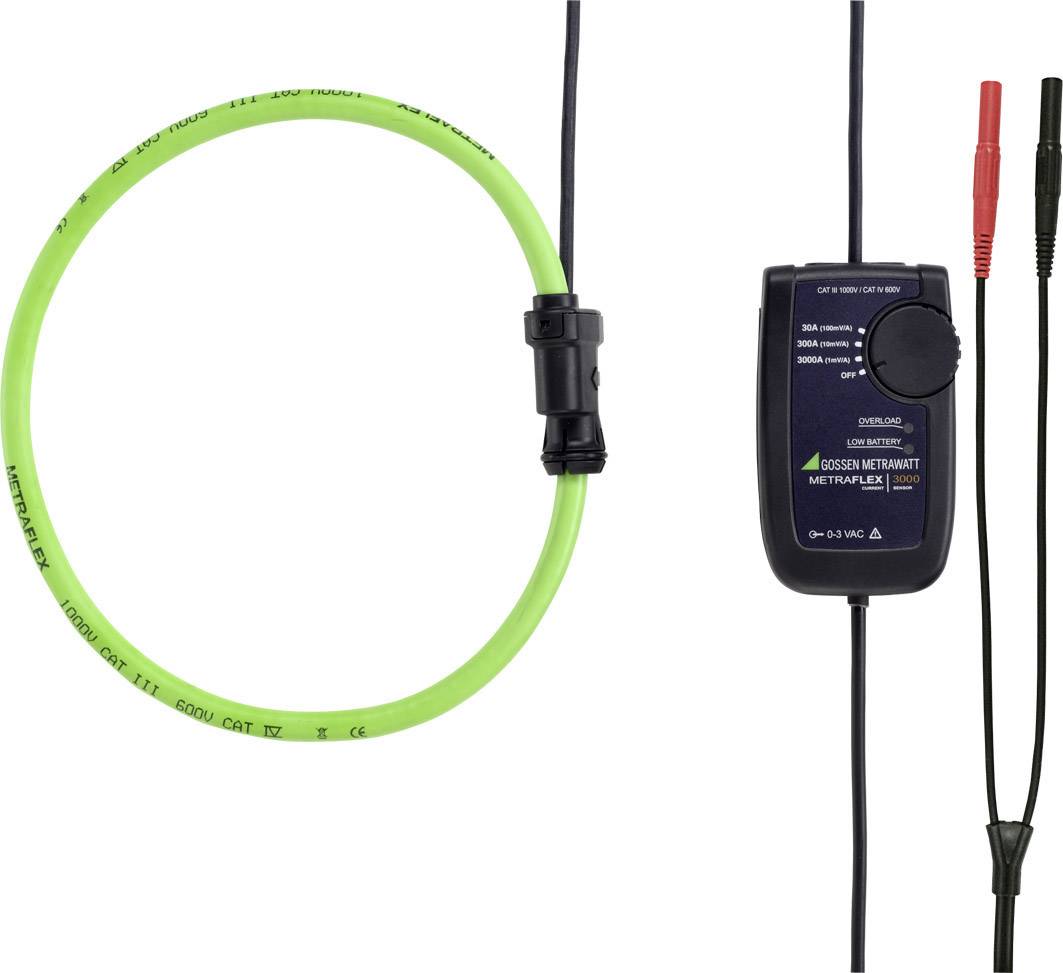

Gossen Metrawatt METRAFLEX 3000 Clamp meter adapter A/AC reading range: 30 - 3000 A Flexible
EAN:
Part number:
Item no:
Highlights & Details
Flexible AC current sensors (Rogowski) with voltage output
- N/A
- Opening range of current clamps 610 mm
Technical specifications
- Measuring range AC 30 A/300 A/3000A (RMS)
- Resolution 100 mA/1 A/10 A
- Sensor length 61 cm
- Frequency range: 10 Hz to 20 kHz own uncertainty: 1% + 01A/01A/1A
- Opening range of current clamps
610 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
30 A
- Amperage reading range AC (max.)
3000 A
- Power supply (details)
2 AA batteries
- Current reading
AC
- Reading category
CAT III 1000 V
CAT IV 600 V
- Weight
0.56 kg
- Max. frequency
20 kHz
- Length
610 mm
- Features
Flexible
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1405742 Gossen Metrawatt METRAFLEX 3000 Clamp meter adapter A/AC reading range: 30 - 3000 A Flexible
Description
Wide range of applications, 3 measuring ranges from 30 A/300 A/3000A AC and High Bandwidth 10 Hz... 20 kHz for harmonic analysis · Exact measurement also at low currents, through large dynamic range and high sensor sensitivity · Low influence of the position of the conductor and minimum external field influence · Easy usage in narrow spaces through a small sensor cross-section 9.9 mm and slim end cap 13.6 mm · Secure handling also with protective gloves, opening the sensor and measurement range setting in one-hand operation · Extremely long battery life of up to 2000 h · Current sensor with protection class IP65, measurement amplifier with IP40 · High security for users, Measurement Category 1000 V@ CATIII, 600 V@ CATIV and unrestricted overload capacity
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 Rogowski
- 2 x 1.5V batteries (AA)
