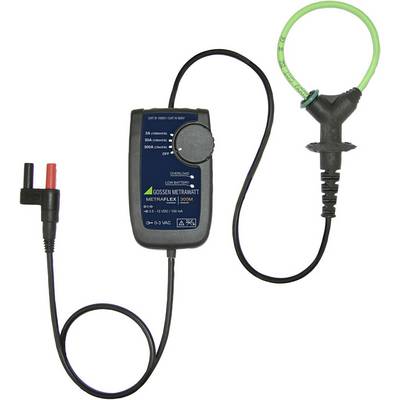

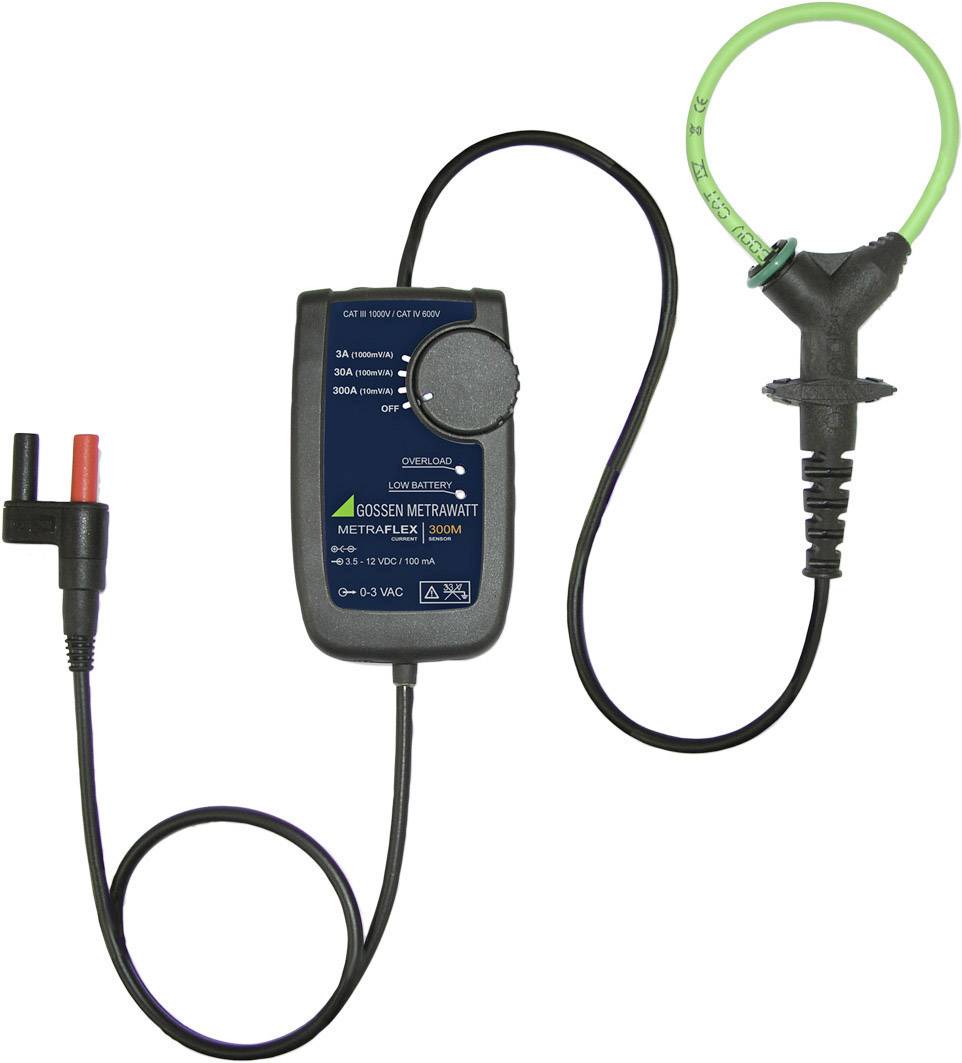

Gossen Metrawatt METRAFLEX 300M Clamp meter adapter A/AC reading range: 3 - 300 A Flexible
EAN:
Part number:
Item no:
Highlights & Details
Flexible AC current sensors (Rogowski) with voltage output
- N/A
- Opening range of current clamps 160 mm
Technical specifications
- Measurement ranges AC 3 A/30 A/300 A (RMS)
- Resolution 10 mA/10 mA/100 mA
- Sensor length 16 cm
- Frequency range 20 Hz to 100 kHz own uncertainty: 1% + 0.2A/0.2A / 1A
- Opening range of current clamps
160 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
3 A
- Amperage reading range AC (max.)
300 A
- Power supply (details)
2 AA batteries
- Current reading
AC
- Reading category
CAT III 1000 V
CAT IV 600 V
- Weight
0.75 kg
- Max. frequency
100 kHz
- Length
160 mm
- Features
Flexible
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1405743 Gossen Metrawatt METRAFLEX 300M Clamp meter adapter A/AC reading range: 3 - 300 A Flexible
Description
Wide range of applications, 3 measuring ranges 3 A/30 A/300 A AC and High Bandwidth 20 Hz... 100 kHz for performance and network analysis · Exact measurement also at low currents, through large dynamic range and high sensor sensitivity · Low influence of the position of the conductor and minimum external field influence · Easy usage in narrow spaces through a small sensor cross-section 6 mm · Secure handling also with protective gloves, opening the sensor and measurement range setting in one-hand operation · Battery life approx. 150 h · Current sensor with protection class IP50, measurement amplifier with IP40 · High security for users, Measurement Category 1000 V@ CAT III, 600 V@ CAT IV and unrestricted overload capacity, designed for continuous operation
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 Rogowski
- 2 x 1.5V batteries (AA)
