Buy Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

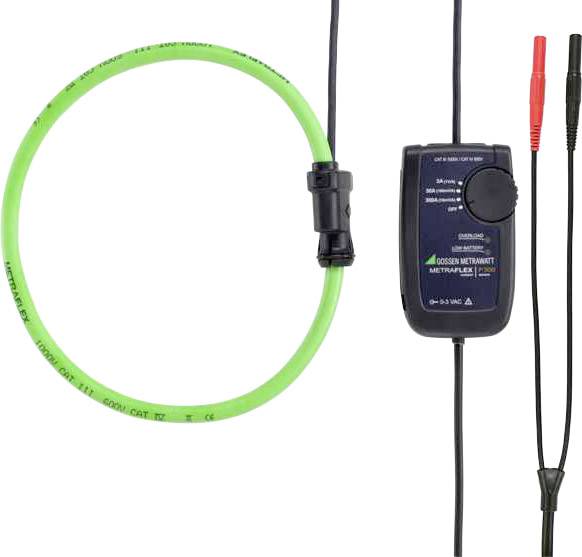

'AC/DC current sensor with green measuring cable and black housing. Connection cables terminate in red and black terminals.'

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Flexible current sensor METRAFLEX P300

N/A
Opening range of current clamps 450 mm

Technical specifications

Sensor cross-section 9.9 mm.
Protection class IP65
Cord length approximately: 2 m.

Opening range of current clamps: 450 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.01 A

Amperage reading range AC (max.): 300 A

Basic accuracy: 1 %

Power supply (details): 2 AA batteries

Dim: (L x W x H) 23 x 65 x 110 mm

Current reading: AC

Reading category: CAT III 1000 V
CAT IV 600 V

Output signal (max.): 3 V

Max. frequency: 4 kHz

Width: 65 mm

Height: 110 mm

Length: 23 mm

Features: Flexible

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

Item no:1625801

This article

300 A

Manufacturer's standards (no certificate)

4 mm plug

0.01 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt WZ11A Clamp meter adapter A/AC reading range: 1 - 200 A

Item no:1625597

200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT II 1000 VCAT III 600 V

Gossen Metrawatt GEOHM FLEX 3 Clamp meter adapter A/AC reading range: 0 - 4.99 A Flexible

Item no:1625611

4.99 A

Manufacturer's standards (no certificate)

manufacturer-specific

0 A

CAT IV 600 V

Gossen Metrawatt WZ11B Clamp meter adapter A/AC reading range: 0.5 - 200 A

Item no:1625670

200 A

Manufacturer's standards (no certificate)

4 mm plug

0.5 A

CAT II 1000 VCAT III 600 V

Gossen Metrawatt E-Clip 1 Clamp meter adapter A/AC reading range: 1 mA - 1200 A

Item no:1625691

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 mA

CAT III 600 V

Gossen Metrawatt GEOHM FLEX 1 Clamp meter adapter A/AC reading range: 0 - 4.99 A Flexible

Item no:1625704

4.99 A

Manufacturer's standards (no certificate)

manufacturer-specific

0 A

CAT IV 600 V

Gossen Metrawatt METRAFLEX 3001XBL/36 Clamp meter adapter A/AC reading range: 0.16 - 3000 A Flexible

Item no:1625716

3000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.16 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 3003XBL/36 Clamp meter adapter A/AC reading range: 0.16 - 3000 A Flexible

Item no:1625717

3000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.16 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 300MXBL/3 Clamp meter adapter A/AC reading range: 0.006 - 300 A Flexible

Item no:1625718

300 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.006 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 6003 XBL Clamp meter adapter A/AC reading range: 0.32 - 6000 A Flexible

Item no:1625722

6000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.32 A

CAT III 1000 VCAT IV 600 V

Documents & Downloads

Datasheet

Datasheet 1625801 Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

User & Safety Instructions

User & Safety Instructions 1625801 Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

Description

The flexible current sensor is used in conjunction with measuring devices to 3 V AC measuring input.
The sensor loop can be one or more conductors of any design (insulated cables, busbars, pipes).
For the autonomous operation of the measuring amplifier with internal batteries supplied.
Technical characteristics:
Wide range of applications, 3 measuring ranges 3/30/300 A AC, but not for power measurement
High Bandwidth 20 Hz... 4 kHz for harmonic analysis
Exact measurement also at low currents, through large dynamic range and high sensor sensitivity
Low influence of the position of the conductor and minimum external field influence
Easy usage in narrow spaces through a small sensor cross-section 9.9 mm and slim end cap 13.6 mm
Secure handling also with protective gloves - opening the sensor and measurement range setting in one-hand operation
Current sensor with protection class IP65, measurement amplifier with IP40
High security for users, Measurement Category 1000 V@ CAT III, 600 V@ CAT IV and unrestricted overload capacity

This text is machine translated.

Scope of delivery

1 flexible current sensor METRAFLEX P300
1 set of batteries.
1 operating instructions
