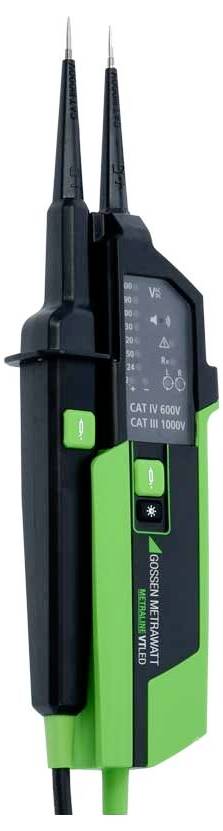

Gossen Metrawatt METRALINE VT LED Voltage and continuity tester CAT IV 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Two-pole voltage tester
- RCD trip test for 30 mA using two push-buttons
- Convenient safety functions like vibration and torch light
- High ergonomics thanks to specially developed housing structure with rubber cushions
- One-handed operation by connecting test tips
Technical specifications
- Product type
Voltage and continuity tester
- Reading type
Rotating magnetic field
Continuity
Phase
Voltage testing
- Display
LED
- V AC reading range
12 up to 1000 V
- V DC reading range
12 up to 1500 V
- Load switching
30 mA
- Reading category
CAT IV 600 V
IP64
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 280 x 75 x 35 mm
- Weight
275 g
- V AC reading range (max.)
1000 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
1500 V
- Voltage reading range DC (min.)
12 V
- Width
75 mm
- Height
35 mm
- Length
280 mm
- Type
METRALINE VT LED
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3411550 Gossen Metrawatt METRALINE VT LED Voltage and continuity tester CAT IV 600 V LED
User & Safety Instructions
User & Safety Instructions 3411550 Gossen Metrawatt METRALINE VT LED Voltage and continuity tester CAT IV 600 V LED
Description
The two-pole voltage tester METALLINE VT LED impresses through its robustness and simple handling. The LED display for different voltage ranges enables clear reading, while the RCD trigger test with 30 mA can be performed quickly and conveniently via just two push buttons. With its wide range of functions, this new device not only allows voltage testing, but also continuity and polarity testing. Additional safety features such as voltage vibration warning and the integrated torch make electrical work safer and more effective, even in difficult working conditions.
This text is machine translated.
This text is machine translated.
Features
- 12…1000 V AC / 12…1500 V DC
- LED display for defined voltage ranges
- Frequency range 16.7 950 Hz
- Polarity indicator
- RCD trip test for 30 mA using two push-buttons
- Continuity testing
- Single pole Phase testing
- Rotating magnetic field indicator
- Torch
- Voltage vibration
- Measurement category CAT III 1000 VAC/1500 VDC CAT IV 600
- IP 64, GS 38 probe tip cap and probe tip extension can be screwed on
Scope of delivery
- 2x 4 mm probe tip adapter (round contact pins) (in holder at probe tip protection)
- 2x safety caps, screw-on for CAT IV 600 V / CAT III 1000 V / GS-38 (mounted on probe tip protection)
- 1x test prod protection (on the cable)
- 2x batteries (1.5 V, IEC AAA)
- 1x user manual
