Buy Gossen Metrawatt METRAmax 2 Handheld multimeter Analogue

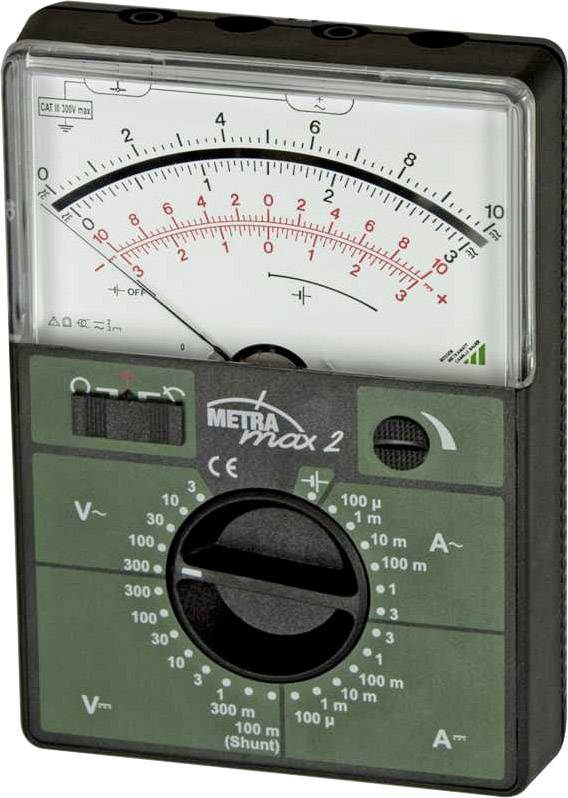

Analogue multimeter with needle display, showing voltage and current. Rotary switch for different measurement ranges, scale from 0 to 300V.

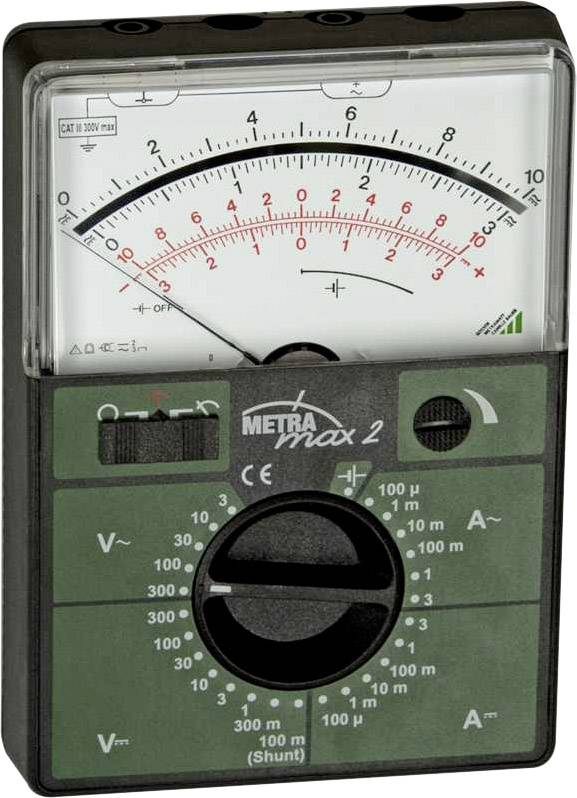

An analogue multimeter with a scale for voltage and current. The rotary dial shows various measurement ranges and functions.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Voltage reading range DC (min.): 0 V

Product type: Handheld multimeter

Voltage DC reading range (max.): 300 V

V AC reading range (min.): 0 V

V AC reading range (max.): 300 V

Amperage reading range DC (min.): 0 A

A DC reading range (max.): 3 A

A AC reading range (min.): 0 A

Amperage reading range AC (max.): 3 A

Height: 35 mm

Width: 100 mm

Length: 140 mm

Weight: 0.3 kg

: Manufacturer's standards (no certificate)

Current reading: AC/DC

Type: METRAmax 2

Display: Analogue

Dim: (L x W x H) 140 x 100 x 35 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Type

Amperage reading range AC (max.)

Voltage DC reading range (max.)

A DC reading range (max.)

Calibrated to

Current reading

V AC reading range (max.)

Gossen Metrawatt METRAmax 2 Handheld multimeter Analogue

Item no:1625751

This article

METRAmax 2

3 A

300 V

3 A

Manufacturer's standards (no certificate)

AC/DC

300 V

Gossen Metrawatt METRAHIT AM PRO + GH Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V Display (counts): 12000

Item no:1625565

METRAHIT AM PRO + GH

16 A

1000 V

16 A

DAkkS standards

AC/DC

1000 V

Gossen Metrawatt METRAHIT CAL Pack Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards Display (counts): 12000

Item no:1625585

METRAHIT CAL Pack

DAkkS standards

AC/DC

Gossen Metrawatt METRAHit 2A Handheld multimeter Analogue

Item no:1625627

METRAHit 2A

15 A

500 V

15 A

Manufacturer's standards (no certificate)

500 V

Gossen Metrawatt METRAHIT AM TECH + GH Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V, CAT III 1000 V Display (counts): 12000

Item no:1625759

METRAHIT AM TECH + GH

10 A

1000 V

10 A

DAkkS standards

AC/DC

1000 V

Gossen Metrawatt METRAHIT PM XTRA Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V Display (counts): 60000

Item no:1625762

METRAHIT PM XTRA

10 A

1000 V

10 A

DAkkS standards

AC/DC

1000 V

Gossen Metrawatt METRAHIT PM TECH Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V Display (counts): 60000

Item no:1625763

METRAHIT PM TECH

10 A

1000 V

10 A

DAkkS standards

AC/DC

1000 V

Gossen Metrawatt AERO Master Test Kit II Handheld multimeter Calibrated to (DAkkS standards) Digital Splashproof (IP54), Data logger CAT II 1000 V, CAT III 600 V Display (counts): 30000

Item no:1625792

AERO Master Test Kit II

10 A

1000 V

10 A

DAkkS standards

AC/DC

1000 V

Gossen Metrawatt SECULIFE HIT AM Handheld multimeter Calibrated to (DAkkS standards) Conforms wth DAkkS standards CAT IV 300 V

Item no:1625879

SECULIFE HIT AM

10 A

DAkkS standards

AC/DC

Gossen Metrawatt METRAHIT ENERGY DC Power Set Handheld multimeter Calibrated to (DAkkS standards) Digital Data logger CAT IV 300 V

Item no:1625919

METRAHIT ENERGY DC Power Set

10 A

600 V

1250 A

DAkkS standards

AC/DC

600 V

Documents & Downloads

Datasheet

Datasheet 1625751 Gossen Metrawatt METRAmax 2 Handheld multimeter Analogue

User & Safety Instructions

User & Safety Instructions 1625751 Gossen Metrawatt METRAmax 2 Handheld multimeter Analogue

Description

The hand-held multimeter METRAmax2 has been developed with the participation of a well-known German teaching system manufacturer and thus fulfils the current requirements to teaching and vocational training.
Owing to excellent overload capacity, optional setting of scale zero point in the center or left as well as automatic battery cut-off makes the unit not only suitable for students exercises but also for adjustment and revision work in the service.

This text is machine translated.

Features

Voltage measurement: 0.. 100 / 300 mV/1 V=; 0.. 3 / 10 / 30 / 100 / 300 V=/~
Current measurement 0. 100 mA/1/ 10/ 100 mA / 1 / 3 A =/~
Zero point left/center
Accuracy: Class 2=/3 ~
Dimensions: 100 x 140 x 35 mm
Weight: approx. 0.3 kg including battery
Battery: 9V flat cell battery IEC 6LR61 (6F22)

Scope of delivery

-1 multimeter (no cable set)
1 battery
1 operating instructions
