Gossen Metrawatt METRAPhase 1 Rotating EMF indicator CAT IV 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Rotary field indicator metra phase 1
- Rotary field indicator with electronic rotary disc, the frequency display and the display of the rated line voltage
Technical specifications
- Power supply: 4 AA batteries
- Product type
Rotating EMF indicator
- Reading type
Rotating magnetic field
- Display
LED
- V AC reading range
690 V (max)
- Reading category
CAT IV 600 V
IP40
Manufacturer's standards (no certificate)
- V AC reading range (max.)
690 V
- Type
METRAPhase 1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1625637 Gossen Metrawatt METRAPhase 1 Rotating EMF indicator CAT IV 600 V LED
User & Safety Instructions
User & Safety Instructions 1625637 Gossen Metrawatt METRAPhase 1 Rotating EMF indicator CAT IV 600 V LED
Description
The safety regulations corresponding rotary field direction indicator.
Many users prefer the rotary disc after the Ferrari principle, which is connected with a lot of mechanics. The requires a certain volume, which in turn is a large housing for the corresponding air and creepage distances.
We have at our rotary field indicator METRA PHASE 1 therefore the path of electronic rotary disc is selected.
With the LEDs on the circuit, not only the direction, but by different colors and twinkling LEDs in this circle, the frequency of the grid is displayed in which is measured. The aim of the respective phase voltage is conform to the regulations by means of additional LEDs, as well as the rated voltage of the grid.
This new rotary field direction indicator can be used as a pointer can be used as a two-pin and Dreipol
Power supply: 4 AA batteries IEC LR6
This text is machine translated.
Many users prefer the rotary disc after the Ferrari principle, which is connected with a lot of mechanics. The requires a certain volume, which in turn is a large housing for the corresponding air and creepage distances.
We have at our rotary field indicator METRA PHASE 1 therefore the path of electronic rotary disc is selected.
With the LEDs on the circuit, not only the direction, but by different colors and twinkling LEDs in this circle, the frequency of the grid is displayed in which is measured. The aim of the respective phase voltage is conform to the regulations by means of additional LEDs, as well as the rated voltage of the grid.
This new rotary field direction indicator can be used as a pointer can be used as a two-pin and Dreipol
Power supply: 4 AA batteries IEC LR6
This text is machine translated.

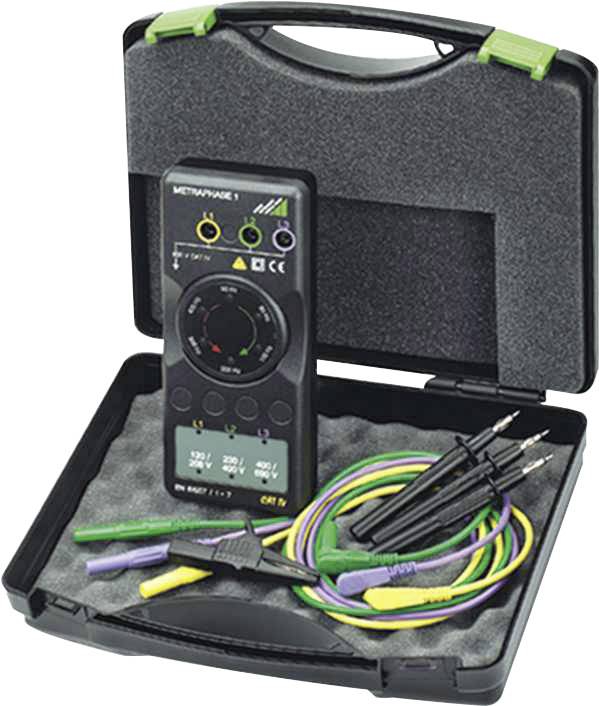

Scope of delivery
- 1 Rotating field direction indicator
- 3 attachable test leads with shock-proof plugs 600 V CAT IV 10 A
- 3 measuring tips for attaching to touch-protected plug 1000 V CAT IV 1A/1000 V CAT II, 32 A
- 1 alligator clip for attaching to a shock-proof plug 600 V CAT IV 19 A
- 4 batteries (AA)
- 1 operating instructions
- 1 transport bag.
