Gossen Metrawatt METRATESTER 5-F-E Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Highlights & Details

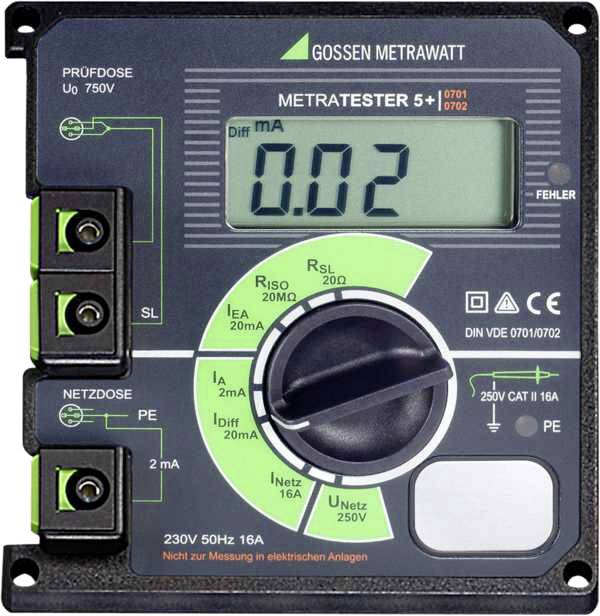

Device tester METRATESTER 5-F-E-mounted version
- Installation version to test panel or test case and test benches
Technical specifications
- Product type
Equipment tester
Manufacturer's standards (with certificate)
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Earth leakage current
Touch voltage
Voltage
Current
- DIN standard
DIN VDE 0701-0702
- Display type
Digital (LCD)
- Voltage supply
Mains
230 V/AC
- Type
METRATESTER 5-F-E
- VDE standard
0701-0702
- Features
incl. case
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1625638 Gossen Metrawatt METRATESTER 5-F-E Equipment tester VDE standard 0701-0702
Description
Device for testing electric safety of electric accessories according to DIN VDE 0701-0702.
This text is machine translated.
This text is machine translated.
Features
- Large digital LCD-display, check the power connection by finger contact and signal lamp differential current measurement: The measurement of differential current corresponds to the provision DIN VDE 0701-0702: 2008
- Display functions: All measured values are output on a large digital display can be read easily. In addition, a limit has been exceeded signalled visually and partially acoustically.
- Factory calibration certificate as standard
- Insulation Resistance 0... 19.99 m ohm
- Differential current 0.01.. 19.99 mA~
- Protective conductor resistance 0... 19.99 Ohm
- Leakage current 0 ... 19.99 mA AC
- Freedom from voltage 0... 1.999 mA AC
- Mains voltage 207 V ... 253 V AC
- Load current 0 ... 16.00 A AC
Scope of delivery
- 1 test device including power connection cable with earthing contact plug
- 1 Cable Set KS 17-4 for insulation and contact current measurement
- 1 operating instructions
- 1 Factory calibration certificate
