Name: Gossen Metrawatt METRISO INTRO-Set Insulation tester 250 V, 500 V, 1000 V 10 GΩ
Brand: Gossen Metrawatt
SKU: 1405728

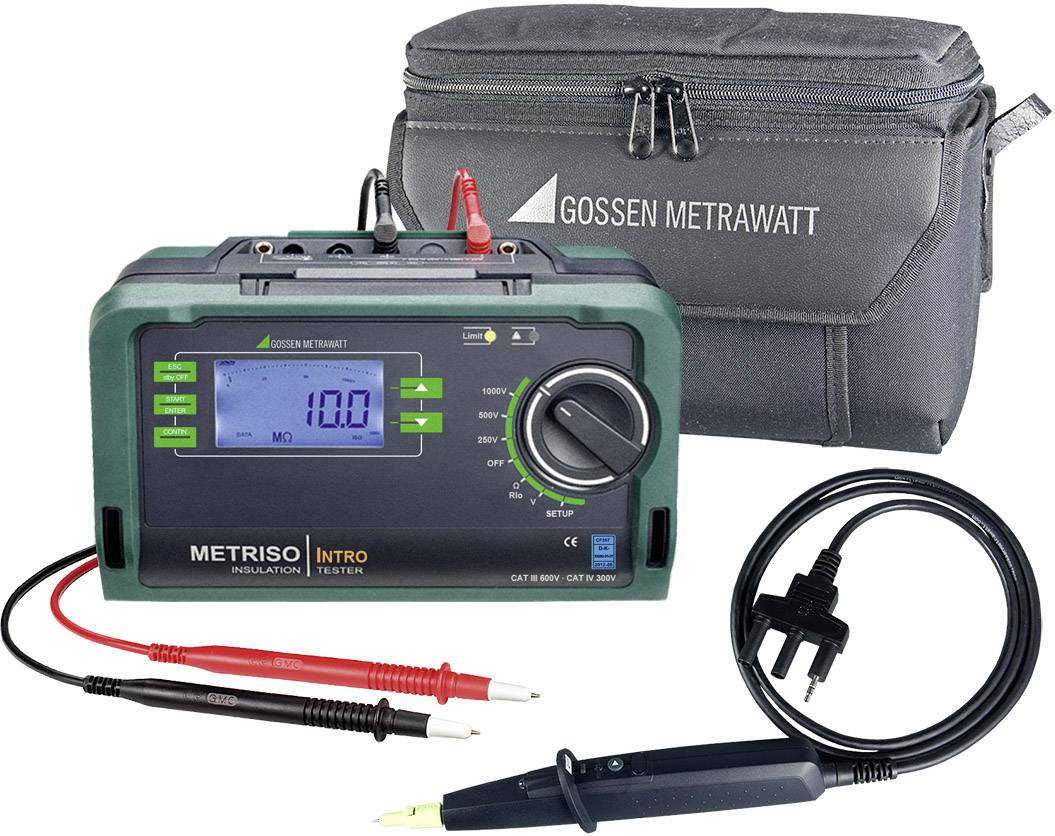

Digital insulation tester 'METRISO INTRO' with accessory bag, test leads and test probe. Measures insulation resistance up to 10 MΩ.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

METRISO INTRO set comprising of insulation measuring device, test probe for remote triggering and ready-bag, CAT III 600 V/CAT IV 300 V

Insulation measurement according to EN 61557-2/VDE 0413 Part 2
Low ohm measurement according to EN 61557-4/VDE 0413 Part 4
Intelligent Filter: measuring-dependent and precise activation at measurement of high-resistance
Digital and analogue display, backlit
LED
Acoustic signal when a threshold is exceeded
Surge protection protects the instrument in case of accidental connection to mains voltage
Fuse for all resistance measurement ranges
Electronic fuse for protection of the low ohm measurement RLO
Compact and robust for rough service inserts and laboratory mode
Voltage test and measurement up to 1000 V
Probe for remote triggering
Bag

Technical specifications

Insulation measuring device up to 1000 V, according to EN 61557-1/-2/-4/-10, natural uncertainty +/- (5% v.M. such + 3D) operation uncertainty of measurement +/- (7% v.M. such + 3D)
Low ohm measurement according to EN 61557-4/VDE 0413 Part 4 0.17 Ohm - 10 Ohm own uncertainty of +/- (2.5% v.M. such + 3D) operation uncertainty of measurement +/- (5% v.M. such + 3D)
Voltage measurement 10-1,000 V own uncertainty of +/- (2.5% v.M. such + 3D) operation uncertainty of measurement +/- (5% v.M. such + 3D)
Measurement category CAT III 600 V/CAT IV 300 V
Probe for remote triggering
Bag

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Power supply (details): 8 AA batteries (AA)

Dim: (L x W x H) 225 x 130 x 140 mm

Weight: 2.18 kg

Display type: Digital
Analogue

Insulation resistance (max.): 10 GΩ

Reading category: CAT III 600 V
CAT IV 300 V

Width: 130 mm

Height: 140 mm

Length: 225 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1405728 Gossen Metrawatt METRISO INTRO-Set Insulation tester 250 V, 500 V, 1000 V 10 GΩ

User & Safety Instructions

User & Safety Instructions 1405728 Gossen Metrawatt METRISO INTRO-Set Insulation tester 250 V, 500 V, 1000 V 10 GΩ

Description

Insulation measurement according to EN 61557-2/VDE 0413 Part 2 250 V, 500 V, 1,000 V · Low ohm measurement according to EN 61557-4/VDE 0413 Part 4 0.17 Ohm - 10 Ohm · Voltage measurement 10-1,000 V · Backlit display · Limit value-LED Limit (green/red) for:
In addition, acoustic signalling, limits according to VDE 0100 · LCD-symbol for external voltage · Battery status display · Discharge capacitive test objects · Safety shutdown (UBatt< 8V) · Measurement category CAT III 600 V/CAT IV 300 V · Probe for remote triggering · Bag
