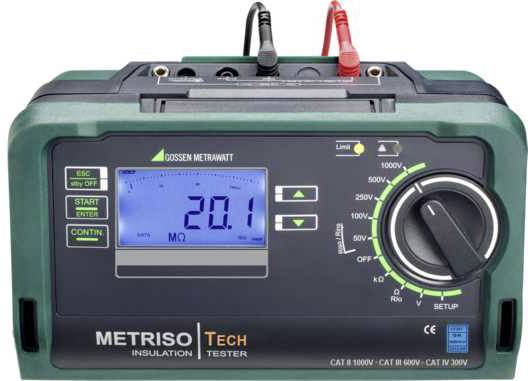

Digital insulation multimeter showing '20.1 MΩ', with a rotary dial for voltage selection (50V to 1000V) and cable connections.

Digital insulation multimeter showing '20.1 MΩ', with a rotary dial for voltage selection (50V to 1000V) and cable connections.

Gossen Metrawatt

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Insulation measuring instrument Metriso Tech

High-precision insulation, low ohm and voltage measuring device
Compact and robust, for rough service inserts and laboratory mode

Technical specifications

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance

: DAkkS standards

Interfaces: none

Power supply (details): 8 AA batteries (AA)

Dim: (L x W x H) 330 x 220 x 210 cm

Weight: 1.4 kg

Display type: Digital
Digital (LCD)

Insulation resistance (max.): 199 GΩ

Voltage reading range (max.): 1000 V

Voltage reading range (min.): 50 V

Reading category: CAT II 1000 V
CAT III 600 V
CAT IV 300 V

Width: 220 cm

Height: 210 cm

Length: 330 cm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Calibrated to

Test voltage

Gossen Metrawatt METRISO TECH Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V, 1000 V 199 GΩ

Item no:1625634

This article

DAkkS standards

50 V100 V250 V500 V1000 V

Gossen Metrawatt METRISO PRIME 10 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V 40 TΩ

Item no:1625569

Manufacturer's standards (no certificate)

50 V100 V250 V500 V1000 V2500 V5000 V10000 V

Gossen Metrawatt METRISO PRIME Insulation tester 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V 1 TΩ

Item no:1625573

Manufacturer's standards (no certificate)

100 V250 V500 V1000 V1500 V2000 V2500 V5000 V

Gossen Metrawatt METRISO PRIME Set Insulation tester 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V 1 TΩ

Item no:1625589

Manufacturer's standards (no certificate)

100 V250 V500 V1000 V1500 V2000 V2500 V5000 V

Gossen Metrawatt METRISO PRIME Insulation tester 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V 1 TΩ

Item no:1625635

Manufacturer's standards (no certificate)

100 V250 V500 V1000 V1500 V2000 V2500 V5000 V

Gossen Metrawatt METRISO PRIME Set Insulation tester 100 V, 250 V, 500 V, 1000 V, 1500 V, 2000 V, 2500 V, 5000 V 1 TΩ

Item no:1625636

Manufacturer's standards (no certificate)

100 V250 V500 V1000 V1500 V2000 V2500 V5000 V

Gossen Metrawatt METRISO BASE Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V 100 GΩ

Item no:1625766

DAkkS standards

50 V100 V250 V500 V

Gossen Metrawatt METRISO BASE - Set Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V 100 GΩ

Item no:1625767

DAkkS standards

50 V100 V250 V500 V

Gossen Metrawatt METRISO TECH - Set Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

Item no:1625768

DAkkS standards

50 V100 V250 V500 V1000 V

Documents & Downloads

Datasheet

Datasheet 1625634 Gossen Metrawatt METRISO TECH Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V, 1000 V 199 GΩ

User & Safety Instructions

User & Safety Instructions 1625634 Gossen Metrawatt METRISO TECH Insulation tester Calibrated to (DAkkS standards) 50 V, 100 V, 250 V, 500 V, 1000 V 199 GΩ

Description

With the insulation and low ohm measurement devices METRISO TECH you can quickly and rationally protective measures for electrical systems check:
DIN VDE 0100
Öve EN 1 (Austria)
NIV/NIN SEV 1000 (Switzerland)
And other country-specific regulations
Insulation measurement according to EN 61557-2/VDE 0413 Part 2
Low ohm measurement according to EN 61557-4/VDE 0413 Part 4
Voltage measurement up to 1000 V
Applications
The insulation measuring devices are suitable for the following tasks:
Measure the insulation resistance of the voltage-free devices and systems up to 1000 V
Check the resistance of the earthing, protective and equipotential bonding conductors
Review of the objects to be measured are voltage-free
Check the conductivity of floor coverings with regard to electrostatic charges (when using shielded test leads)-EN 1081.

This text is machine translated.

Features

Digital and analogue display, backlit
Intelligent Filter-measuring-dependent and pra-zise Zu-schaltung at measurement of Hoch-ohmi-gen resistors with: - sulfur glands, i.e. Compensation of 16 2/3 Hz and 50 Hz-Storungen-damping of capacitive influences among others. Zulei-Tungen-suppression of electric field influences
Signaling of hazardous voltage by LED
Acoustic Signalling when threshold cry,
External voltage detection switch is in the OFF position
Surge protection protects the instrument in case of accidental connection to mains voltage
Fuse for all resistance measurement ranges
New: electronic fuse for protection of the low ohm and resistance measurement RLO and R
Device with built-in self-test test resistance 10 MO according to EN 50110/VDE 0105-100
Measurements
Measuring ranges Riso 10k... 200 GOhm
Riso U = 50, 100, 250, 500 / 1000 V
R10 or similar. 10 kOhm
RLO 0.01... 10 Ohm
U0... 500 / 1000 V
Display Functions
Backlit display
Limit value-LED Limit (green/red) for: additional acoustic signalling, limits according to VDE 0100 riso, RLO
LED for beruhrungsgefahrl. Voltage (when switched off)
LCD-symbol for external voltage
Battery status display
Special functions
Discharge capacitive test objects
Safety shutdown (UBatt small 8V)
Measurement category CAT II 1000 V, III 600 V
Measurement category CAT III 600 V, IV 300 V
Integrated test resistance 10 MO
DAkkS calibration certificate included in delivery

Scope of delivery

1 Insulation and resistance measuring device
1 DAkkS Calibration Certificate
1 set of batteries.
One strap
1 alligator clip
1 Cable Set KS 17-4
1 Short operating instructions
1 Supplement Safety Information

Description

With the insulation and low ohm measurement devices METRISO TECH you can quickly and rationally protective measures for electrical systems check:
DIN VDE 0100
Öve EN 1 (Austria)
NIV/NIN SEV 1000 (Switzerland)
And other country-specific regulations
Insulation measurement according to EN 61557-2/VDE 0413 Part 2
Low ohm measurement according to EN 61557-4/VDE 0413 Part 4
Voltage measurement up to 1000 V
Applications
The insulation measuring devices are suitable for the following tasks:
Measure the insulation resistance of the voltage-free devices and systems up to 1000 V
Check the resistance of the earthing, protective and equipotential bonding conductors
Review of the objects to be measured are voltage-free
Check the conductivity of floor coverings with regard to electrostatic charges (when using shielded test leads)-EN 1081.

This text is machine translated.

Features

Digital and analogue display, backlit
Intelligent Filter-measuring-dependent and pra-zise Zu-schaltung at measurement of Hoch-ohmi-gen resistors with: - sulfur glands, i.e. Compensation of 16 2/3 Hz and 50 Hz-Storungen-damping of capacitive influences among others. Zulei-Tungen-suppression of electric field influences
Signaling of hazardous voltage by LED
Acoustic Signalling when threshold cry,
External voltage detection switch is in the OFF position
Surge protection protects the instrument in case of accidental connection to mains voltage
Fuse for all resistance measurement ranges
New: electronic fuse for protection of the low ohm and resistance measurement RLO and R
Device with built-in self-test test resistance 10 MO according to EN 50110/VDE 0105-100
Measurements
Measuring ranges Riso 10k... 200 GOhm
Riso U = 50, 100, 250, 500 / 1000 V
R10 or similar. 10 kOhm
RLO 0.01... 10 Ohm
U0... 500 / 1000 V
Display Functions
Backlit display
Limit value-LED Limit (green/red) for: additional acoustic signalling, limits according to VDE 0100 riso, RLO
LED for beruhrungsgefahrl. Voltage (when switched off)
LCD-symbol for external voltage
Battery status display
Special functions
Discharge capacitive test objects
Safety shutdown (UBatt small 8V)
Measurement category CAT II 1000 V, III 600 V
Measurement category CAT III 600 V, IV 300 V
Integrated test resistance 10 MO
DAkkS calibration certificate included in delivery

Scope of delivery

1 Insulation and resistance measuring device
1 DAkkS Calibration Certificate
1 set of batteries.
One strap
1 alligator clip
1 Cable Set KS 17-4
1 Short operating instructions
1 Supplement Safety Information
