Gossen Metrawatt PhaseCop 2 Rotating EMF indicator CAT III 600 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PhaseCop 2Rotary field indicator;
- Compliance with the device standard EN 61557/DIN VDE 0413
- Review of the phase sequence in three-phase systems
- Check for phase failure
- Large voltage and frequency range
- Robust design
Technical specifications
- Product type
Rotating EMF indicator
- Reading type
Rotating magnetic field
- Display
LED
- V AC reading range
690 V (max)
- Reading category
CAT III 600 V
IP50
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 38.5 x 70 x 105 mm
- Weight
300 g
- Max. frequency
1000 Hz
- Min. frequency
45 Hz
- Frequency range
45 Hz - 1000 Hz
- V AC reading range (max.)
690 V
- Width
70 mm
- Height
105 mm
- Length
38.5 mm
- Type
PhaseCop 2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1625734 Gossen Metrawatt PhaseCop 2 Rotating EMF indicator CAT III 600 V LED
User & Safety Instructions
User & Safety Instructions 1625734 Gossen Metrawatt PhaseCop 2 Rotating EMF indicator CAT III 600 V LED
Description
Nominal voltage range 100... 230/400 (up to 690 V max. 3 min)
Nominal frequency range 45... 1000 Hz
Rated insulation voltage 250 V against earth
Test voltage: 3 kV
Protection class II (protective insulation)
Measurement category 600 V CAT III
Protection class IP50
Plastic housing UL 94-V0
Dimensions 70 x 105 x 38.5 mm
Weight: 0.3 kg
This text is machine translated.
Nominal frequency range 45... 1000 Hz
Rated insulation voltage 250 V against earth
Test voltage: 3 kV
Protection class II (protective insulation)
Measurement category 600 V CAT III
Protection class IP50
Plastic housing UL 94-V0
Dimensions 70 x 105 x 38.5 mm
Weight: 0.3 kg
This text is machine translated.

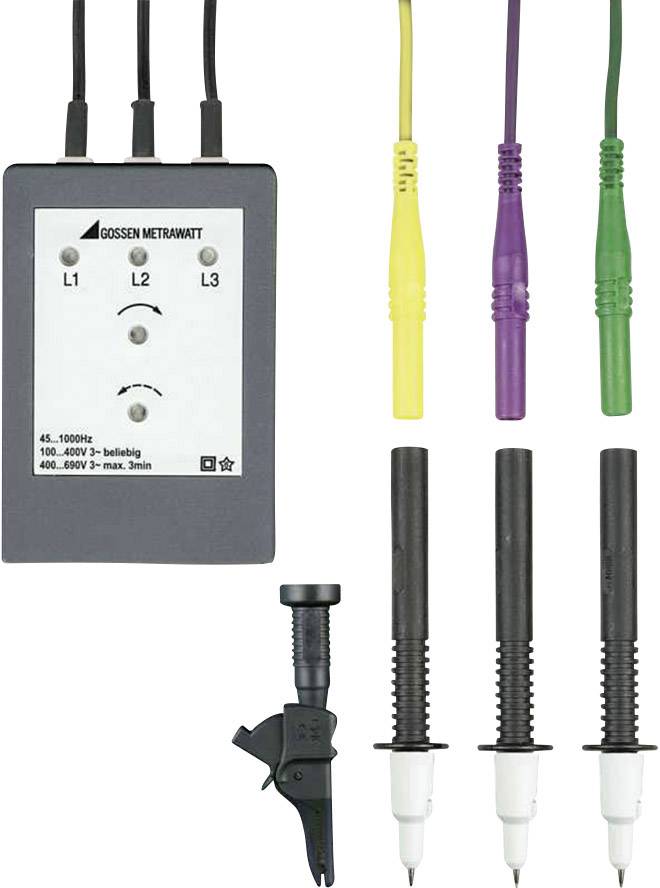

Scope of delivery
- 1 Rotating field direction indicator
- 1 Rotating field direction indicator
- 3 fixed connection cables with touch-protected connection plugs
- 3 attachable probes
- Each with the safety cap 600 V CAT III, 1 A
- 1 attachable alligator clip 1000 V CAT III, 16 A
