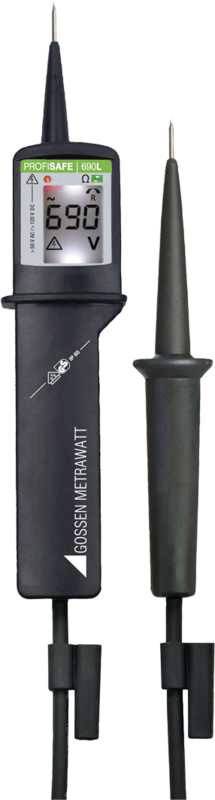

Gossen Metrawatt ProfiSafe 690L Two-pole voltage tester CAT III 690 V, CAT IV 600 V LCD, LED
EAN:
Part number:
Item no:
Highlights & Details
Voltage Tester Profisafe 690 L
- Voltage, Phase, Continuity, Polarity tester and rotary field direction indicator to 690 V AC/DC according to DIN EN 61243-3:2011/VDE 0682-401
- Digital display
- IP65
Technical specifications
- Product type
Two-pole voltage tester
- Reading type
Phase
Rotating magnetic field
Continuity
- Display
LCD
LED
- V AC reading range
12 up to 690 V
- V DC reading range
12 up to 690 V
- Load switching
4.2 mA
- Reading category
CAT III 690 V
CAT IV 600 V
IP65
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 37 x 48 x 231 mm
- Weight
170 g
- Max. frequency
500 Hz
- Min. frequency
0 Hz
- Frequency range
0 Hz - 500 Hz
- V AC reading range (max.)
690 V
- V AC reading range (min.)
12 V
- Voltage DC reading range (max.)
690 V
- Voltage reading range DC (min.)
12 V
- Width
48 mm
- Height
231 mm
- Length
37 mm
- Type
ProfiSafe 690L
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1625575 Gossen Metrawatt ProfiSafe 690L Two-pole voltage tester CAT III 690 V, CAT IV 600 V LCD, LED
Description
Voltage testing
Phase test
Polarity check
Rotating magnetic field indicator
Continuity testing
Measurement category CAT IV 600 V/CAT III 690 V
VDE-GS tested safety
Protection class IP65 - safe use even with moisture
Test voltage: 6 kV
Stosspannungsfestigkeit: 8 kV (1.2/50µs)
Technical characteristics:
Display 1 red LED for voltage, = 50 VAC/120VDC, 1 green LED for continuity, 1 Display (LCD) with background lighting
Measuring range continuously, DC:12... 690 V (± 3% +4 D), AC:12... 690 V (± 3% +4 D)
Input resistance approx. 167 kO, 200 kO AC/DC at 690 V AC/DC at 50 V
Frequency range 0 ... 500 Hz
Current peak value 4.2 mA at 690 V AC/DC
Duration 30 seconds at 690 V
Continuity test 0... 1000 kO
Measurement interval 2 s.
This text is machine translated.
Phase test
Polarity check
Rotating magnetic field indicator
Continuity testing
Measurement category CAT IV 600 V/CAT III 690 V
VDE-GS tested safety
Protection class IP65 - safe use even with moisture
Test voltage: 6 kV
Stosspannungsfestigkeit: 8 kV (1.2/50µs)
Technical characteristics:
Display 1 red LED for voltage, = 50 VAC/120VDC, 1 green LED for continuity, 1 Display (LCD) with background lighting
Measuring range continuously, DC:12... 690 V (± 3% +4 D), AC:12... 690 V (± 3% +4 D)
Input resistance approx. 167 kO, 200 kO AC/DC at 690 V AC/DC at 50 V
Frequency range 0 ... 500 Hz
Current peak value 4.2 mA at 690 V AC/DC
Duration 30 seconds at 690 V
Continuity test 0... 1000 kO
Measurement interval 2 s.
This text is machine translated.
Features
- Integrated Li-ion rechargeable battery, which is charged via mains voltage. Voltage testing even without a charged battery.
Scope of delivery
- 1 voltage and continuity tester
- 1 operating instructions
