Name: Gossen Metrawatt PROFiSIM 1 Training/demo kit VDE standard 0100-600
Brand: Gossen Metrawatt
SKU: 3790337

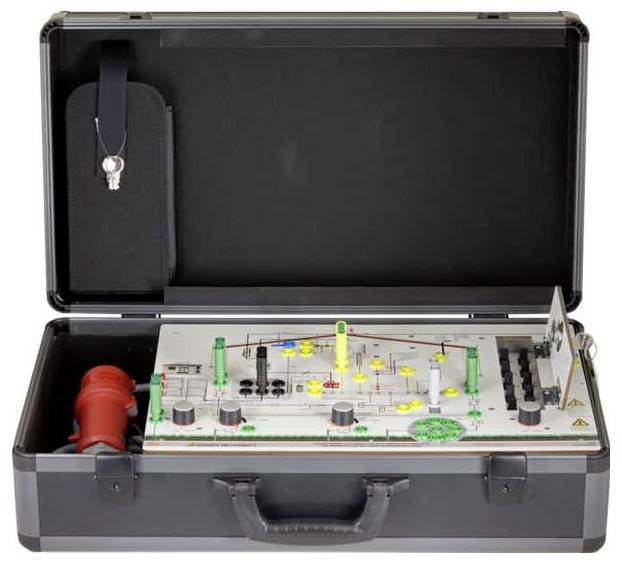

Open black carrying case holding an electronics training kit with a circuit board, components, controls, and a red tool inside.

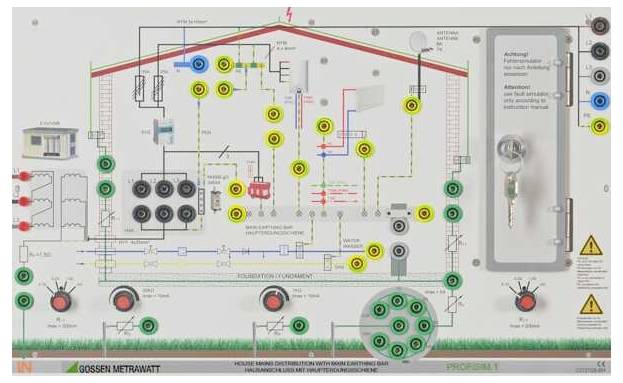

Electrical training panel showing a schematic wiring diagram with color-coded test points, switches, lamps, and a lockable cabinet on the right.

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Installation board "House connection with main earthing rail" for error simulation for testing the effectiveness of safety measures according to standards

Test contents:
Imitation of a house feed with main fuse
Imitation of the outer and inner lightning protection
Implementation of various network systems (TT, TN)
Main grounding rails with all important potential equalization wires and tape electrodes
Single and double fault circuit
Simulation of errors via switches
Lockable error simulator
Desk-shaped case
For use as a table device or in experimental frame

Technical specifications

Simulation of the external lightning protection
Simulation of the soil
Simulation of the help earth
Simulation of the earth probe
Simulation of the operating earth

Product type: Training/demo kit

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 297 x 456 x 80 mm

Weight: 2200 g

DIN standard: DIN VDE 0100

Width: 456 mm

Height: 80 mm

Length: 297 mm

Type: PROFiSIM 1

VDE standard: 0100-600

Documents & Downloads

Datasheet

Datasheet 3790337 Gossen Metrawatt PROFiSIM 1 Training/demo kit VDE standard 0100-600

User & Safety Instructions

User & Safety Instructions 3790337 Gossen Metrawatt PROFiSIM 1 Training/demo kit VDE standard 0100-600

Description

All measurements and tests can be carried out in conjunction with the measurement and testing devices of the PROFITEST Master/INTRO series. These are required for the safety tests in electrical systems up to 500 V with different network forms and protective measures.

This text is machine translated.
