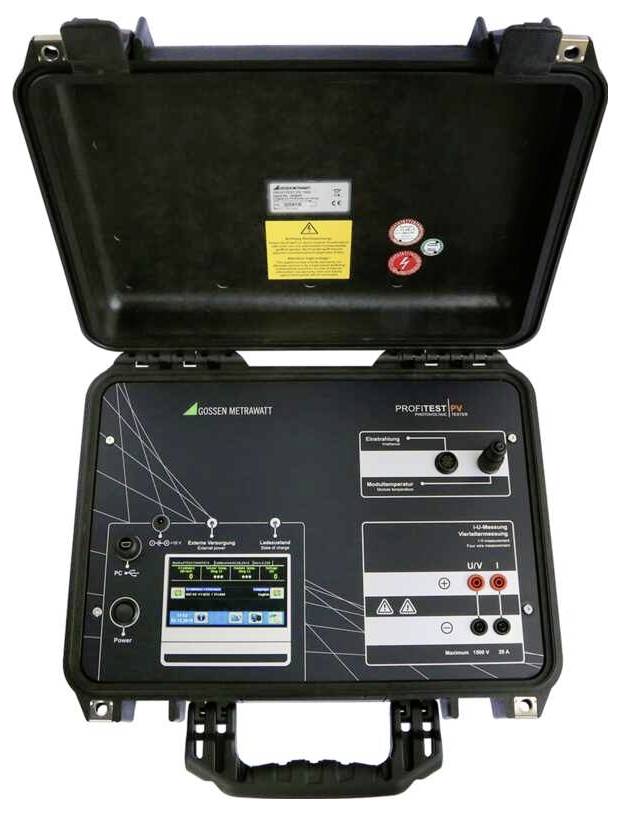

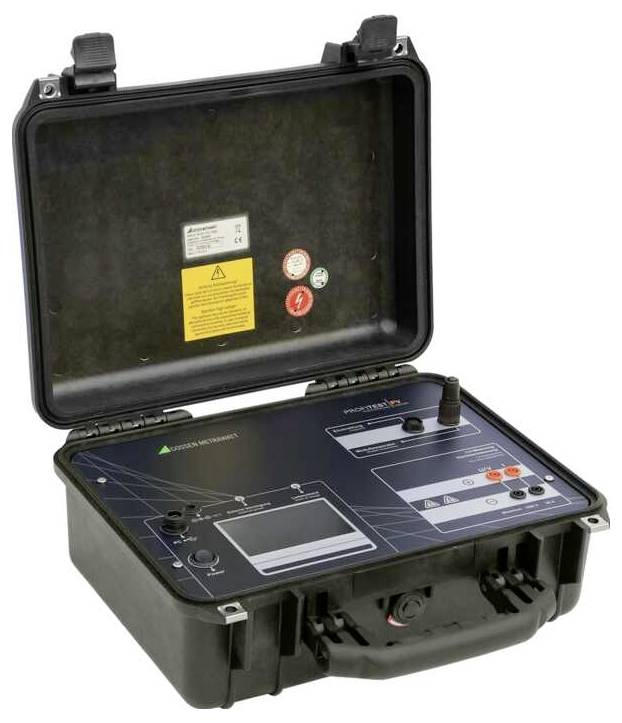

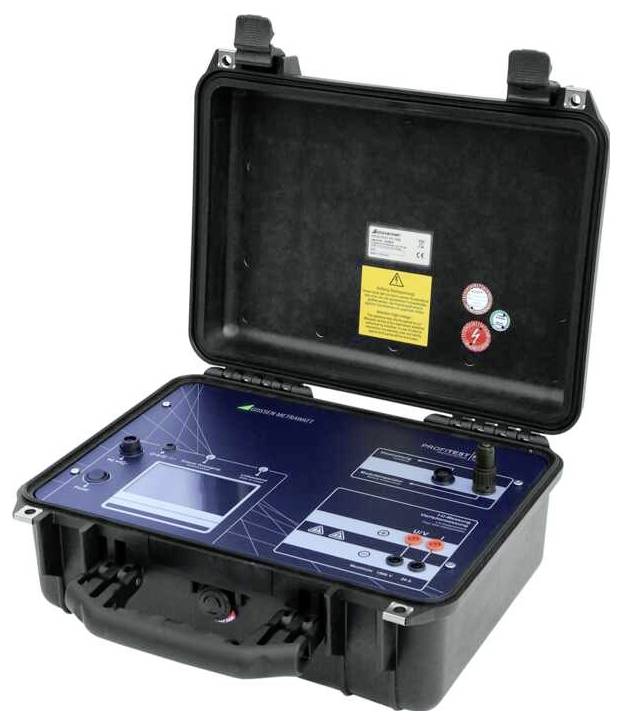

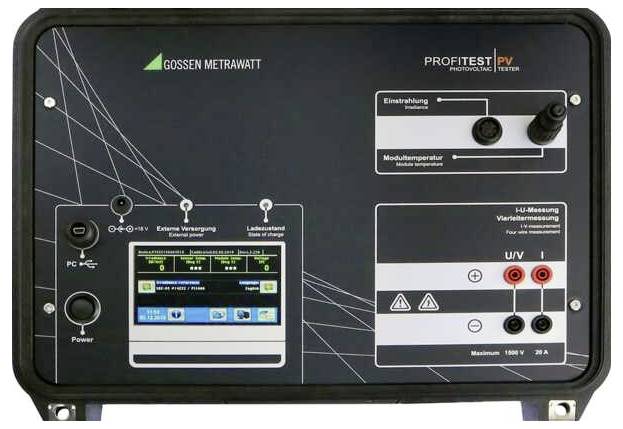

Gossen Metrawatt PROFITEST PV1500 PV tester
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Peak power and characteristic curve meter for photovoltaic systems
- Patented method: Determines peak power, series and parallel internal resistance with only one measurement.
- Module database: Large database and can be expanded at any time.
- Fast troubleshooting & documentation: Efficient during commissioning and subsequent checks.
- Advanced analysis: Characteristics provide additional insights for performance ratio and research
Technical specifications
- Measurement of I-U characteristic curves
- Peak performance
- Series resistor
- Parallel internal resistance
- Product type
PV tester
- Reading type
Voltage
Amperage
Manufacturer's standards (with certificate)
- Dim
(L x W x H) 175 x 406 x 330 mm
- Display
Graphical
- Weight
7600 g
- Width
406 mm
- Height
330 mm
- Length
175 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3790336 Gossen Metrawatt PROFITEST PV1500 PV tester
User & Safety Instructions
User & Safety Instructions 3790336 Gossen Metrawatt PROFITEST PV1500 PV tester
Description
CONNECT/START SWITCHING MEASUREMENT, READ-OUT-READY!
By means of a patented method, the tester can determine directly at the installation site the peak power, the series inner resistance and the parallel inner resistance "with only one measurement and without specification of the module data" and display it on the high-resolution touch-color graphic display suitable for sunlight.
Both the troubleshooting in a PV system and the documentation of the system quality are carried out quickly and economically without a long training period during commissioning and also during subsequent inspections.
This simple and meaningful test serves the security of the customer and saves the costs of the installer follow-up.
The measured peak power can also be used, for example, to determine the performance ratio. The collected characteristics also allow further information about the electrical properties of the measured module or string. Therefore the tester is also suitable as an instrument in research and development.
This text is machine translated.
By means of a patented method, the tester can determine directly at the installation site the peak power, the series inner resistance and the parallel inner resistance "with only one measurement and without specification of the module data" and display it on the high-resolution touch-color graphic display suitable for sunlight.
Both the troubleshooting in a PV system and the documentation of the system quality are carried out quickly and economically without a long training period during commissioning and also during subsequent inspections.
This simple and meaningful test serves the security of the customer and saves the costs of the installer follow-up.
The measured peak power can also be used, for example, to determine the performance ratio. The collected characteristics also allow further information about the electrical properties of the measured module or string. Therefore the tester is also suitable as an instrument in research and development.
This text is machine translated.
Scope of delivery
- Radiation reference sensor 10 m Connection cable; External Pt100 temperature sensor 10 m Connection cable; External safety cut-off switch 1500V/20A; 2 x 4-conductor measurement cable 10 m Length MC-4; External power supply, 60 W; Shielded mini USB cable; Case system for accessories; PC software: PV analyzer
