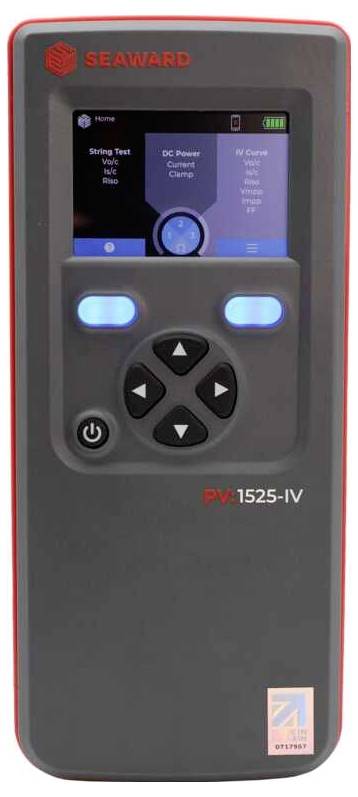

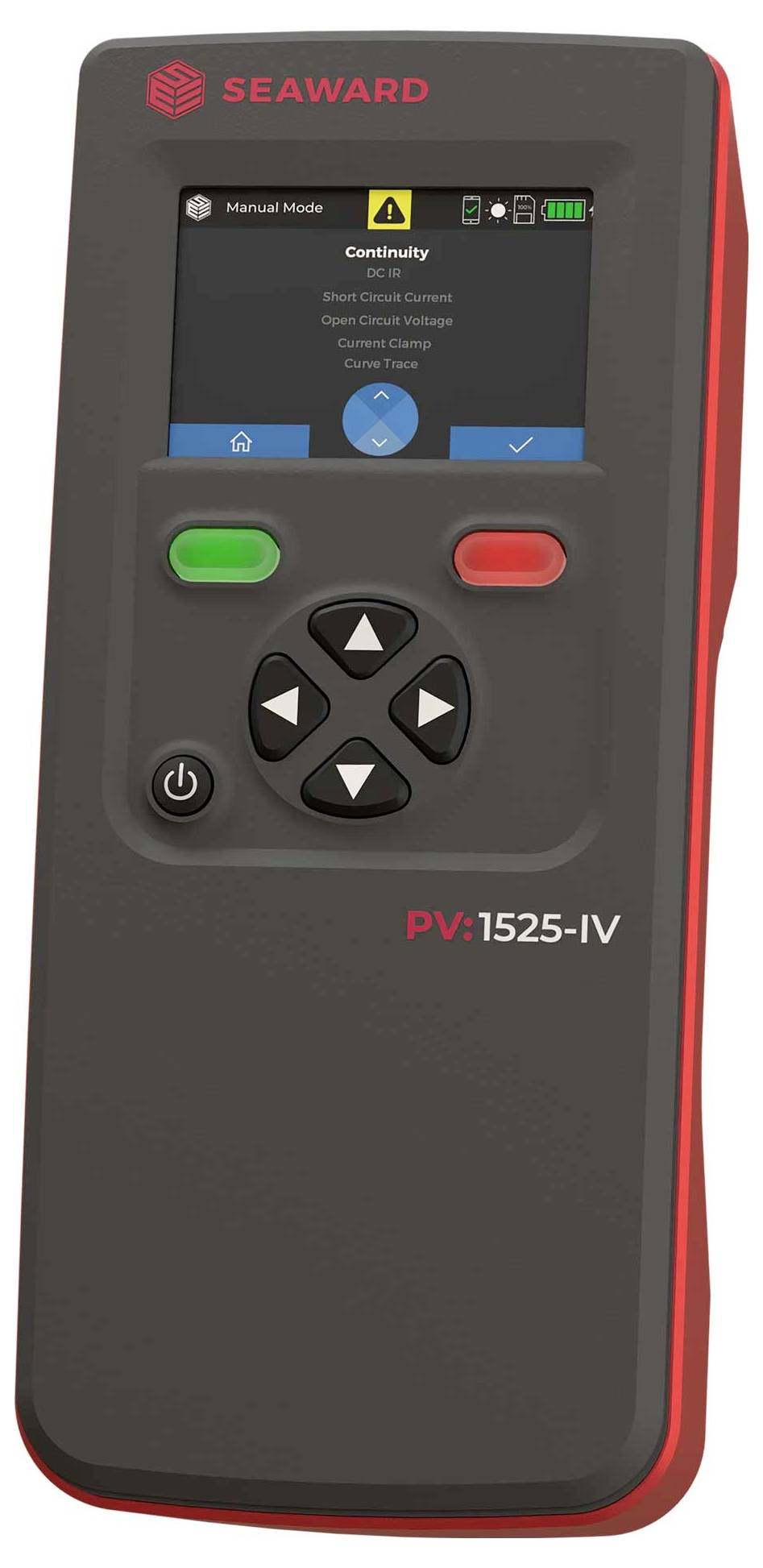

Gossen Metrawatt PV 1525-IV Package PV tester set
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Test device for the electrical safety and characteristics measurement of photovoltaic systems

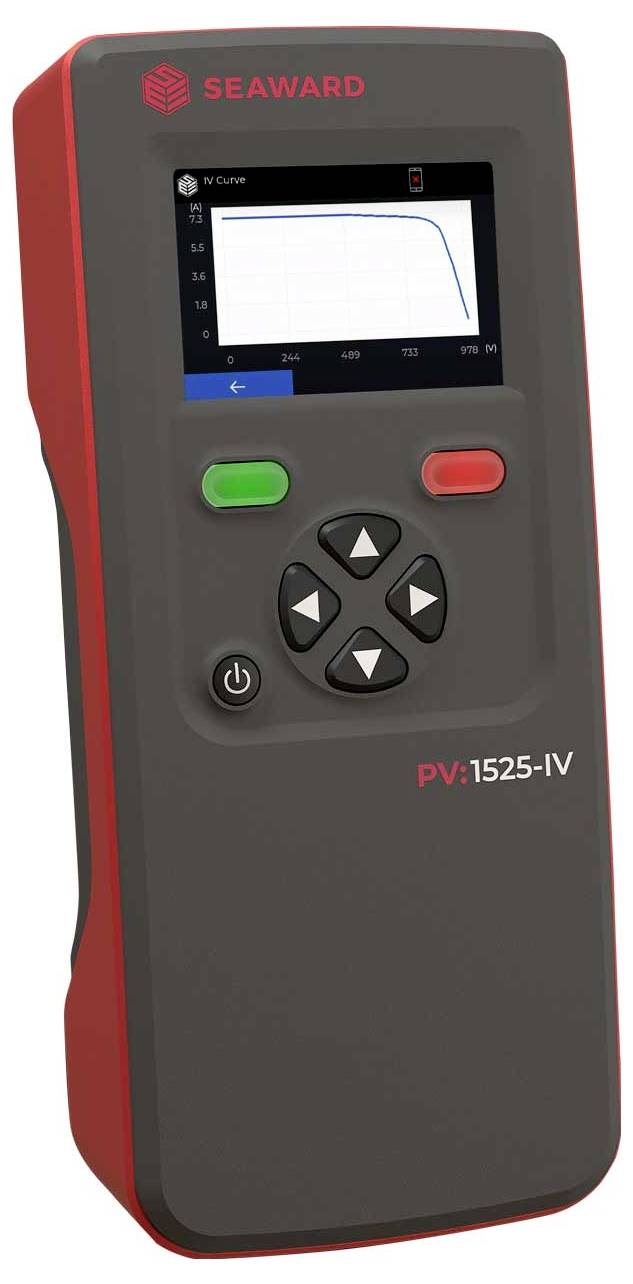

- The PV:1525-IV IV waveform tracking feature supports in-depth analysis of system performance.
- All-in-one test solution for modern private and commercial PV roof systems.
- Enables faster start-up by combining several test functions in a single handset.
- Reduces the number of devices that installers need to transport between the test sites on the roof.
- Bluetooth connectivity enables optimized data transfer and reporting.
- Compact, robust design designed for demanding on-site solar installation environments.
- Future-proof 1500 V DC capability to support developing high voltage PV installations.
- Improves traceability and conformity assurance during PV commissioning.
- Simplifies daily PV testing and reduces on-site setup time.
- Complete kit for immediate use in practice.
- Enables efficient electrical safety tests without having to switch between multiple devices.
- Internal storage and digital workflows reduce manual post-audit management.
Technical specifications
- Characteristic curve measurement
- Measurement of the PV string open-circuit voltage up to 1500 VDC
- PV string short circuit current up to 25 ADC
- Internal device memory for measurement results
- Software included
- Product type
PV tester set
- Reading type
Insulation resistance
Voltage
Amperage
Power
Resistance
Manufacturer's standards (with certificate)
- Dim
(L x W x H) 115 x 265 x 78 mm
- Display
OLED
- Weight
1 kg
- Reading category
CAT III 1500 V
- Width
265 mm
- Height
78 mm
- Length
115 mm
Documents & Downloads
Datasheet
Datasheet 3819821 Gossen Metrawatt PV 1525-IV Package PV tester set
User & Safety Instructions
User & Safety Instructions 3819821 Gossen Metrawatt PV 1525-IV Package PV tester set
Description
The new SEAWARD PV 1525-IV is the ideal handheld device for the electrical safety testing of photo-voltaic systems - no matter whether for domestic installations or for commercial installations. With 1500 V DC voltage measurement and 25 A measurement of the short-circuit current, you are also best equipped for future photovoltaic systems. In addition, this device offers the possibility for curve measurement (IV-Curve).
This text is machine translated.
This text is machine translated.
Scope of delivery

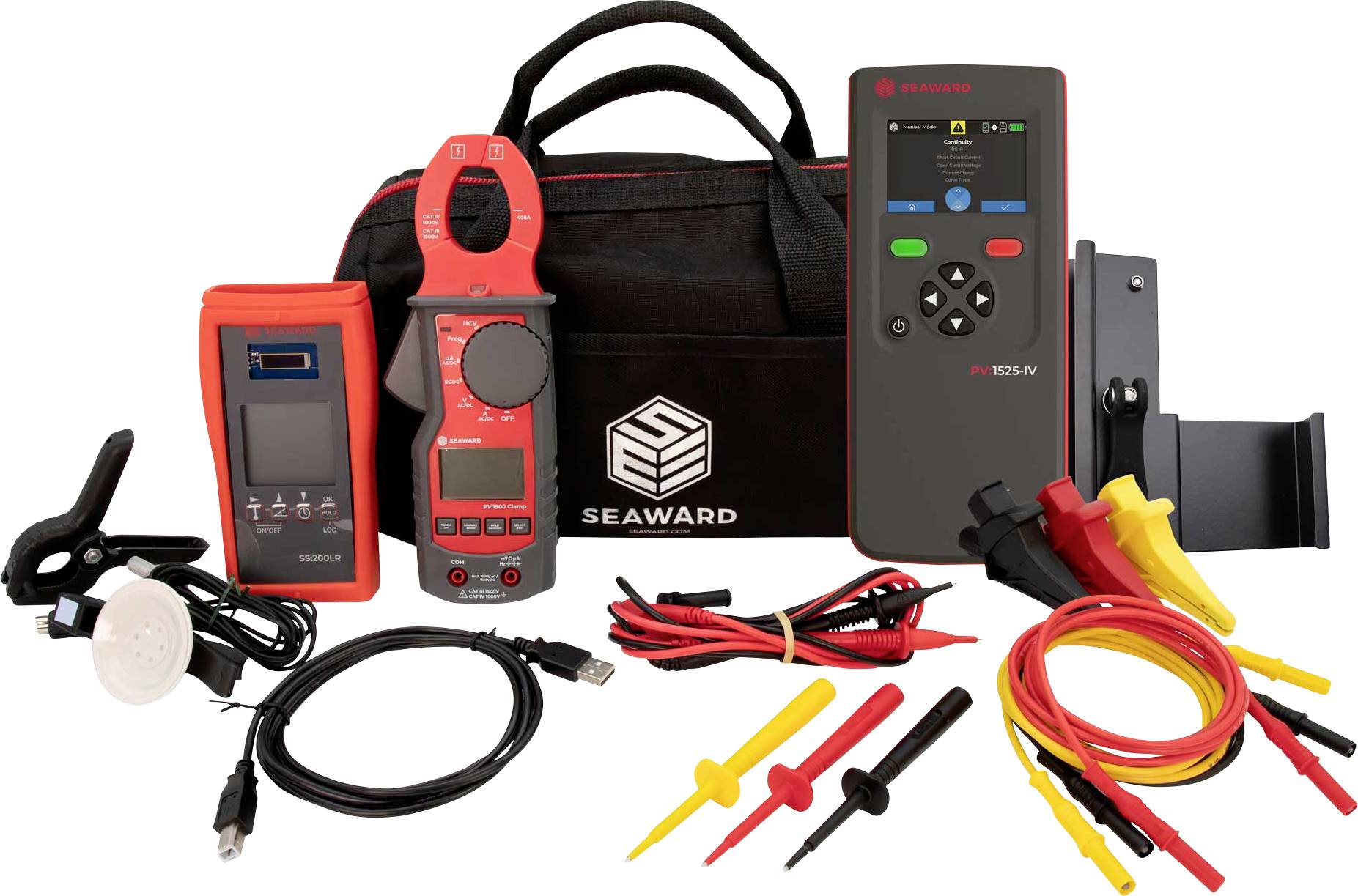

- PV:1525-IV;Set 4 mm test probes (red, yellow and black) with alligator clips;Set device-to-MC4 test cables (yellow and black);Rechargeable battery;Charger; Quick instructions PV:1525-IV;Calibration certificate PV:1525-IV;2 × Explanation (CE, UKCA);PV:1500 Clamp;SS:200LR Wireless Irradiance Meter;Solar Survey – panel mounting bracket with quick release fastener;Software;SolarCert (license)
