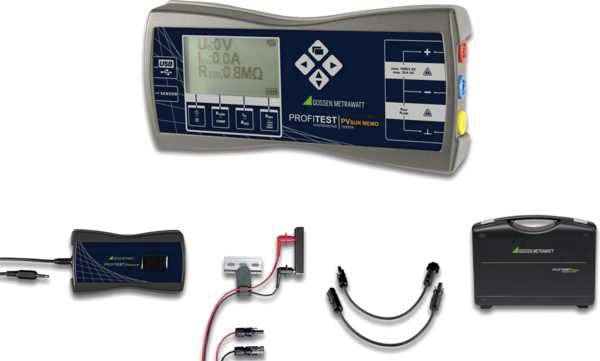

Gossen Metrawatt PV SUN PACKAGE Electrical tester set VDE standard 0126

With the PROFESSIONAL TEST PVsun memo can all required electrical Sicherheitspru-fun-gen at photovoltaic system easily, safely and as per the standard according to DIN EN 62446. The device is suitable for testing of PV-modules and strings up to max. 1,000 V/20 A. In addition to the insulation measurement, the polarity test, the universality of the earth-fault check can also be checked. The tester is characterised by its ergonomic design and easy handling with only 500 g weight.
Voltage measurement: 0 ... 1000 V DC
Current measurement (direct): 0 ... 20 A DC
Insulation resistance measurement, measurement range: 0 ... 20 MO, Test voltages: 250, 500, 1000 V DC
Ground-fault measurement: 0... 1000 V DC
Check for continuity of the earthing conductor: 0... 10 O/200 mA
Polarity check
Backlit LCD display
Compact and robust - for rough service inserts
Wide range of accessories.
DAkkS Calibration Certificate (optional)
The PVsun extension:
Bi-directional USB interface
Built-in memory (over 10,000 records)
PC-software for creating an individual test structures, as well as reading and evaluation of the measured values

This text is machine translated.
