Buy Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1

Current sensor with cable for energy monitoring, open clamp opening for attachment to a wire, square housing.

Small, black electric current sensor with cable, open housing, suitable for monitoring electrical lines.

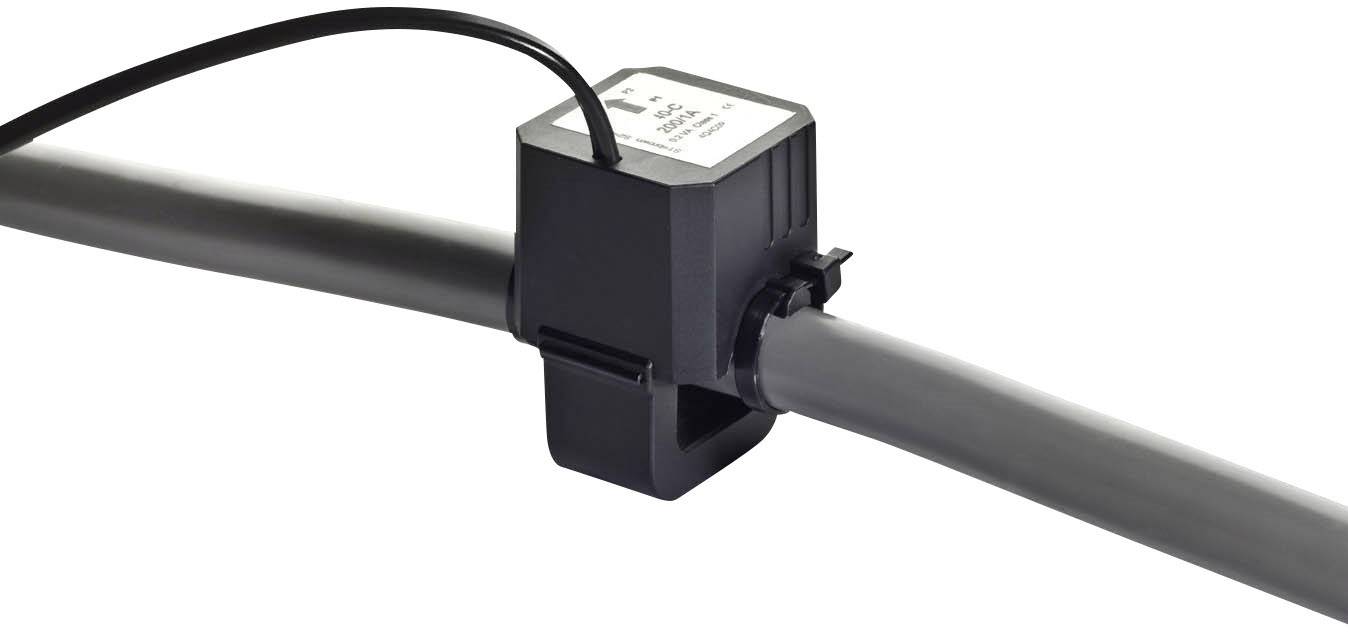

A black current sensor is mounted on a grey cable and measures the current flow. The cable and sensor are positioned horizontally.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Current transformer SC30 100/1 A 0,2VA cl.3 18 mm incl. cable

Input current (current) 100 A
Output current 1 A
Line feed-through diameter 18 mm

Technical specifications

100/1 A
Primary current 100 A
Secondary current 1 A
Output 0.2 VA
Connection cable connection
Accuracy class 3
Type SC 30 100/1 A 0,2VA cl.3
Weight 240 g
Width 35.6 mm
Height 50.4 mm
Line feed-Ø 18 mm

Product type: Cable current transformer

Fitting type: Flip mount

Primary current: 100 A

Secondary current: 1 A

: 0.2 VA

Line feed-through diameter: 18 mm

Type: SC30 100/1A 0,2VA Kl.3 18 mm

Dim: (L x W x H) 36 x 35.6 x 50.4 mm

Weight: 240 g

Output current: 1 A

Input current: 100 A

Width: 35.6 mm

Height: 50.4 mm

Length: 36 mm

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Secondary current

Product type

Line feed-through diameter

Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1344444

This article

100 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 60/1A 0,2VA Kl.3 18 mm U118A Cable current transformer Primary current 60 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344442

60 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 75/1A 0,2VA Kl.3 18 mm U118B Cable current transformer Primary current 75 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344443

75 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 125/1A 0,2VA Kl.3 18 mm U118D Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344445

125 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 150/1A 0,2VA Kl.3 18 mm U118E Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344446

150 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 200/1A 0,2VA Kl.1 18 mm U118F Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344447

200 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344448

250 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC40-B 100/1A 0,2VA Kl.1 18 mm U118H Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344449

100 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344450

125 A

0.2 VA

1 A

Cable current transformer

18 mm

Gossen Metrawatt SC40-B 150/1A 0,2VA Kl.1 18 mm U118J Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344451

150 A

0.2 VA

1 A

Cable current transformer

18 mm

Documents & Downloads

Datasheet

Datasheet 1344444 Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1

User & Safety Instructions

User & Safety Instructions 1344444 Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1

Description

Thanks to its compact design, the cable conversion current transformer particularly suitable for use in hard to reach places and with limited available space. The divisible core halves also make it easier to install at the cable or on the rail. Everywhere, where an interruption of the current path is problematic or a measuring device easily retrofitted, are cable conversion converter is the right choice. The safe installation of the primary cable in the current transformer is ensured by a clearly audible "click" confirmed. Two enclosed UV resistant cable ties to fix the converter in addition.
Environments
Installation in indoor areas.
Ambient temperatures - 10° C ... 55 °C
Bearing temperatures - 20 °C ... 70 °C
Relative humidity 5%... 85%, dew is excluded.
Pollution degree 2
Protection type IP20
Conditions of Use
Standard IEC 61869-2:2012
Thermal rated short-time current (Ith) 60 x Ipr/1s
Thermal rated continuous current (Icth) 100%
Rated insulation level 0,72/3/kV
Rated frequency 50/60 Hz
Insulation class E (120°C)
Housing Material PA 6.6, UL94: V2

This text is machine translated.

Scope of delivery

User manual
2x UV resistant cable ties for fastening
