Buy Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1

A black current sensor with cable, opened to enclose a cable. It is used for measuring electrical current.

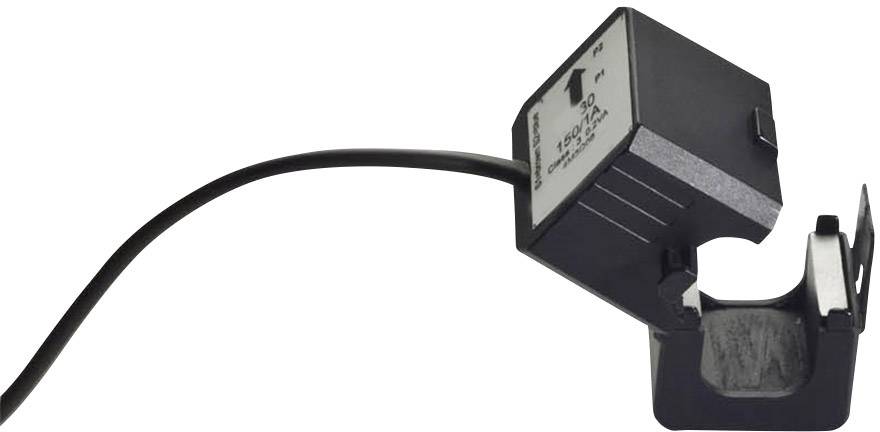

Black current sensor with cable, open housing for routing a cable for current measurement. Ideal for electrical monitoring systems.

Black sensor with cable, mounted on a bracket, for monitoring or measurement. Suitable for industrial applications.

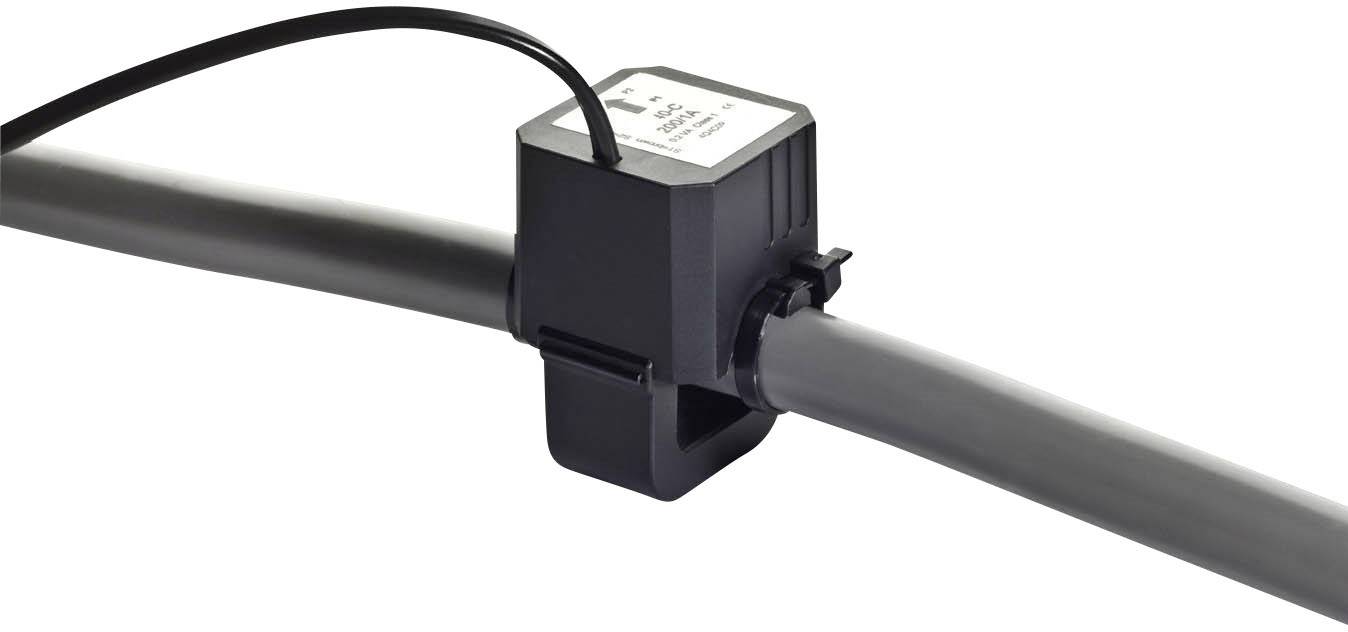

A black current sensor is clamped around a grey cable. It measures the electrical current flow in the line.

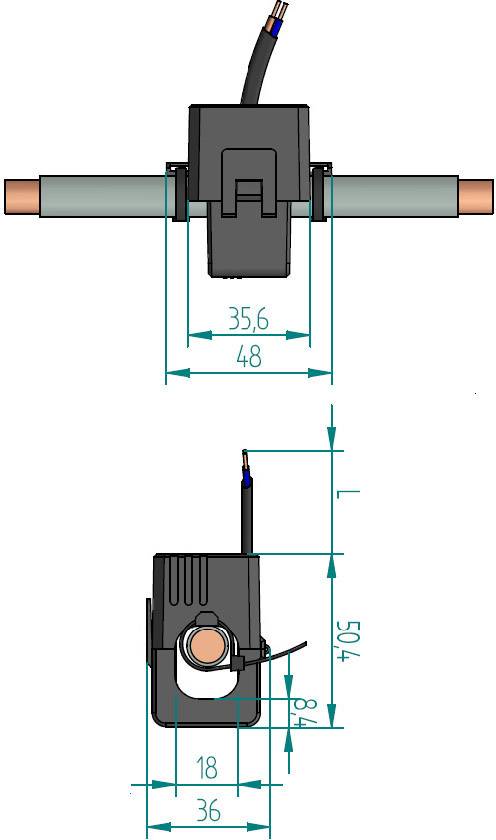

Dimensional diagram of an electrical component with measurements: 48 mm width, 35.6 mm height from the front; 36 mm width, 78 mm total height from the side.

1/5

Datasheet (PDF)

Unavailable

14 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

A 250/1
Primary current 250 A
Secondary current 1 A
Output 0.2 VA
Connection cable connection
Accuracy class 1
Type SC 30 250/1 A 0,2VA Cl. 1
Weight 240 g
Width 35.6 mm
Height 50.4 mm
Line feed-Ø 18 mm

Product type: Cable current transformer

Primary current: 250 A

Secondary current: 1 A

Type: SC30 250/1A 0,2VA Kl.1 18 mm

Dim: (L x W x H) 36 x 35.6 x 50.4 mm

Weight: 240 g

Width: 35.6 mm

Height: 50.4 mm

Length: 36 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Secondary current

Product type

Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1 A 1 pc(s)

Item no:1344448

This article

250 A

1 A

Cable current transformer

Gossen Metrawatt SC30 60/1A 0,2VA Kl.3 18 mm U118A Cable current transformer Primary current 60 A Secondary current 1 A 1 pc(s)

Item no:1344442

60 A

1 A

Cable current transformer

Gossen Metrawatt SC30 75/1A 0,2VA Kl.3 18 mm U118B Cable current transformer Primary current 75 A Secondary current 1 A 1 pc(s)

Item no:1344443

75 A

1 A

Cable current transformer

Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1 A 1 pc(s)

Item no:1344444

100 A

1 A

Cable current transformer

Gossen Metrawatt SC30 125/1A 0,2VA Kl.3 18 mm U118D Cable current transformer Primary current 125 A Secondary current 1 A 1 pc(s)

Item no:1344445

125 A

1 A

Cable current transformer

Gossen Metrawatt SC30 150/1A 0,2VA Kl.3 18 mm U118E Cable current transformer Primary current 150 A Secondary current 1 A 1 pc(s)

Item no:1344446

150 A

1 A

Cable current transformer

Gossen Metrawatt SC30 200/1A 0,2VA Kl.1 18 mm U118F Cable current transformer Primary current 200 A Secondary current 1 A 1 pc(s)

Item no:1344447

200 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 100/1A 0,2VA Kl.1 18 mm U118H Cable current transformer Primary current 100 A Secondary current 1 A 1 pc(s)

Item no:1344449

100 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344450

125 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 150/1A 0,2VA Kl.1 18 mm U118J Cable current transformer Primary current 150 A Secondary current 1 A 1 pc(s)

Item no:1344451

150 A

1 A

Cable current transformer

Documents & Downloads

Datasheet

Datasheet 1344448 Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1

User & Safety Instructions

User & Safety Instructions 1344448 Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1

Description

Thanks to its compact design, the cable conversion current transformer particularly suitable for use in hard to reach places and with limited available space. The divisible core halves also make it easier to install at the cable or on the rail. Everywhere, where an interruption of the current path is problematic or a measuring device easily retrofitted, are cable conversion converter is the right choice. The safe installation of the primary cable in the current transformer is ensured by a clearly audible "click" confirmed. Two enclosed UV resistant cable ties to fix the converter in addition.
Environments
Installation in indoor areas.
Ambient temperatures - 10° C ... 55 °C
Bearing temperatures - 20 °C ... 70 °C
Relative humidity 5%... 85%, dew is excluded.
Pollution degree 2
Protection type IP20
Conditions of Use
Standard IEC 61869-2:2012
Thermal rated short-time current (Ith) 60 x Ipr/1s
Thermal rated continuous current (Icth) 100%
Rated insulation level 0,72/3/kV
Rated frequency 50/60 Hz
Insulation class E (120°C)
Housing Material PA 6.6, UL94: V2

This text is machine translated.

Scope of delivery

User manual
2x UV resistant cable ties for fastening
