Buy Gossen Metrawatt SC50-E 800/1A 0,5VA Kl.0,5 42 mm U142G Cable current transformer Primary current 800 A Secondary curren

Black, right-angled device with an open square at the bottom and cable at the top, possibly an electrical sensor or transformer.

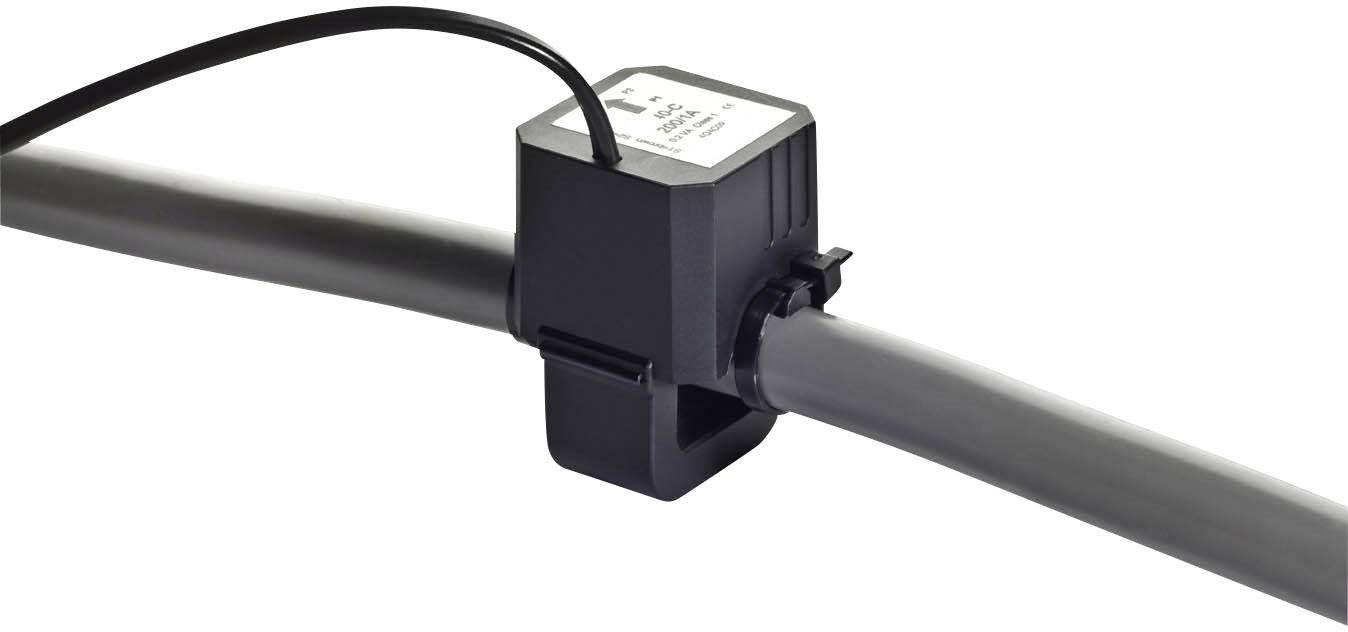

A black sensor is attached to a grey pipe, presumably for monitoring or measuring liquid or gas flow.

Gossen Metrawatt SC50-E 800/1A 0,5VA Kl.0,5 42 mm U142G Cable current transformer Primary current 800 A Secondary curren-2

1/3

Datasheet (PDF)

Unavailable

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

800/1 A
Primary current 800 A
Secondary current 1 A
Power 0.5 VA
Connection cable connection
Accuracy class 0.5
Type SC50-E 800/1 A 0,5VA class 0.5
Weight 450 g
Width 54.6 mm
Height 97 mm
Line feed-Ø 42 mm

Product type: Cable current transformer

Primary current: 800 A

Secondary current: 1 A

Type: SC50-E 800/1A 0,5VA Kl.0,5 42 mm

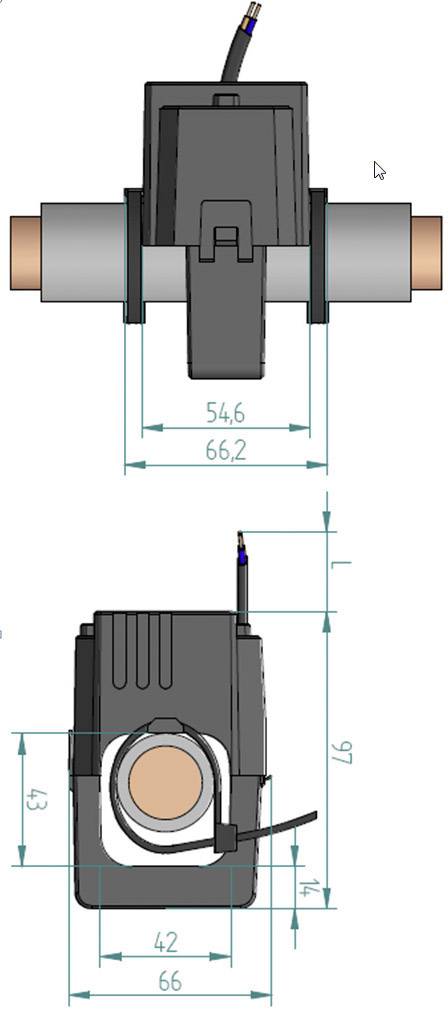

Dim: (L x W x H) 66 x 54.6 x 97 mm

Weight: 450 g

Width: 54.6 mm

Height: 97 mm

Length: 66 mm

Variants(All information is without VAT, plus shipping costs)

Primary current

Secondary current

Product type

Gossen Metrawatt SC30 60/1A 0,2VA Kl.3 18 mm U118A Cable current transformer Primary current 60 A Secondary current 1 A 1 pc(s)

Item no:1344442

60 A

1 A

Cable current transformer

Gossen Metrawatt SC30 75/1A 0,2VA Kl.3 18 mm U118B Cable current transformer Primary current 75 A Secondary current 1 A 1 pc(s)

Item no:1344443

75 A

1 A

Cable current transformer

Gossen Metrawatt SC30 100/1A 0,2VA Kl.3 18 mm U118C Cable current transformer Primary current 100 A Secondary current 1 A 1 pc(s)

Item no:1344444

100 A

1 A

Cable current transformer

Gossen Metrawatt SC30 125/1A 0,2VA Kl.3 18 mm U118D Cable current transformer Primary current 125 A Secondary current 1 A 1 pc(s)

Item no:1344445

125 A

1 A

Cable current transformer

Gossen Metrawatt SC30 150/1A 0,2VA Kl.3 18 mm U118E Cable current transformer Primary current 150 A Secondary current 1 A 1 pc(s)

Item no:1344446

150 A

1 A

Cable current transformer

Gossen Metrawatt SC30 200/1A 0,2VA Kl.1 18 mm U118F Cable current transformer Primary current 200 A Secondary current 1 A 1 pc(s)

Item no:1344447

200 A

1 A

Cable current transformer

Gossen Metrawatt SC30 250/1A 0,2VA Kl.1 18 mm U118G Cable current transformer Primary current 250 A Secondary current 1 A 1 pc(s)

Item no:1344448

250 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 100/1A 0,2VA Kl.1 18 mm U118H Cable current transformer Primary current 100 A Secondary current 1 A 1 pc(s)

Item no:1344449

100 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 125/1A 0,2VA Kl.1 18 mm U118I Cable current transformer Primary current 125 A Secondary current 1 A Line feed-through diameter:18 mm 1 pc(s)

Item no:1344450

125 A

1 A

Cable current transformer

Gossen Metrawatt SC40-B 150/1A 0,2VA Kl.1 18 mm U118J Cable current transformer Primary current 150 A Secondary current 1 A 1 pc(s)

Item no:1344451

150 A

1 A

Cable current transformer

Documents & Downloads

Datasheet

Datasheet 1344465 Gossen Metrawatt SC50-E 800/1A 0,5VA Kl.0,5 42 mm U142G Cable current transformer Primary current 800 A Secondary curren

User & Safety Instructions

User & Safety Instructions 1344465 Gossen Metrawatt SC50-E 800/1A 0,5VA Kl.0,5 42 mm U142G Cable current transformer Primary current 800 A Secondary curren

Description

Thanks to its compact design, the cable conversion current transformer particularly suitable for use in hard to reach places and with limited available space. The divisible core halves also make it easier to install at the cable or on the rail. Everywhere, where an interruption of the current path is problematic or a measuring device easily retrofitted, are cable conversion converter is the right choice. The safe installation of the primary cable in the current transformer is ensured by a clearly audible "click" confirmed. Two enclosed UV resistant cable ties to fix the converter in addition.
Environments
Installation in indoor areas.
Ambient temperatures - 10° C ... 55 °C
Bearing temperatures - 20 °C ... 70 °C
Relative humidity 5%... 85%, dew is excluded.
Pollution degree 2
Protection type IP20
Conditions of Use
Standard IEC 61869-2:2012
Thermal rated short-time current (Ith) 60 x Ipr/1s
Thermal rated continuous current (Icth) 100%
Rated insulation level 0,72/3/kV
Rated frequency 50/60 Hz
Insulation class E (120°C)
Housing Material PA 6.6, UL94: V2

This text is machine translated.

Scope of delivery

User manual
2x UV resistant cable ties for fastening
