Buy Gossen Metrawatt SC50-L, 500/1A, 0,5VA, Kl 0,5 U184D LV current transformer Primary current 500 A Secondary current 1 A

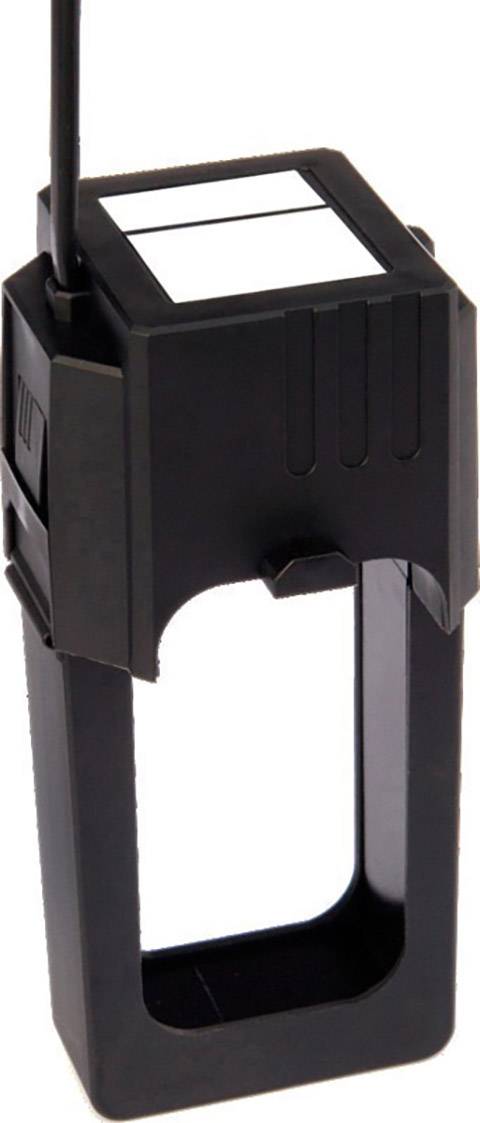

A black rectangular plastic frame with a white label attached at the top. It has no apparent purpose.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable conversion current transformer type SC50-L, 500/1 A, 0,5VA, KL 0.5

Input current (current) 500 A
Output current 1 A
Line feed-through diameter 42 mm

Technical specifications

Primary current: 500A
Secondary current: 1 A
Load: 0.5 V/A
Secondary conductor: 5 m, 0.5 mm².

Product type: LV current transformer

Primary current: 500 A

Secondary current: 1 A

: 0.5 VA

Line feed-through diameter: 42 mm

Accuracy class: 0.5

Type: SC50-L, 500/1A, 0,5VA, Kl 0,5

Dim: (L x W x H) 66.2 x 66 x 139 mm

Output current: 1 A

Input current: 500 A

Line feed-through (W): 42 mm

Line feed-through (H x W): 42 x 42 mm

Line feed-through (H): 42 mm

Width: 66 mm

Height: 139 mm

Length: 66.2 mm

Variants(All information is without VAT, plus shipping costs)

Primary current

Secondary current

Gossen Metrawatt SC50-L, 500/1A, 0,5VA, Kl 0,5 U184D LV current transformer Primary current 500 A Secondary current 1 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm 1 pc(s)

Item no:1761392

This article

500 A

1 A

Gossen Metrawatt SC50-L, 250/1A, 0,5VA, Kl1 U184A LV current transformer Primary current 250 A Secondary current 1 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm 1 pc(s)

Item no:1761377

250 A

1 A

Gossen Metrawatt SC50-L, 1000/1A, 0,5VA, Kl 0,5 U184H LV current transformer Primary current 1000 A Secondary current 1 A Line feed-through diameter:42 mm 1 pc(s)

Item no:1761379

1000 A

1 A

Gossen Metrawatt SC50-L, 750/5A, 0,5VA, Kl 0,5 U584E LV current transformer Primary current 750 A Secondary current 5 A Line feed-through diameter:42 mm Flip mount 1 pc(s)

Item no:1761380

750 A

5 A

Gossen Metrawatt SC50-L, 800/5A, 0,5VA, Kll 0,5 U584F LV current transformer Primary current 800 A Secondary current 5 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm Flip mount 1 pc(s)

Item no:1761381

800 A

5 A

Gossen Metrawatt SC50-L, 750/1A, 0,5VA, Kl 0,5 U184F LV current transformer Primary current 750 A Secondary current 1 A Line feed-through diameter:42 mm 1 pc(s)

Item no:1761383

750 A

1 A

Gossen Metrawatt SC50-L, 800/1A, 0,5VA, Kl 0,5 U184G LV current transformer Primary current 800 A Secondary current 1 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm 1 pc(s)

Item no:1761384

800 A

1 A

Gossen Metrawatt SC50-L, 300/5A, 0,5VA, Kl1 U584A LV current transformer Primary current 300 A Secondary current 5 A Line feed-through diameter:42 mm 1 pc(s)

Item no:1761385

300 A

5 A

Gossen Metrawatt SC50-L, 600/5A, 0,5VA, Kl 0,5 U584D LV current transformer Primary current 600 A Secondary current 5 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm Flip mount 1 pc(s)

Item no:1761386

600 A

5 A

Gossen Metrawatt SC50-L, 1000/5A, 0,5VA, Kl 0,5 U584G LV current transformer Primary current 1000 A Secondary current 5 A Line feed-through (H x W):42 x 42 mm Line feed-through diameter:42 mm Flip mount 1 pc(s)

Item no:1761387

1000 A

5 A

Documents & Downloads

Datasheet

Datasheet 1761392 Gossen Metrawatt SC50-L, 500/1A, 0,5VA, Kl 0,5 U184D LV current transformer Primary current 500 A Secondary current 1 A

User & Safety Instructions

User & Safety Instructions 1761392 Gossen Metrawatt SC50-L, 500/1A, 0,5VA, Kl 0,5 U184D LV current transformer Primary current 500 A Secondary current 1 A

Description

Cable conversion converter SC50-L for primary currents of 250A to 1000A.
Thanks to the cable conversion converter SC50-L is the installation of measuring devices now even easier. Because of its compact design, the cable conversion current transformer particularly suitable for use in hard to reach places and with limited available space. The divisible core halves also make it easier to install at the cable or on the rail. Everywhere, where an interruption of the current path is problematic or a measuring device easily retrofitted, are cable conversion converter is the right choice. The safe installation of the primary cable in the current transformer is ensured by a clearly audible "click" confirmed. Two enclosed UV resistant cable ties to fix the converter in addition.

This text is machine translated.

Features

Cable opening: max. Ø 42 mm
Length and cross-section of the secondary cable: 5 m, 0.5 mm²
Primary current: 500A
Secondary current: 1 A

Scope of delivery

1 x cable conversion converter SC 50-L
