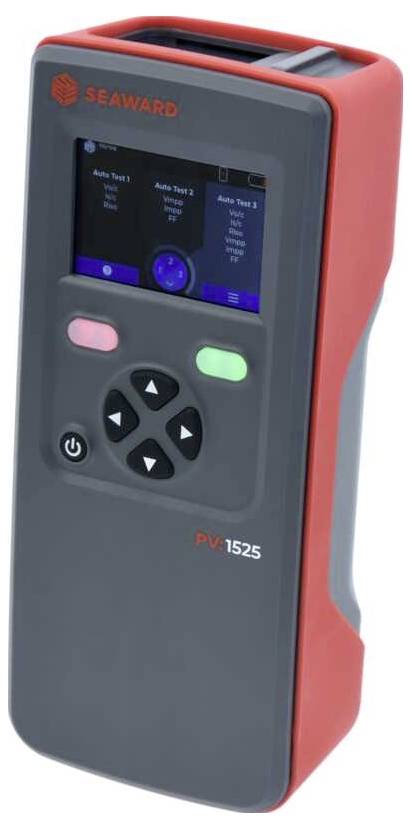

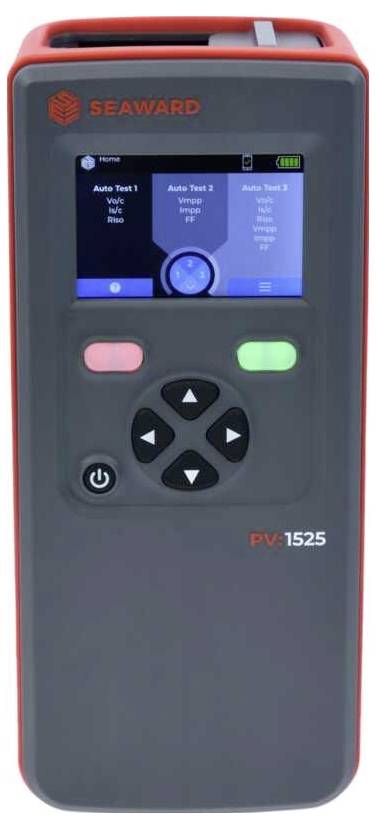

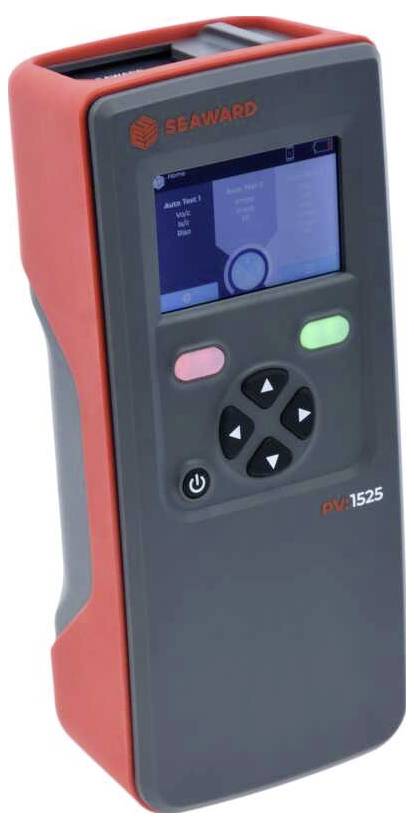

Gossen Metrawatt SEAWARD PV:1525 PV analyser VDE standard 0126
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Test device for the electrical safety of photovoltaic systems
- Measurement of the open-circuit voltage Uoc up to 1500 V DC
- Measures the short-circuit current ISC up to 25 A.
- Insulation resistance voltage up to 1500 V DC
- Measurement of the low-ohm continuity with 200 mA
- Intuitive and user-friendly menu navigation
- Compact, mobile and light weight – Ideal for on-site use
- Bluetooth interface for updates
Technical specifications
- Product type
PV analyser
Manufacturer's standards (with certificate)
- Interfaces
Bluetooth®
- Dim
(L x W x H) 115 x 265 x 78 mm
- Weight
1 kg
IP40
- Reading range (VDE)
Voltage
Insulation resistance
Power
Current
- DIN standard
DIN VDE 0126
- Display type
Digital (OLED)
- Width
265 mm
- Height
78 mm
- Length
115 mm
- Memory (space)
1000
- Memory
Yes
- Type
SEAWARD PV:1525
- VDE standard
0126
- Features
incl. software
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3730884 Gossen Metrawatt SEAWARD PV:1525 PV analyser VDE standard 0126
User & Safety Instructions
User & Safety Instructions 3730884 Gossen Metrawatt SEAWARD PV:1525 PV analyser VDE standard 0126
Description
The new SEAWARD PV:1525 is the ideal hand-held device for the electrical safety tests on photovoltaic systems – no matter whether for domestic installations or for commercial installations. With 1500 V DC voltage measurement and 25 A measurement of the short-circuit current, you are also best equipped for future photovoltaic systems.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Set of 4 mm probes (red, yellow and black) with alligator clips; set device-to-MC4 test cables (yellow and black); rechargeable battery; charging tray; quick guide; calibration certificate, Statement (CE, UKCA)
- 1 × SolarCert (Software License)
