Buy Gossen Metrawatt SECULIFE DP BASE Pressure gauge

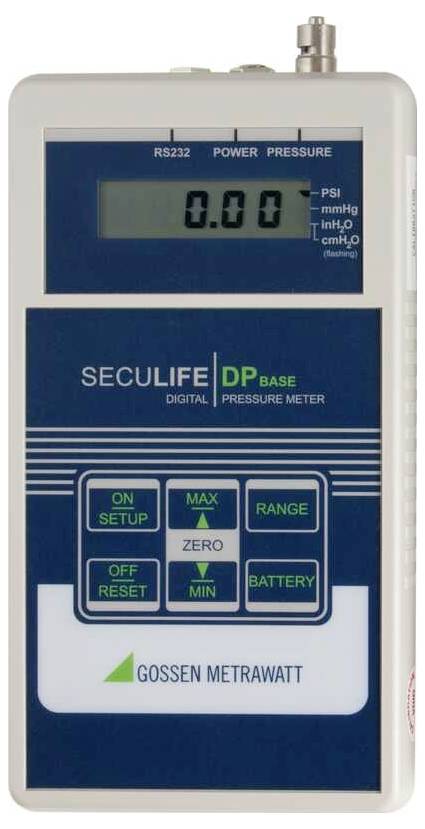

Handheld digital pressure meter showing 0.00 reading, with buttons for on/setup, zero, range, battery, and max/min.

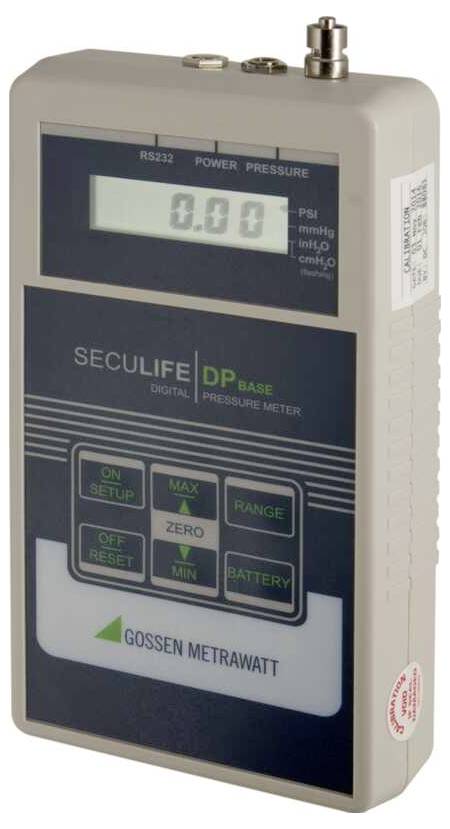

Handheld digital pressure meter labeled 'SECULIFE DP BASE' with LCD display, control buttons, and top connector.

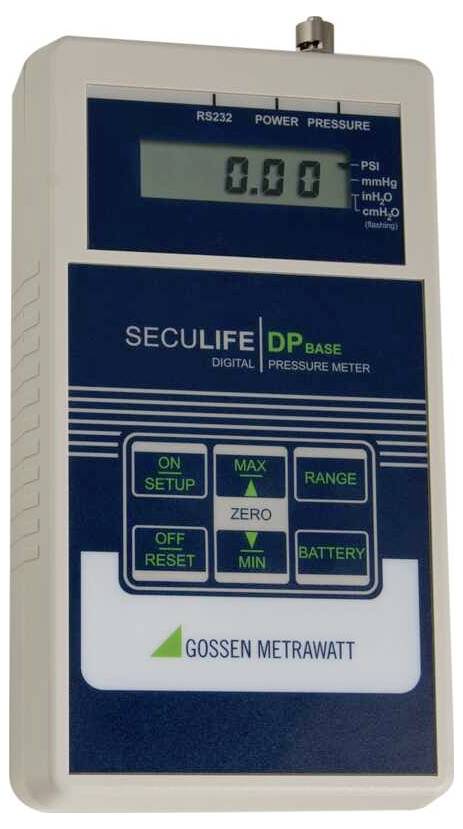

Handheld digital pressure meter showing a 0.00 reading, with buttons for setup, reset, max/min, zero, range, and battery.

1/3

Datasheet (PDF)

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,718.49 / piece)

€ 1,718.49

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Digital precision measuring device SECULIFE DP BASE

Interface for YSI 700 temperature sensors
0.5% fs accuracy (temperature)
Min/max temperature memory
Min / max pressure value storage
RS-232 serial
Range -13.50 to 100.00 psi
Pressure scales include psi, inH2O, cmH2O and mmHg
Digital calibration
16 bit pressure measurement
Digital zero point adjustment

Technical specifications

-13.50 to 100.00 pressure measuring range PSI

Product type: Pressure gauge

: Manufacturer's standards (no certificate)

Interfaces: RS232
Bluetooth®

Dim: (L x W x H) 195 x 100 x 46 mm

Weight: 450 g

: IP20

Reading range (VDE): Temperature

Display type: Graphic LCD

Accuracy: 0.1 %

Width: 100 mm

Height: 46 mm

Length: 195 mm

Memory: Yes

Type: SECULIFE DP BASE

Documents & Downloads

Datasheet

Datasheet 3765550 Gossen Metrawatt SECULIFE DP BASE Pressure gauge

User & Safety Instructions

User & Safety Instructions 3765550 Gossen Metrawatt SECULIFE DP BASE Pressure gauge

Description

The SECULIFE DP BASE precision pressure sensor is a high-quality measuring device for the positive and negative pressure detection of compatible liquids and gases.

The LCD display used is easy to read. The device is equipped with an RS232 interface for data communication and is additionally possible with the possibility of Min/Max measurement. The SECULIFE DP BASE is digitally calibrated and has a high accuracy of 0.1% of the total display.

This text is machine translated.
