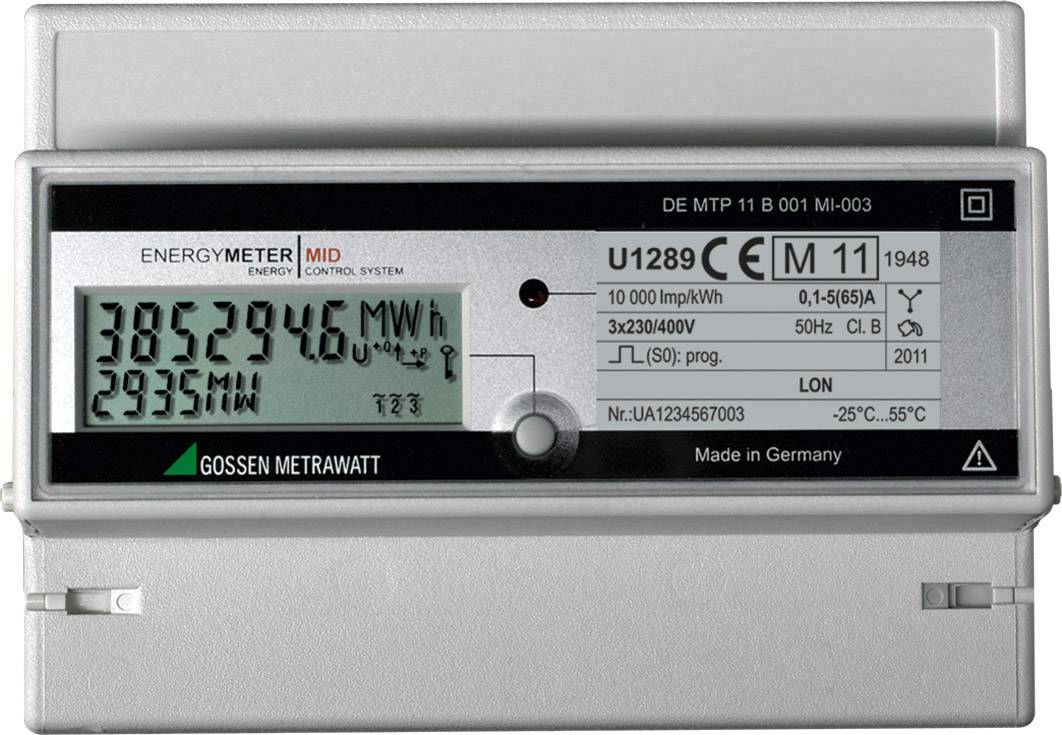

Gossen Metrawatt U1289-V014 U1289-V014 Electricity meter (3-phase) Digital 65 A MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Current load
65 A
Display
Digital
Calibration
Calibrated
Dim
(L x W x H) 125.5 x 70 x 90 mm
Datasheet (PDF)
Highlights & Details
Energy counters for direct connection 5 (65) A, 4-wire power supply, 3 x 230 / 400 V, S0 pulse rate can be programd, M-Bus, MID
- Professional energy counter for 4-conductor networks with 65 A Direct connection
- Accuracy class B for industry and trade as well as increased requirements in households
- Cost savings through initial verification from the factory, according to MID, conformity assessment procedures module B+D
- Display of installation errors: phase sequence, phase failure, connected with reverse polarity converter, Overload
- Universal pulse output with adjustable pulse rate, pulse duration and selectable voltage range
- Flexible communication via integrated M-Bus interface
- Full function when the circuit via fail-safe 24V auxiliary voltage possible
- Sealable cover, parameter lock
- Made in Germany
Technical specifications
- Counter type 3-Phase 4-conductor meter
- Operating voltage 3 x 230 / 400 V
- MID-approval yes
- Design for DIN rail
- Category rotary current meter with direct connection (5) 65 A
- Display: LCD
- Impulse output: S0, pulse rate can be programd
- Bus: M-Bus
- Width 126 mm
- Height 45 mm
- Frequency 50 Hz
- Type U1289-V014
- Product type
Electricity meter (3-phase)
- Current load
65 A
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 125.5 x 70 x 90 mm
- Weight
481 g
- Recess width
126 mm
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
230 up to 400 V
- Mains voltage (max.)
400 V
- Mains voltage (min.)
230 V
- Width
70 mm
- Height
90 mm
- Length
125.5 mm
- Current (max.)
65 A
- Current range
65 A (max)
- Type
U1289-V014
Documents & Downloads
Datasheet
Datasheet 1344432 Gossen Metrawatt U1289-V014 U1289-V014 Electricity meter (3-phase) Digital 65 A MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1344432 Gossen Metrawatt U1289-V014 U1289-V014 Electricity meter (3-phase) Digital 65 A MID-approved: Yes 1 pc(s)
Description
The calibrated energy counter can be used to capture and settlement of active energy in industry, household, commercial, industrial and building technology can be used. The transfer of values to acquisition, billing and optimization systems as well as gebaudeautomationund control systems is via pulse output, LON, M-Bus or L-bus interfaces. The Installation itself is absolutely easy, because the meter detects connection errors and signals them immediately. Maximum comfort offers the display of the real power, because it gives immediate information about the current circuit load.
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
