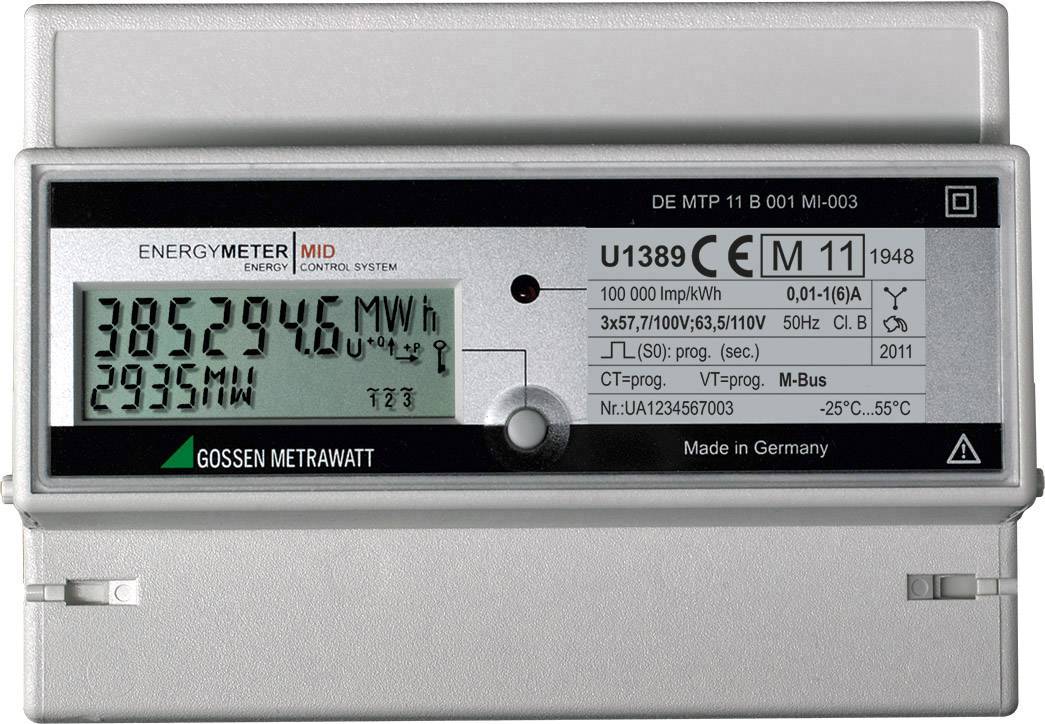

Gossen Metrawatt U1389-V015 U1389-V015 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase) incl. converter jack
Current load
5 A
Display
Digital
Calibration
Calibrated
Dim
(L x W x H) 125.5 x 70 x 90 mm
Datasheet (PDF)
Highlights & Details
Energy meter for transformer connection 5 (6) A and 1 (6) A, 4-wire power supply, 3 x 230 / 400 V, 1 (6) A, S0, CT/VT/pulse rate can be programd, M-Bus, MID
- Professional energy counter for 4-conductor networks with 1A, 5A transducer connection
- Accuracy class B for industry and trade as well as increased requirements in households
- Cost savings through initial verification from the factory, according to MID, conformity assessment procedures module B+D
- Display of installation errors: phase sequence, phase failure, connected with reverse polarity converter, Overload
- Universal pulse output with programmable pulse rate, pulse duration and selectable voltage range CT/VT programmable flexible communication via integrated M-Bus interface full function when the circuit via fail-safe 24V auxiliary voltage possible
- Sealable cover, parameter lock
- Made in Germany
Technical specifications
- Counter type 3-Phase 4-conductor meter
- Operating voltage 3 x 230 / 400 V
- MID-approval yes
- Design for DIN rail
- Category rotary current meter with converter connection 5 (6) A and 1 (6) A
- Display: LCD
- Impulse output: S0, pulse rate can be programd
- CT/VT: programmable
- Bus: M-Bus
- Width 126 mm
- Height 45 mm
- Frequency 50 Hz
- Type U 1389-V015
- Product type
Electricity meter (3-phase) incl. converter jack
- Current load
5 A
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 125.5 x 70 x 90 mm
- Weight
481 g
- Recess width
126 mm
- MID-approved
Yes
- Reading type
Active energy
- Width
70 mm
- Height
90 mm
- Length
125.5 mm
- Current (max.)
6 A
- Current range
6 A (max)
- Type
U1389-V015
Documents & Downloads
Datasheet
Datasheet 1344439 Gossen Metrawatt U1389-V015 U1389-V015 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1
User & Safety Instructions
User & Safety Instructions 1344439 Gossen Metrawatt U1389-V015 U1389-V015 Electricity meter (3-phase) incl. converter jack Digital 5 A MID-approved: Yes 1
Description
The calibrated energy counter can be used to capture and settlement of active energy in industry, household, commercial, industrial and building technology can be used. The transfer of values to acquisition, billing and optimization systems as well as gebaudeautomationund control systems is via pulse output, LON, M-Bus or L-bus interfaces. The Installation itself is absolutely easy, because the meter detects connection errors and signals them immediately. Maximum comfort offers the display of the real power, because it gives immediate information about the current circuit load.
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
