Buy Gossen Metrawatt WZ12C Clamp meter adapter A/AC reading range: 1 mA - 150 A

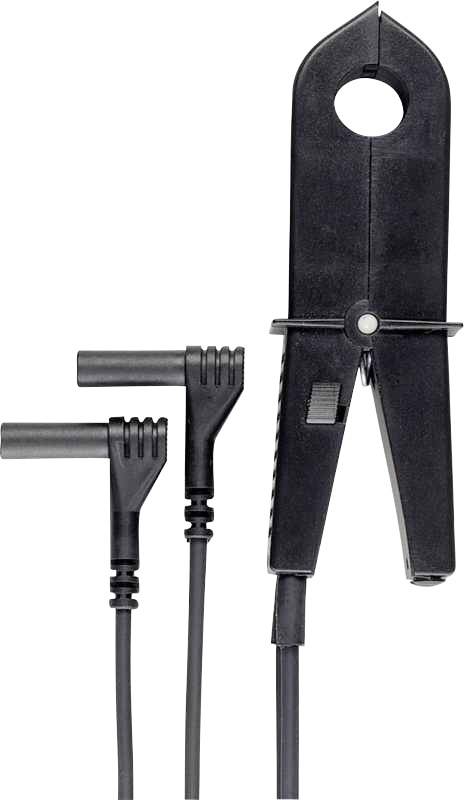

Black electrical current clamp with two connected cables, used for measuring electric current in electrical conductors.

Datasheet (PDF)

Unavailable

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ammeter WZ12C

N/A
Opening range of current clamps 15 mm

Technical specifications

Output: 1mV/mA, 1 mV/A

Opening range of current clamps: 15 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 1 mA

Amperage reading range AC (max.): 150 A

Basic accuracy: 3 %

Dim: (L x W x H) 26 x 40 x 120 mm

Current reading: AC

Reading category: CAT II 600 V
CAT III 300 V

Weight: 170 g

Max. frequency: 65 Hz

Width: 40 mm

Height: 120 mm

Length: 26 mm

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Gossen Metrawatt WZ11A Clamp meter adapter A/AC reading range: 1 - 200 A

Item no:1625597

200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT II 1000 VCAT III 600 V

Gossen Metrawatt GEOHM FLEX 3 Clamp meter adapter A/AC reading range: 0 - 4.99 A Flexible

Item no:1625611

4.99 A

Manufacturer's standards (no certificate)

manufacturer-specific

0 A

CAT IV 600 V

Gossen Metrawatt WZ11B Clamp meter adapter A/AC reading range: 0.5 - 200 A

Item no:1625670

200 A

Manufacturer's standards (no certificate)

4 mm plug

0.5 A

CAT II 1000 VCAT III 600 V

Gossen Metrawatt E-Clip 1 Clamp meter adapter A/AC reading range: 1 mA - 1200 A

Item no:1625691

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 mA

CAT III 600 V

Gossen Metrawatt GEOHM FLEX 1 Clamp meter adapter A/AC reading range: 0 - 4.99 A Flexible

Item no:1625704

4.99 A

Manufacturer's standards (no certificate)

manufacturer-specific

0 A

CAT IV 600 V

Gossen Metrawatt METRAFLEX 3001XBL/36 Clamp meter adapter A/AC reading range: 0.16 - 3000 A Flexible

Item no:1625716

3000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.16 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 3003XBL/36 Clamp meter adapter A/AC reading range: 0.16 - 3000 A Flexible

Item no:1625717

3000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.16 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 300MXBL/3 Clamp meter adapter A/AC reading range: 0.006 - 300 A Flexible

Item no:1625718

300 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.006 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX 6003 XBL Clamp meter adapter A/AC reading range: 0.32 - 6000 A Flexible

Item no:1625722

6000 A

Manufacturer's standards (no certificate)

Hypertronics plug

0.32 A

CAT III 1000 VCAT IV 600 V

Gossen Metrawatt METRAFLEX P300 Clamp meter adapter A/AC reading range: 0.01 - 300 A Flexible

Item no:1625801

300 A

Manufacturer's standards (no certificate)

4 mm plug

0.01 A

CAT III 1000 VCAT IV 600 V

Documents & Downloads

Datasheet

Datasheet 1625786 Gossen Metrawatt WZ12C Clamp meter adapter A/AC reading range: 1 mA - 150 A

User & Safety Instructions

User & Safety Instructions 1625786 Gossen Metrawatt WZ12C Clamp meter adapter A/AC reading range: 1 mA - 150 A

Description

Low transmission errors
Through a small phase angle error suitable for power meter
Compact and handy
Fixed safety cables
Current output
Your advantages
To spitzte beak cheeks for easier access to poet cable arrangement.
Applications
The current probe converter WZ12C was as accessories for multimeter, power measuring and analysis devices, registration devices and data logger. It enables within wide limits which are galvanically decoupled measurement of AC currents without opening of the current-carrying conductor.

This text is machine translated.

Scope of delivery

1 Current Sensor
1 fixed safety cable with connector.
1 operating instructions
