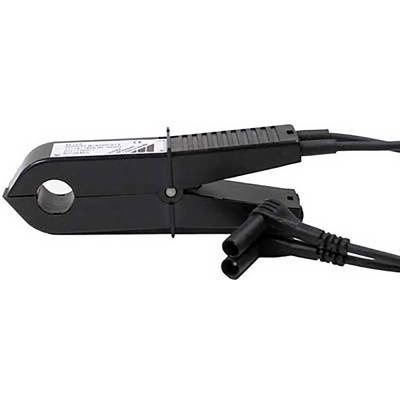

Gossen Metrawatt WZ12D Clamp meter adapter A/AC reading range: 30 mA - 150 A
EAN:
Part number:
Item no:
Highlights & Details
Current transformer 30 mA... 150 AAC
- N/A
- Opening range of current clamps 15 mm
Technical specifications
- Measuring range: 30mA ... 150 AAC
- Transmission ratio 1000:1
- Current conversion 1mA/A
- Accuracy ±2.5% of the measured value +0.1mA
- Frequency range 45 to 500 Hz
- Jaw opening Ø 15 mm
- Opening range of current clamps
15 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
30 mA
- Amperage reading range AC (max.)
150 A
- Dim
(L x W x H) 120 x 40 x 26 mm
- Current reading
AC
- Reading category
CAT III 300 V
- Weight
170 g
- Max. frequency
500 Hz
- Width
40 mm
- Height
26 mm
- Length
120 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1405751 Gossen Metrawatt WZ12D Clamp meter adapter A/AC reading range: 30 mA - 150 A
Description
The pliers converter and sensors WZ11 and wz 12 were as accessories for multimeter, power measuring and analysis devices, registration devices and data logger. They enable within wide limits which are galvanically decoupled measurement of AC currents without opening of the current-carrying conductor.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 current transformer
- 1 fixed safety cable with connector.
- 1 operating instructions
