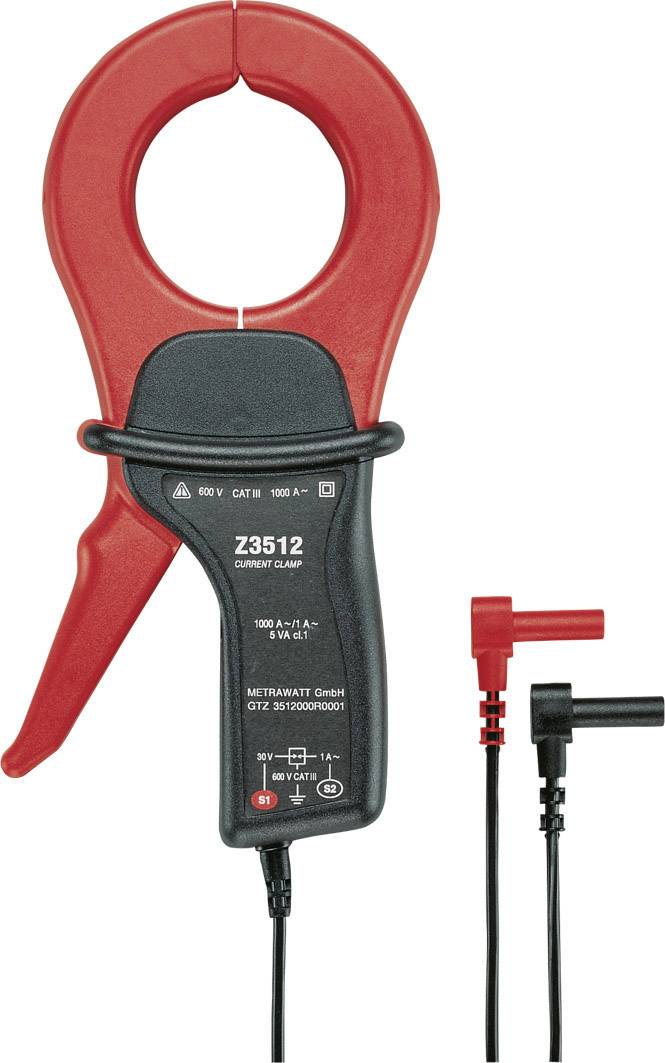

Gossen Metrawatt Z3512 Clamp meter adapter A/AC reading range: 0.5 - 1000 A A/DC reading range: 0.5 - 1000 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Probe converter 0.5 ... 1000 AAC
- N/A
- Opening range of current clamps 52 mm
Technical specifications
- Measuring range: 0.5A... 1000 AAC
- Transmission ratio 1000:1
- Current conversion 1 mA/A
- Accuracy ±0.5 … 0.7% from the measurement value
- Frequency range from 30 Hz to 5 kHz
- Conductor Φ 52 mm
- Opening range of current clamps
52 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
0.5 A
- Amperage reading range AC (max.)
1000 A
- Amperage reading range DC (min.)
0.5 A
- A DC reading range (max.)
1000 A
- Dim
(L x W x H) 206 x 105 x 48 mm
- Current reading
AC
- Reading category
CAT III 600 V
- Weight
0.65 kg
- Output signal (max.)
1000 mA
- Max. frequency
5 kHz
- Width
105 mm
- Height
48 mm
- Length
206 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1405753 Gossen Metrawatt Z3512 Clamp meter adapter A/AC reading range: 0.5 - 1000 A A/DC reading range: 0.5 - 1000 A
User & Safety Instructions
User & Safety Instructions 1405753 Gossen Metrawatt Z3512 Clamp meter adapter A/AC reading range: 0.5 - 1000 A A/DC reading range: 0.5 - 1000 A
Description
AC current converter with current output mA/A. No separation of the circuit - no galvanic connection to the conductor. Measurement of high currents - no overloading of the multimeter during power impacts on the network.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 current transformer
- 1 fixed safety cable with connector.
- 1 operating instructions
