Gossen Metrawatt Z3512A Clamp meter adapter A/AC reading range: 0.001 - 1200 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

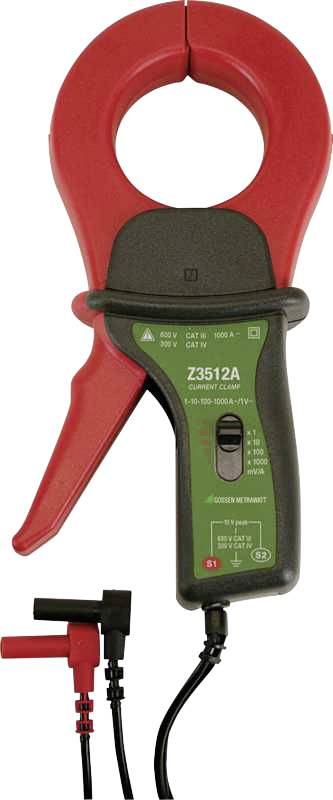

Z3512A clamp transformer
- N/A
- Opening range of current clamps 52 mm
Technical specifications
- Output: 1 V/A up to 1 mV/A
- Opening range of current clamps
52 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
0.001 A
- Amperage reading range AC (max.)
1200 A
- Basic accuracy
1 %
- Dim
(L x W x H) 45 x 111 x 216 mm
- Current reading
AC
- Reading category
CAT III 600 V
CAT IV 300 V
- Weight
550 g
- Output signal (max.)
1 V
- Max. frequency
3 kHz
- Width
111 mm
- Height
216 mm
- Length
45 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1625672 Gossen Metrawatt Z3512A Clamp meter adapter A/AC reading range: 0.001 - 1200 A
User & Safety Instructions
User & Safety Instructions 1625672 Gossen Metrawatt Z3512A Clamp meter adapter A/AC reading range: 0.001 - 1200 A
Description
Alternating currents from just a few mA up to 1000 A
Translation factor 1000/100/100/10 mV/A
Frequency / Measuring deviation: 10..48..65 Hz to 3 kHz/0.2%.. 0.7%% v. M.
Error current measurements on three-wire cables
Heavy current measurements of wires and rails with high accuracy
Your advantages
The ammeter Z3512A is suitable for connection to digital multimeter with an input resistance of 5 to 10 MW at V~. By its high measurement sensitivity can be among others. Currents in the earth loop track and measure, as well as leakage or fault currents in the grounding of single-phase or three-phase networks. By switching to a higher current ranges it is also used as a current sensor for high current applications with a very high transmission accuracy can be used.
Applications
The current sensor is intended to be used for the expansion of alternating current measuring ranges. In conjunction with display and recording devices, AC currents in cables and power rails are to be measured, without that these need to be interrupted. The secondary connection is via fixed lines with touch-protected connection plugs. A protective circuit prevents the emergence of high voltages in case of an interruption of the secondary circuit.
This text is machine translated.
Translation factor 1000/100/100/10 mV/A
Frequency / Measuring deviation: 10..48..65 Hz to 3 kHz/0.2%.. 0.7%% v. M.
Error current measurements on three-wire cables
Heavy current measurements of wires and rails with high accuracy
Your advantages
The ammeter Z3512A is suitable for connection to digital multimeter with an input resistance of 5 to 10 MW at V~. By its high measurement sensitivity can be among others. Currents in the earth loop track and measure, as well as leakage or fault currents in the grounding of single-phase or three-phase networks. By switching to a higher current ranges it is also used as a current sensor for high current applications with a very high transmission accuracy can be used.
Applications
The current sensor is intended to be used for the expansion of alternating current measuring ranges. In conjunction with display and recording devices, AC currents in cables and power rails are to be measured, without that these need to be interrupted. The secondary connection is via fixed lines with touch-protected connection plugs. A protective circuit prevents the emergence of high voltages in case of an interruption of the secondary circuit.
This text is machine translated.
Scope of delivery
- 1 probe converter Z3512A
