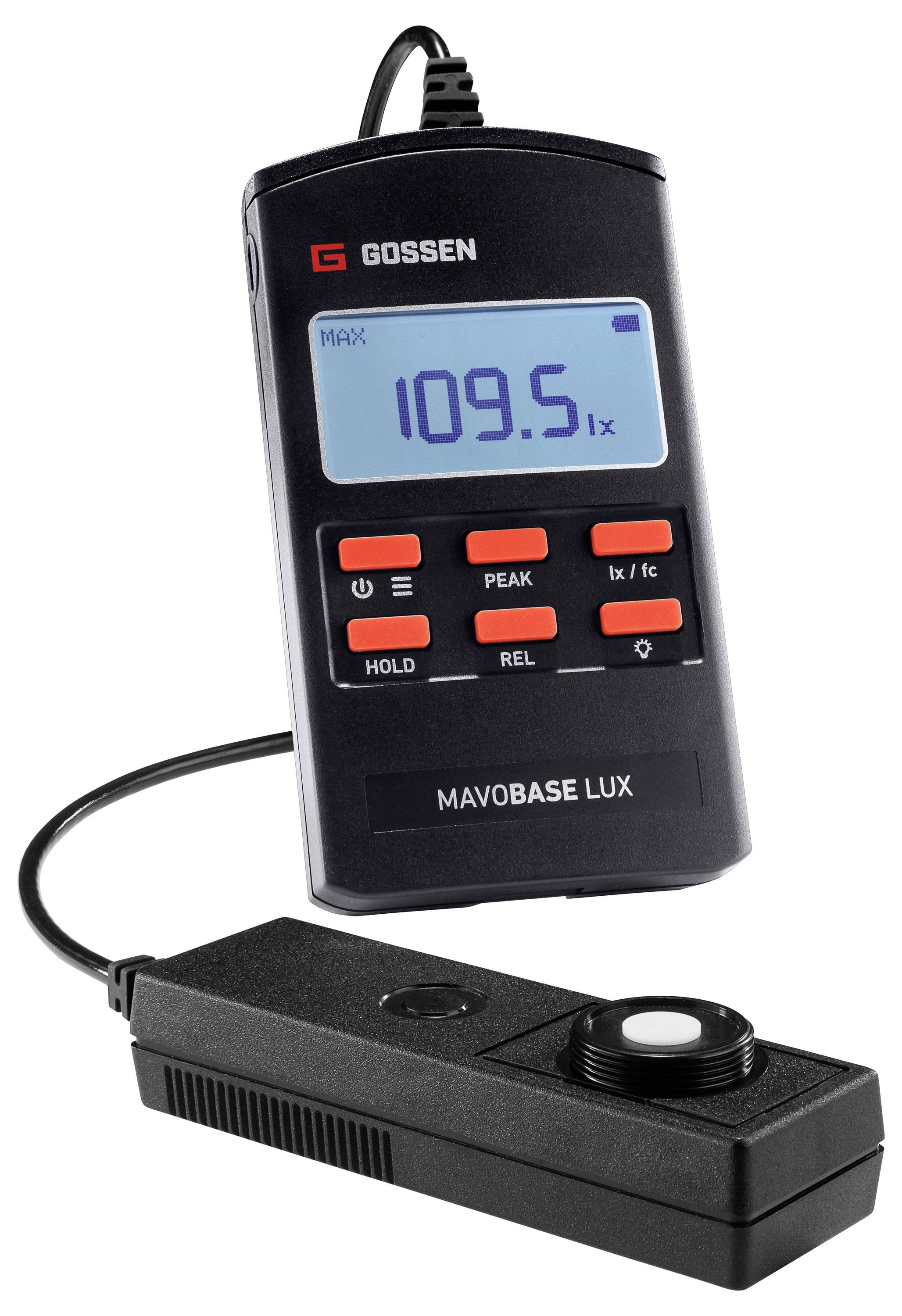

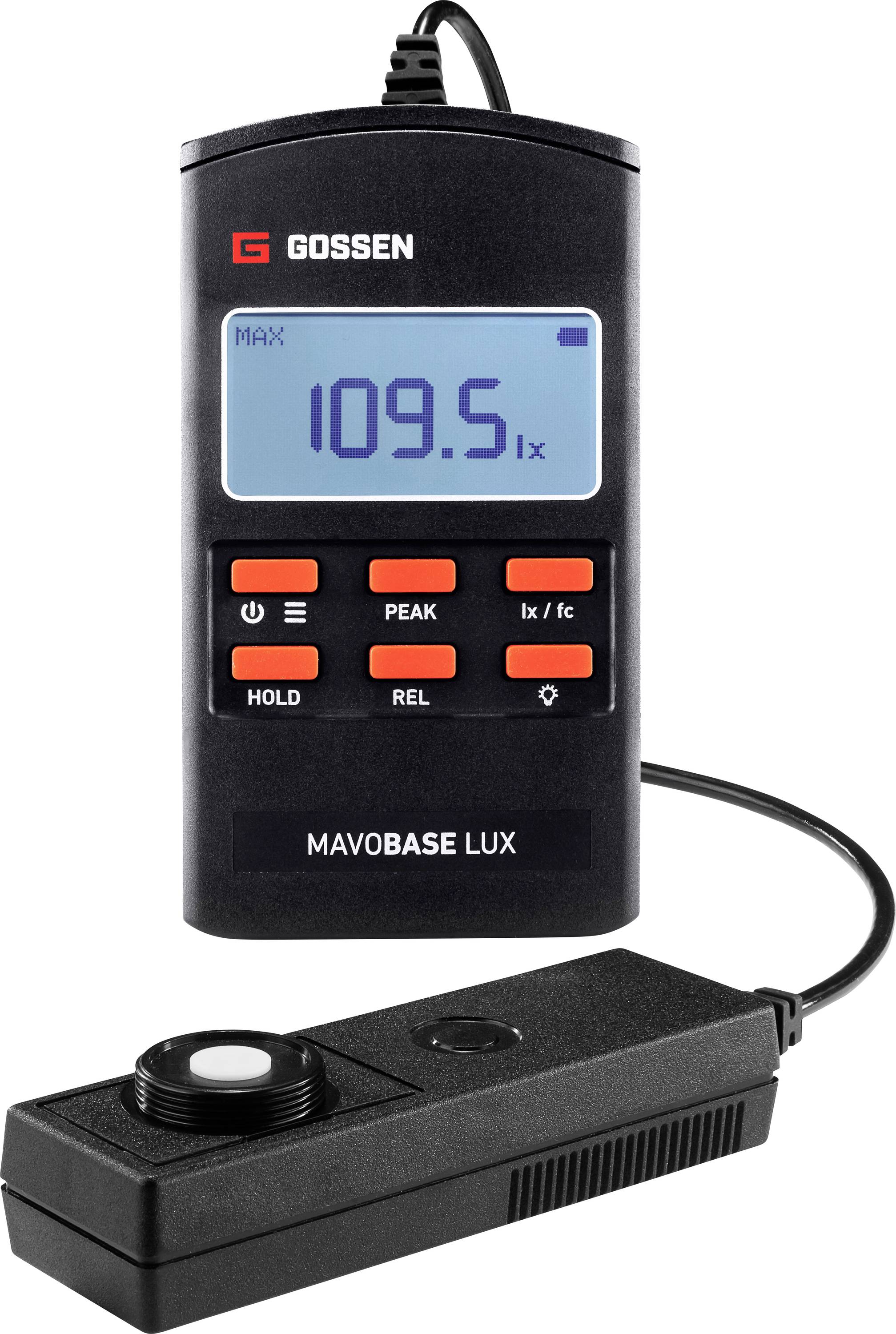

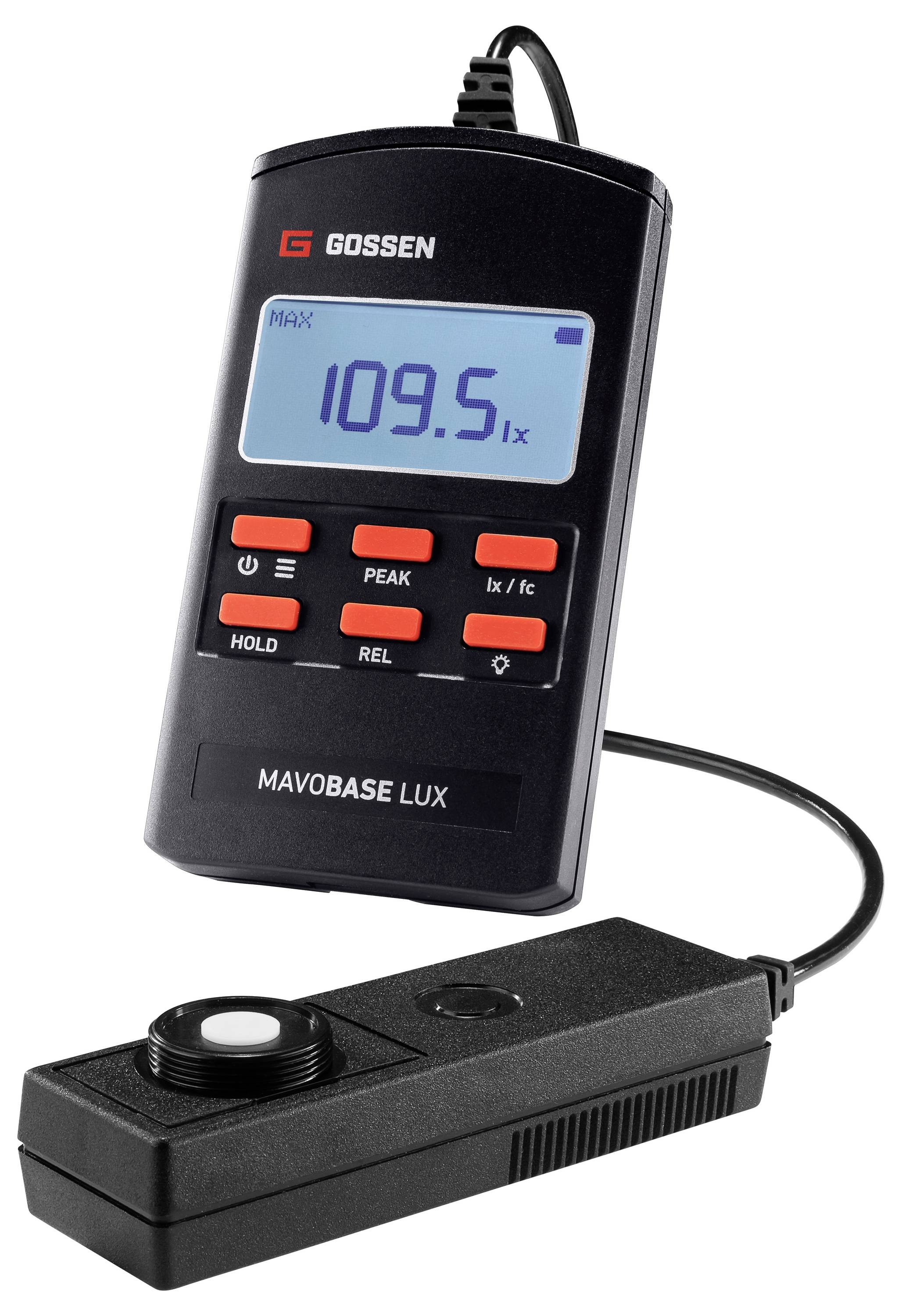

Gossen Photo F532G MAVOBASE LUX Lux meter 0.1 - 199.900 lx
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Class C light intensity meter according to DIN 5032-7
- Precision measurement of strength of illumination
- Colour-corrected silicon photodiode
- MIN/MAX/AVG Function
- REL-Function for measurements under daylight incidence
- Lux/Footcandle (fc)
Technical specifications
- Product type
Lux meter
- Reading type
Light intensity
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 62 x 120 x 19 mm
- Display
LCD
- Weight
110 g
- Features
Data logger
Suitable for LED lighting
- Illuminance reading range
0.1 - 199.900 lx
- Illuminance reading range (max.)
199.900 lx
- Illuminance reading range (min.)
0.1 lx
- Illuminance reading accuracy
3 %
- Width
120 mm
- Height
19 mm
- Length
62 mm
Documents & Downloads
Datasheet
Datasheet 3800207 Gossen Photo F532G MAVOBASE LUX Lux meter 0.1 - 199.900 lx
User & Safety Instructions
User & Safety Instructions 3800207 Gossen Photo F532G MAVOBASE LUX Lux meter 0.1 - 199.900 lx
Description
The MAVOBASE LUX is a high-precision light intensity meter class C for use in a wide range of applications. It reliably measures the illumination intensity of daylight and artificial light sources of all kinds. Even the strongest light like daylight or headlight lighting can be measured with the MAVOBASE LUX without any accessories. It has special functions such as determination of MIN/MAX and AVERAGE values as well as the REL function for the measurement of artificial light under daylight conditions in interiors.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1.5V AA alkali-manganese battery (IEC LR 6)
- Operating instructions D/GB
- Final test proof
