Buy Green Cell GC-AGM12V12AH-J VRLA AGM 12 Ah 12 V 1 pc(s)

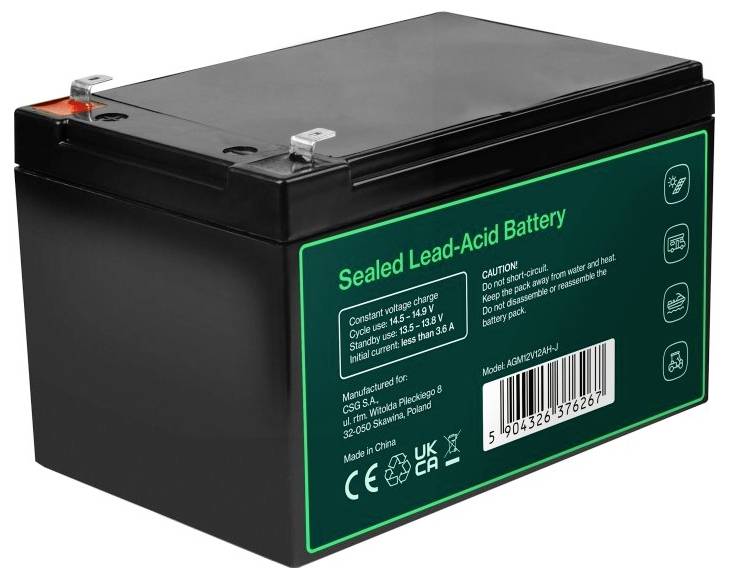

Black sealed lead-acid battery with green label, terminals on top, and barcode on the front side.

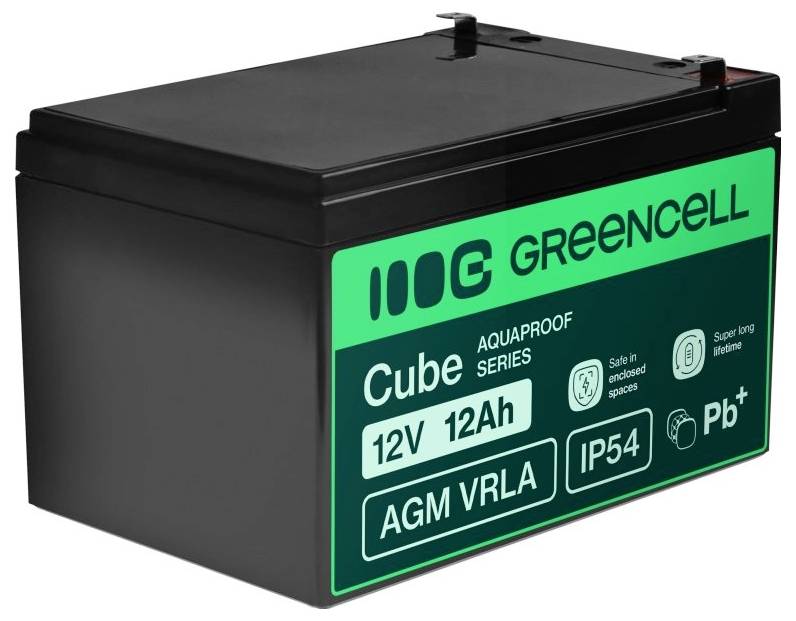

Black GreenCell Cube AGM VRLA battery labeled 12V 12Ah, IP54, for safe enclosed spaces and long-life use.

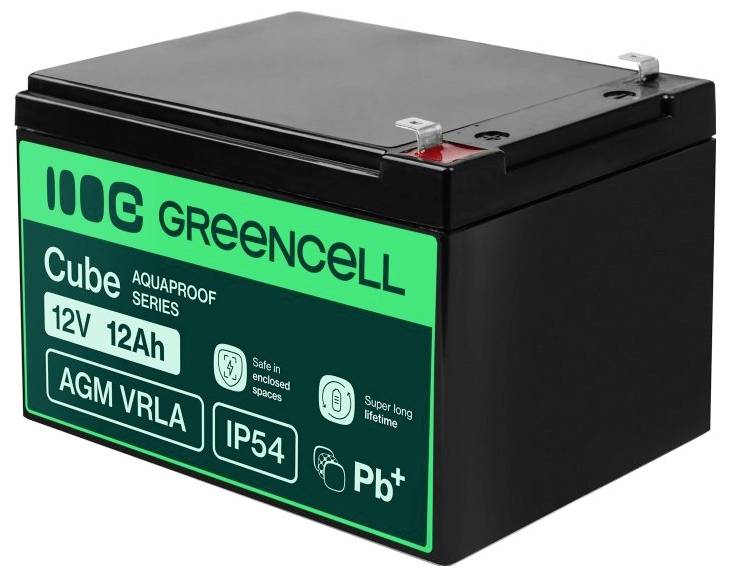

Black Greencell Cube Aquaproof 12V 12Ah AGM VRLA battery with IP54 rating and Pb+ label shown on a white background

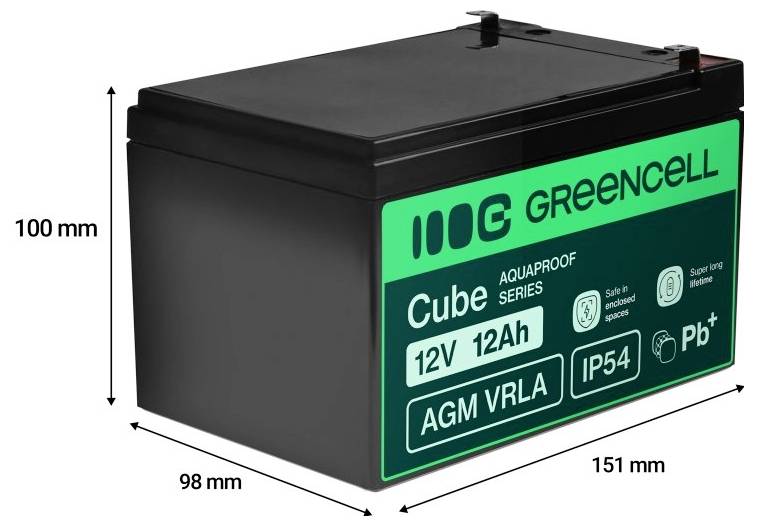

Black Green Cell Cube 12V 12Ah AGM VRLA battery shown in 3D, labeled 151 mm wide, 98 mm deep, and 100 mm high.

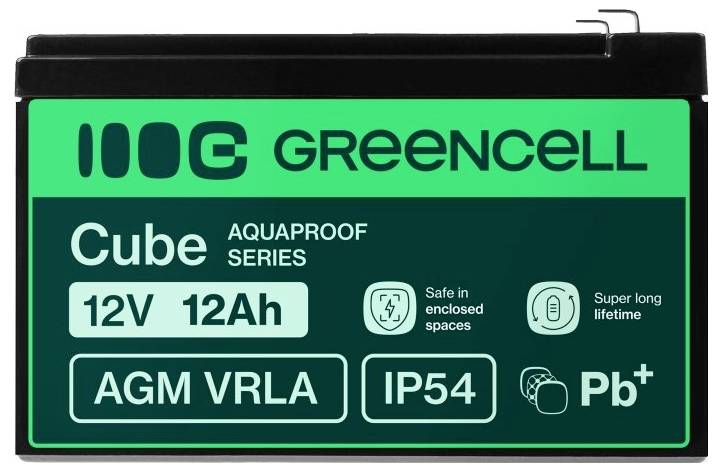

GreenCell 12V 12Ah AGM VRLA battery, IP54 rated, labeled 'AquaProof Series' and 'Safe in enclosed spaces' with 'Super long lifetime' and Pb+ symbol.

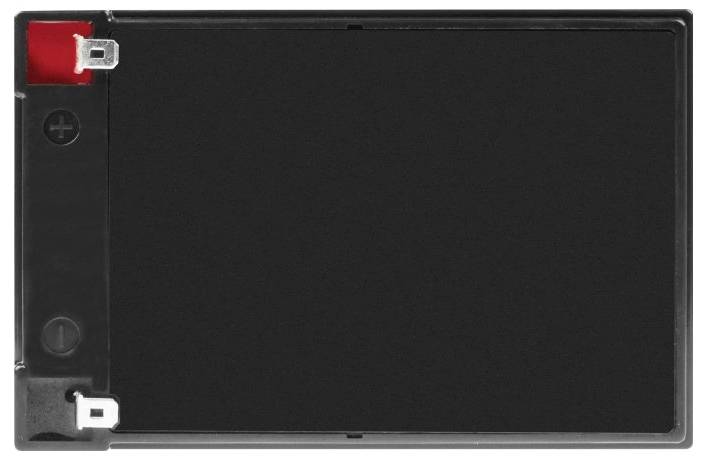

Black rectangular battery with red positive terminal and metal connectors on the left side.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 29.40 / piece)

€ 29.40

plus VAT.

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Green Cell GC-AGM12V12AH-J VRLA AGM 12 Ah 12 V 1 pc(s)

Internal resistance: Up to 17 mΩ (at 25 °C)
Intended use: Cash registers, scales, children's toys, lawn mowers, alarm and fire alarm systems, surveillance cameras, telecommunication systems
Trickle charge 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 3.6 A.
Short circuit current 430 A

Technical specifications

Housing dimensions (L x B) 151 x 98 mm
Service life: 3 to 5 years in buffer mode (standby) / at least 260 cycles at 100% discharge depth (DoD)
Recommended charging current: Max. 3.60 A (corresponds to 0.3 CA)
Charging voltage (buffer operation) 13.5 - 13.8 VDC at 25 °C.
Charging voltage (cyclic operation): 14.4 - 15.0 VDC at 25°C.
Temperature coefficient -3.3 mV/°C.
Application area: Emergency power supply, UPS systems, alarm systems, solar systems

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 12 Ah

Height: 95 mm

Weight: 3.3 kg

Content: 1 pc(s)

Type: GC-AGM12V12AH-J

Rechargeable: Yes

Connector: 6.35 mm blade terminal

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773481 Green Cell GC-AGM12V12AH-J VRLA AGM 12 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773481 Green Cell GC-AGM12V12AH-J VRLA AGM 12 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
