Buy Green Cell GC-AGM12V2-3AH-H VRLA AGM 2.3 Ah 12 V 1 pc(s)

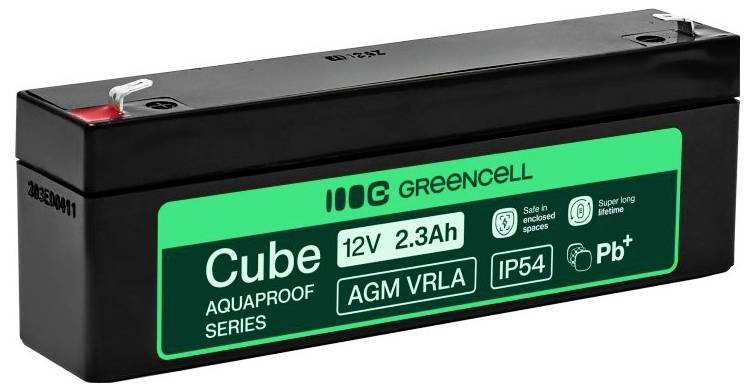

Black Green Cell Cube 12V 2.3Ah AGM VRLA sealed lead-acid battery with green label and red terminal cover.

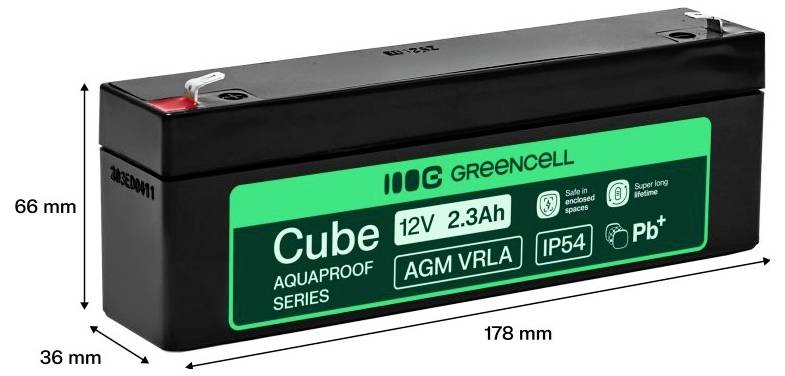

Black rectangular battery labeled 'Cube 12V 2.3Ah' and 'GREENCELL', shown with dimensions 178 mm by 66 mm by 36 mm and IP54 rating.

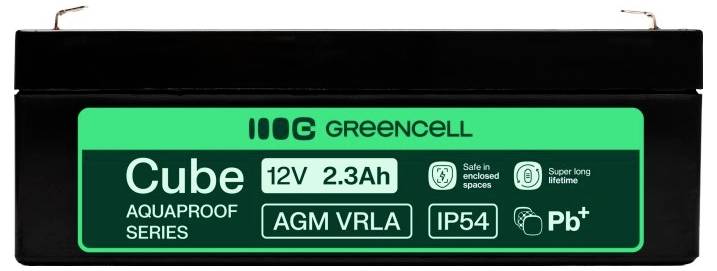

Black Greencell Cube rechargeable battery labeled '12V 2.3Ah', 'AGM VRLA', 'IP54', and 'Pb' from the Aquaproof series.

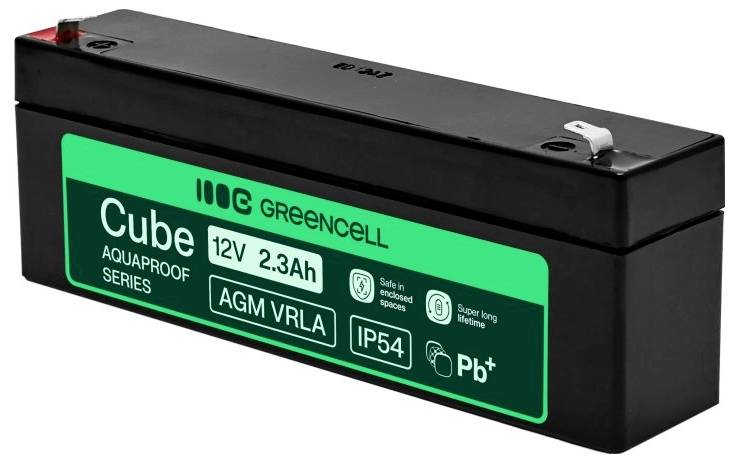

Black Greencell Cube AGM VRLA 12V 2.3Ah rechargeable battery with green label and terminal posts<br>

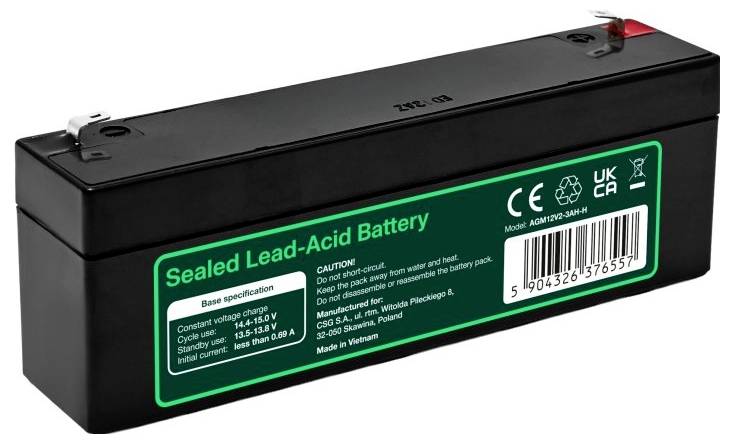

Black sealed lead-acid battery with green-labeled specifications and terminals on top.

Black rectangular device with a red connector on the left and a white connector on the right, shown on a plain white background.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Greencell AGM VRLA 12V 2.3Ah

Internal resistance: Up to 57 mΩ (at 25 °C)
Intended use: Cash registers, scales, children's toys, lawn mowers, alarm and fire alarm systems, surveillance cameras, telecommunication systems
Maintenance charging (buffer operation): 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 0.69 A.
Short circuit current 210 A

Technical specifications

Length 178 mm, width 35–36 mm
Service life: Up to 5 years (maintenance-free operation by VRLA valves)
Maximum charging current 0.69 A.
Buffer charge 13.5 – 13.8 V
Cyclic charging 14.5 – 14.9 V
IP 54 certified (dust and splash-proof)

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 2.3 Ah

Height: 66 mm

Weight: 930 g

Content: 1 pc(s)

Type: GC-AGM12V2-3AH-H

Rechargeable: Yes

Connector: 4.8 mm blade terminal

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773485 Green Cell GC-AGM12V2-3AH-H VRLA AGM 2.3 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773485 Green Cell GC-AGM12V2-3AH-H VRLA AGM 2.3 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
