Buy Green Cell GC-AGM12V50AH-H VRLA AGM 50 Ah 12 V 1 pc(s)

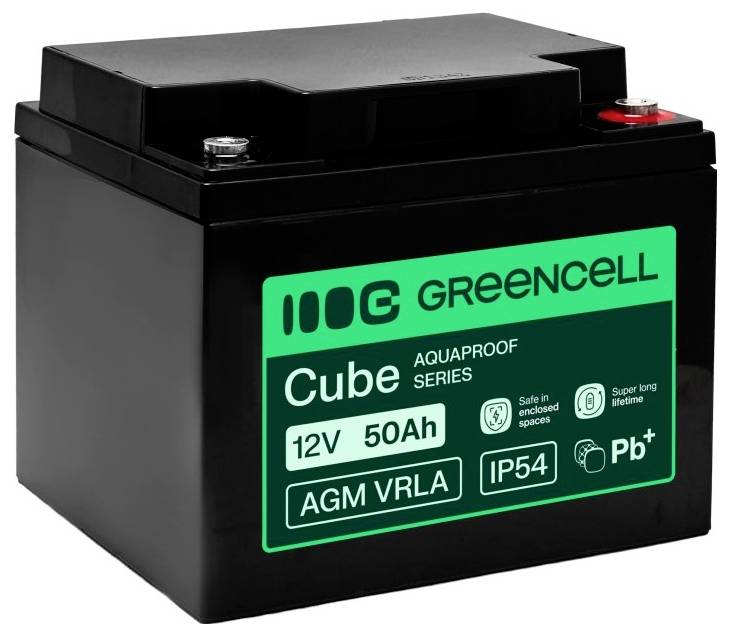

Black GREENCELL Cube 12V 50Ah AGM VRLA battery, IP54 rated, with red and silver terminals.<br>

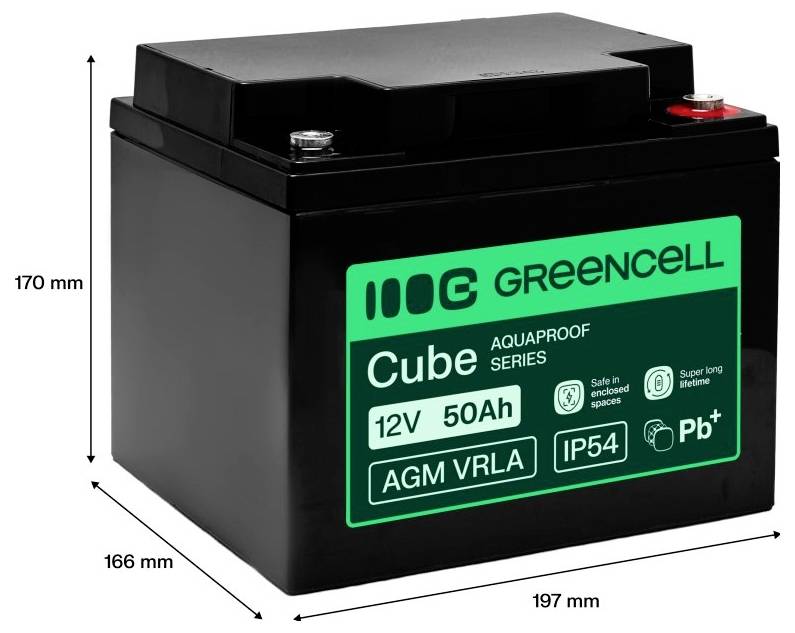

Green Cell 'Cube' 12V 50Ah AGM VRLA battery, labeled IP54 and Pb+, shown with dimensions 197 mm x 166 mm x 170 mm.

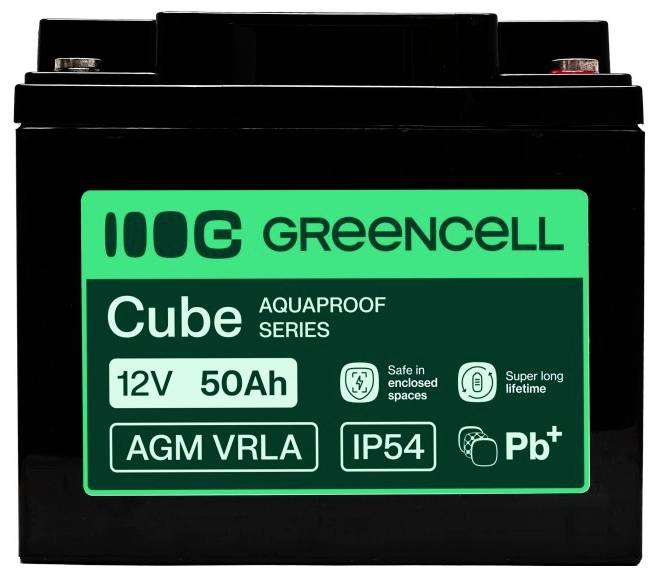

Black Greencell Cube AGM VRLA battery, labeled '12V 50Ah', 'IP54', 'Pb+', and 'AQUAPROOF SERIES'.

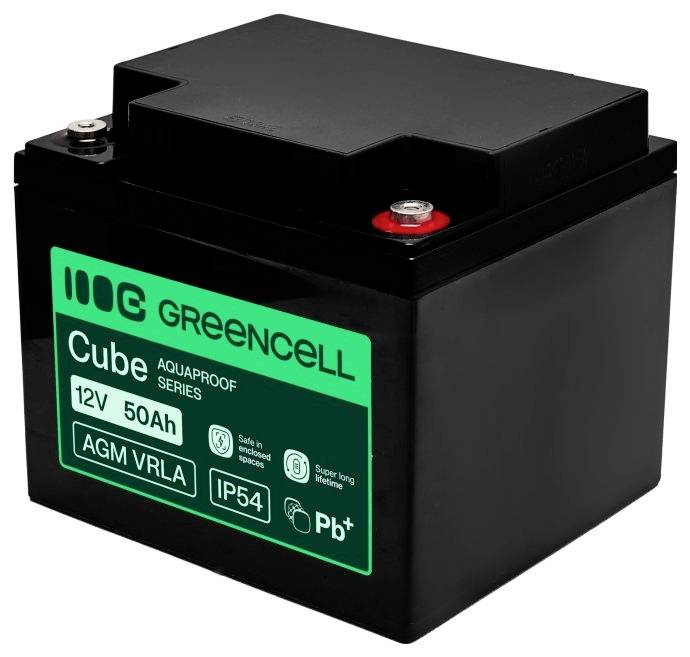

Black Greencell Cube 12V 50Ah AGM VRLA rechargeable battery with top terminals and green label.

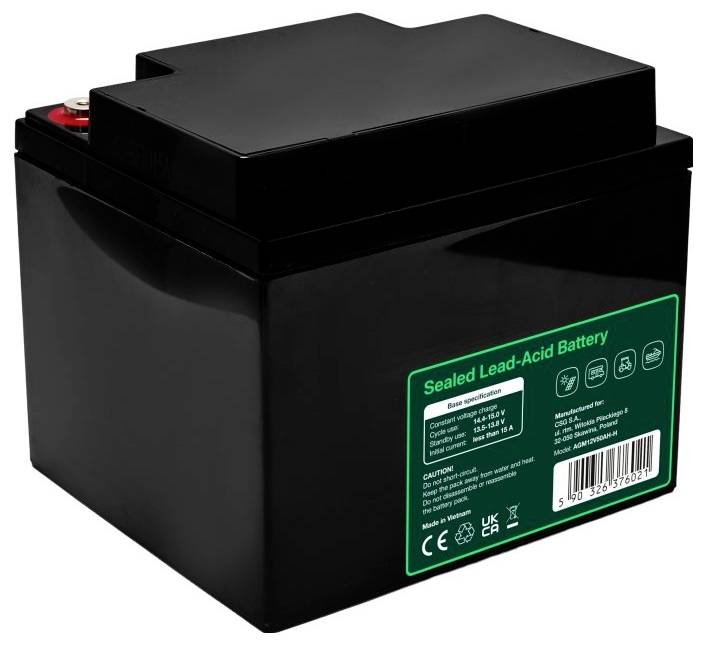

Black sealed lead-acid battery with green label and barcode, shown isolated on a white background.

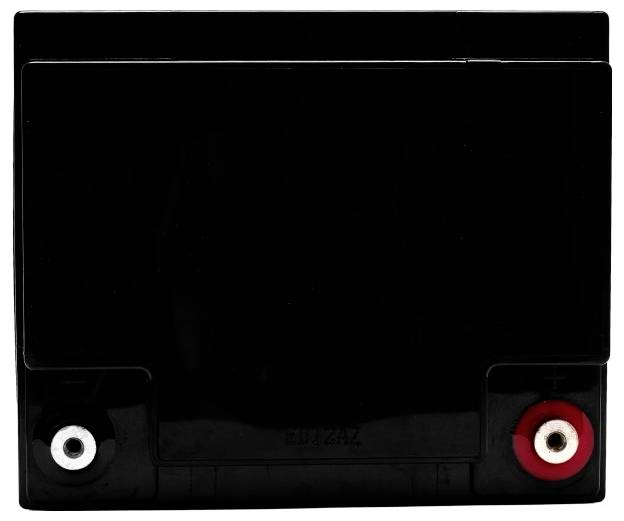

Black rectangular battery with two terminal posts, one silver on the left and one red on the right.

1/6

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Green Cell GC-AGM12V50AH-H VRLA AGM 50 Ah 12 V 1 pc(s)

Internal resistance: Up to 9 mΩ (at 25 °C)
Use: UPS (uninterrupted power supply) systems, cash registers and scales, scooters and wheelchairs, children's toys, mobile homes, Alarm and fire protection systems, telecommunication systems
Maintenance charging (readiness parallel mode): 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 12 A.
Short circuit current 1333 A

Technical specifications

Length 197 mm x width 166 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 50 Ah

Height: 170 mm

Weight: 13.4 kg

Content: 1 pc(s)

Type: GC-AGM12V50AH-H

Rechargeable: Yes

Connector: M6 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773487 Green Cell GC-AGM12V50AH-H VRLA AGM 50 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773487 Green Cell GC-AGM12V50AH-H VRLA AGM 50 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
