Buy Green Cell GC-AGM12V75AH-J VRLA AGM 75 Ah 12 V 1 pc(s)

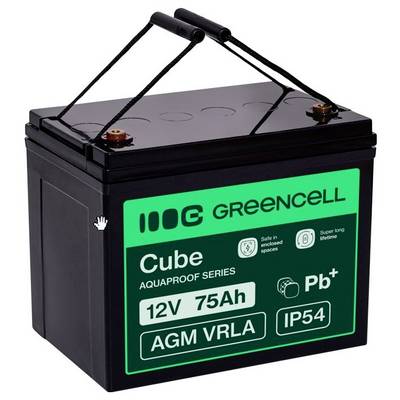

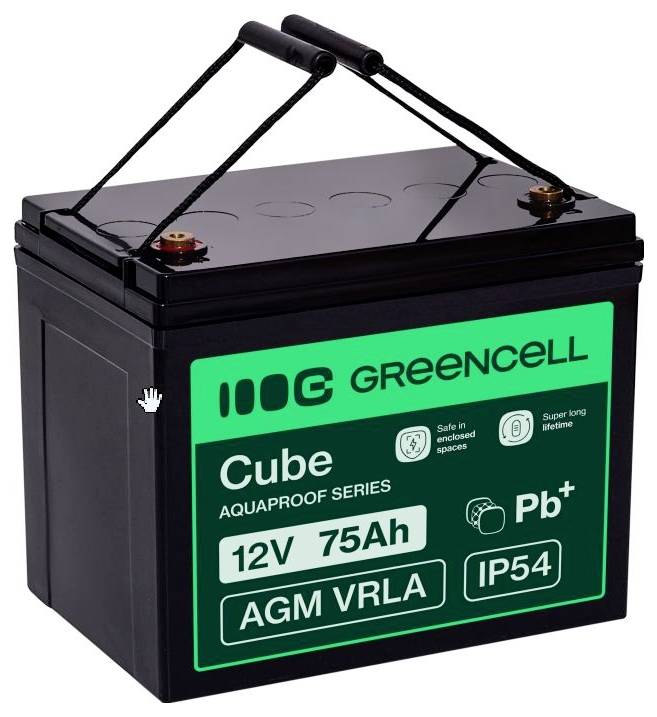

Black Greencell Cube AGM VRLA 12V 75Ah battery with top terminals and carry straps, labeled IP54 and Pb+.<br>

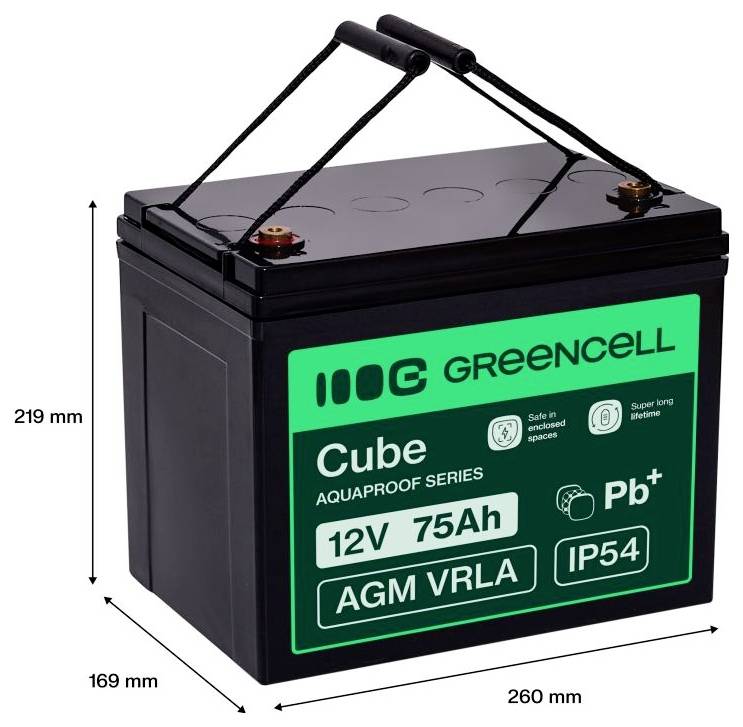

Black Greencell Cube 12V 75Ah AGM VRLA battery with carry handle, shown with dimensions 260 mm wide, 169 mm deep, 219 mm high.

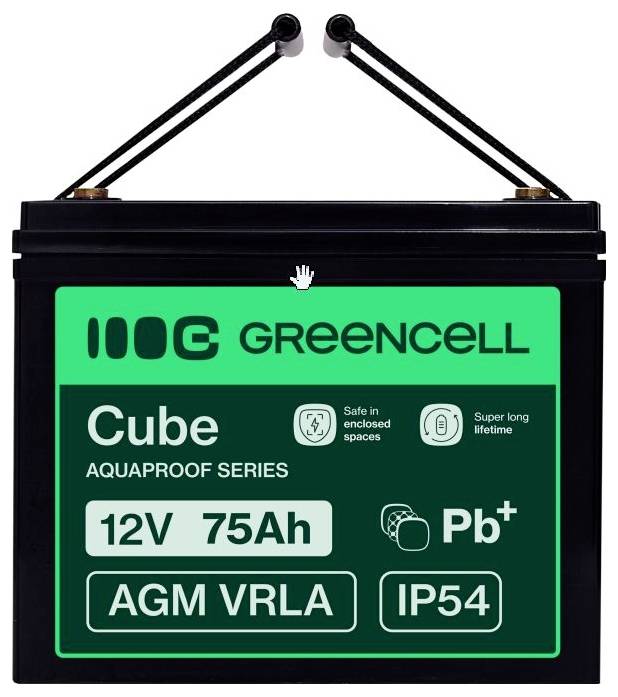

GreenCell Cube Aquaproof Series 12V 75Ah AGM VRLA battery with handles and IP54 rating.

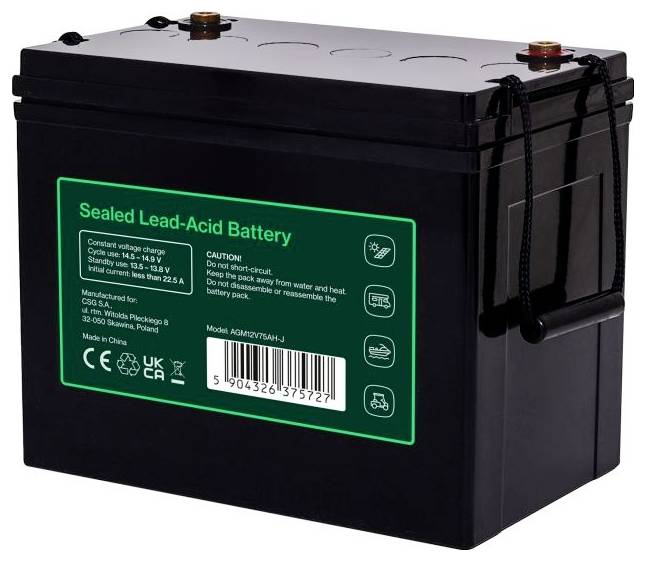

Black sealed lead-acid battery with green label, terminals on top, and a carrying strap on the right side.

Black rectangular electrical panel with six circular knockout marks and red and white terminal ports at the bottom corners.

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

Green Cell GC-AGM12V75AH-J VRLA AGM 75 Ah 12 V 1 pc(s)

Self-discharge: 2% per month (at 25 °C)
Intended use: For boats and photovoltaic systems
Capacity by temperature (40 °C – 102%) (25 °C – 100%) (0 °C – 85%) (-15 °C – 65%)
Trickle charge 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 22.5 A.

Technical specifications

Width 260 mm, depth 169 mm
Leakage / protection class IP54 (dust and splash-proof housing)
Service life: 5 years in buffer mode or at least 260 full cycles in cyclic operation
Peak discharge rate (max. 5 s): 750.00 A
Short circuit current 1,150 A
Charging current (max.) 22.50 A
Internal resistance (fully charged at 25 °C) 6.10 mΩ
Charging voltage (buffer operation/float) 13.5 - 13.8 VDC (at 25 °C)
Charging voltage (cyclic operation): 14.4 - 15.0 VDC (at 25 °C)
Compensation charging (equalization) 14.1 - 14.4 VDC

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 75 Ah

Height: 211 mm

Weight: 20.3 kg

Content: 1 pc(s)

Type: GC-AGM12V75AH-J

Rechargeable: Yes

Connector: M6 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773480 Green Cell GC-AGM12V75AH-J VRLA AGM 75 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773480 Green Cell GC-AGM12V75AH-J VRLA AGM 75 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
