Buy Greisinger G1111-WPD5 Pressure gauge Pressure 0.0 - 1500.0 hPa

Greisinger G1111-WPD5 Pressure gauge Pressure 0.0 - 1500.0 hPa-0

Greisinger G1111-WPD5 Pressure gauge Pressure 0.0 - 1500.0 hPa-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 293.28 / piece)

€ 293.28

plus VAT.

Report legal concerns

Highlights & Details

Greisinger vacuum / barometer with pressure connection including hose, case and calibration certificate G 1111-UT-WPD

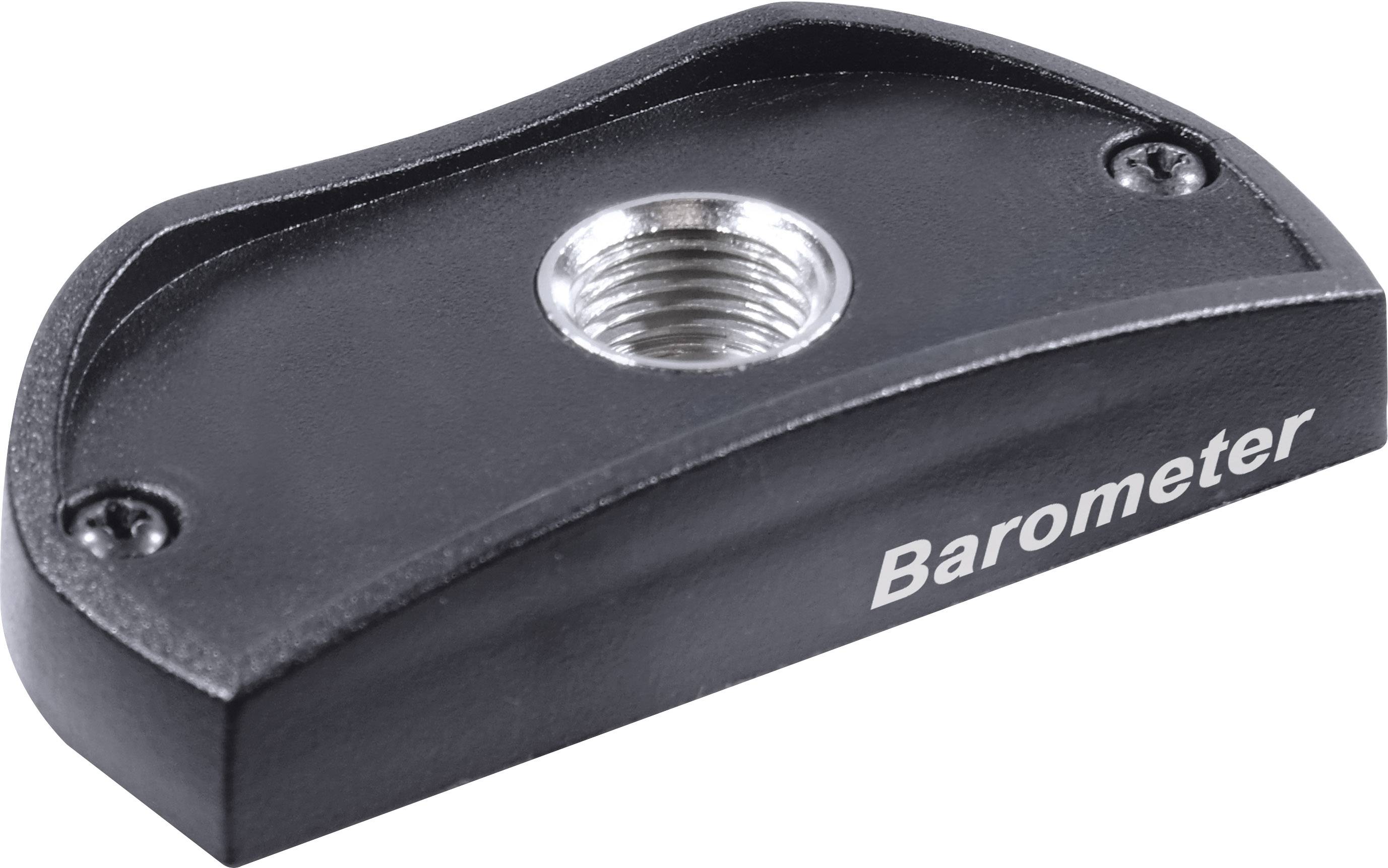

New: Universal PORT for the use of different pressure connections: Screw connection, Quick Connect, Push-Pull: Everything can be connected directly to the device! You can choose which type of connection is most practical for you – the device remains the same.
New: Increased accuracy in the vacuum range over a wide temperature range!
Modern and functional housing – in pocket-size
Excellent value for money
3-line illuminated display / overhead display at the push of a button
Watertight (IP67)
Robust, long battery life
Optimized for vacuum measurements
High resolution and accuracy
Very fast!
Can be calibrated / traceable
Made in Germany

Technical specifications

Pneumatic connection: 1/8 inch port incl. connection for 6x1 mm (4 mm inside) and 8x1 mm (6 mm inside) hoses

Reading range - air pressure: 0.0 ... 1500.0 hPa abs

Reading range: 0.0 - 1500.0 hPa

: Manufacturer's standards (no certificate)

Unit of measurement: Pressure

Reading range (max.): 1500.0 hPa

Reading range (min.): 0.0 hPa

Product type: Pressure gauge

Documents & Downloads

Datasheet

Datasheet 2237196 Greisinger G1111-WPD5 Pressure gauge Pressure 0.0 - 1500.0 hPa

User & Safety Instructions

User & Safety Instructions 2237196 Greisinger G1111-WPD5 Pressure gauge Pressure 0.0 - 1500.0 hPa

Description

The development of the new G 1111 deliberately focused on the key functions of measuring technology – a high-quality sensor is the heart of the measuring instrument – in which, despite the favorable overall price, no savings were made! The high temperature stability of the sensor together with the universal pressure connection concept increase comfort and safety especially with vacuum measurements. Precision, speed and reliability, packed in a compact and water-protected housing makes the device a reliable partner of the craft, Made in Germany. G1100 Series – the reference class for the trouser pocket!

This text is machine translated.
