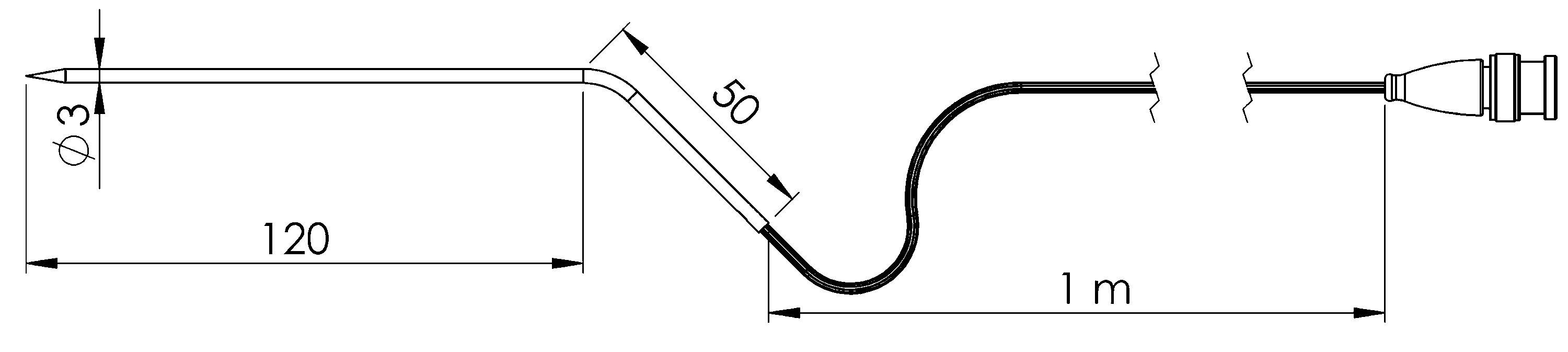

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Greisinger GF3T-E3-B-BNC Needle probe -70 up to +400 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Only 10 Piece(s) available
Highlights & Details
Greisinger insertion grille sensor up to max. 400 °C GF 3T-E3-B.
- Sensor type Pt1000
- -70 up to +400 °C
Technical specifications
- Sensor and sensor connection: Pt1000 (2-wire)
- Accuracy DIN class B
- Sensor tube material: V4A, bent
- Product type
Needle probe
- Sensor type
Pt1000
- Temperature reading range (min.)
-70 °C
- Temperature reading range (max.)
+400 °C
- Dim
(Ø) 3 mm
- Probe length
120 mm
- Cable length
1.00 m
- Temperature reading range
-70 up to +400 °C
- (Ø)
3 mm
Documents & Downloads
Datasheet
Datasheet 2248068 Greisinger GF3T-E3-B-BNC Needle probe -70 up to +400 °C Sensor type Pt1000
User & Safety Instructions
User & Safety Instructions 2248068 Greisinger GF3T-E3-B-BNC Needle probe -70 up to +400 °C Sensor type Pt1000
Description
Penetration grille sensor up to max. 400 °C GF3T
This text is machine translated.
This text is machine translated.
