Greisinger GHM GMSD-2,5MR-K51
EAN:
Part number:
Item no:
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Measuring range: -1,999... +2,500 mbar
- Overload max. 200 mbar
- Resolution: 0.001 mbar (0,1Pa)
- Hysteresis / linearity: ± 0.2 % FS
- Temperature influence: (from 0 - 50 °C) ±1 % FS
- Sensor: piezoresistive pressure sensor
- Pressure connection: 2 connecting pin made of nylon tubing 6 x 1 mm
- Working temperature: 0 ... +50 °C
- Relative Humidity: 0... +95 % r.F. (Non-condensing)
- Storage temperature: -25 ... +70 °C
- ABS casing with hook
- Dim
(W x H) 32.5 mm x 27.5 mm
- Height
27.5 mm
- Width
32.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1384569 Greisinger GHM GMSD-2,5MR-K51
Description

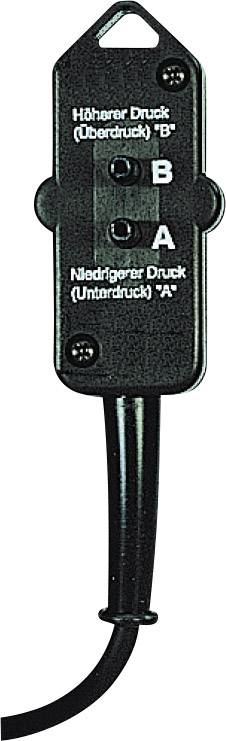

Plastic pressure sensor with hose connection for the GMH5xxx series.; 1 m PVC connection cable, shielded with molded 6-pin mini DINStecker and locking
This text is machine translated.
This text is machine translated.
Features
- Relative pressure sensors for over/under and differential pressure measurement board with amplifier and data storage for sensor data (measurement range, calibration, etc.) is integrated in the sensor housing
Scope of delivery
- Sensor
- User manual
Hints
Not for water/fluids. The Stainless Steel MSD pressure sensors use; only plastic hoses with 4 mm inner diameter, e.g. 6/4 (Ø 6 mm outer/Ø 4 mm inside)
System requirements
- GMH5xxx series
