Buy Greisinger GHM GMSD-25MR-K31

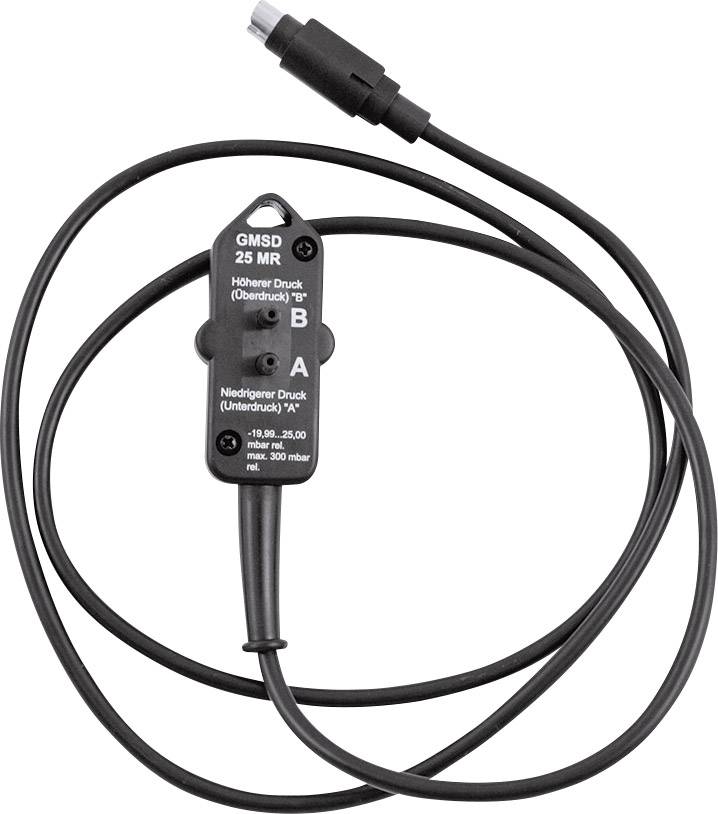

A differential pressure sensor GMSD 25 MR with cable and two connection options, marked with 'Higher Pressure' and 'Lower Pressure'.

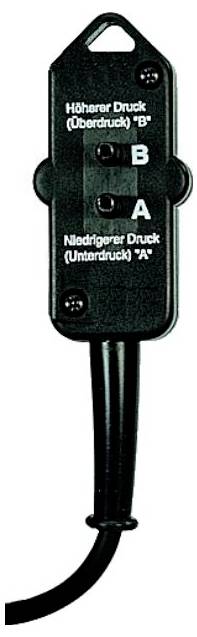

Pressure switch with labels 'Höherer Druck (Überdruck) "B"' and 'Niedrigerer Druck (Unterdruck) "A"' on a black casing.

1/2

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 264.71 / piece)

€ 264.71

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Greisinger Changeable handheld measuring device pressure sensors with hose connection for gases GMSD-25 MR

Relative pressure sensors for over/under and differential pressure measurement board with amplifier and data storage for sensor data (measurement range, calibration, etc.) is integrated in the sensor housing

Technical specifications

Measuring range: -19,99... +25,00 mbar
Overload max. 300 mbar
Resolution 0.01 mbar (1 Pa)
Hysteresis / linearity: ± 0.2 % FS
Temperature influence: (from 0 - 50 °C) ± 0.5 % FS
Sensor: piezoresistive pressure sensor
Pressure connection: 2 connecting pin made of nylon tubing 6 x 1 mm
Working temperature: 0 ... +50 °C
Relative Humidity: 0... +95 % r.F. (Non-condensing)
Storage temperature: -25 ... +70 °C
ABS casing with hook

Dim: (L x W x H) 68 x 32.5 x 27.5 mm

Width: 32.5 mm

Height: 27.5 mm

Length: 68 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1384564 Greisinger GHM GMSD-25MR-K31

Description

Plastic pressure sensor with hose connection for the GMH 3xxx series.; 1 m PVC connection cable, shielded with molded 6-pin mini DINStecker and locking

This text is machine translated.

Scope of delivery

Sensor
User manual

Hints

Not for water/fluids. The Stainless Steel MSD pressure sensors use; only plastic hoses with 4 mm inner diameter, e.g. 6/4 (Ø 6 mm outer/Ø 4 mm inside)
