Greisinger GIA 0420 VO Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 117.65
€ 113.44
plus VAT.
14-day return policy included
Highlights & Details

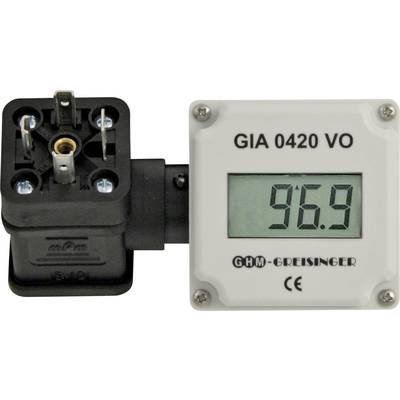

Greisinger self-supplying LCD on-site/field display GIA 0420-VO
- Scale freely adjustable "on site" in seconds with no auxiliary devices required
- Monitoring for probe damage, probe short-circuit, permissible limit - and the range below
- Steady display even when the transmitter signal is disturbed thanks to software filters (can be switched on/off).
- Without auxiliary power
- Angle plug can be rotated in any position
Technical specifications
- Self-supplying plug-in display
- Design: Right-angle plug
- Input signal: 4-20mA
- Voltage load: approximately 2 Volt
- Working temperature: -25..+50°C
- Connection: special adapter construction for cubic plug EN 175301-803/A
- ABS enclosure
- Protection class IP65
- Product type
Digital rack-mount meter
- Type
GIA 0420 VO
- Display technology
LCD
- Recess width
90 mm
- Recess height
50.5 mm
- Dim
(L x W x H) 39.5 x 90 x 50.5 mm
- Weight
0.11 kg
- Factory colour
Grey
- Width
90 mm
- Height
50.5 mm
- Length
39.5 mm
- Digit height
10 mm
- Connections
Special adapter design for cube plugs EN 175301-803/A for easy connection between the two.
- Digits
4
- Display (details)
10 mm high LCD display, decimal point can can be reset
- Assembly dimensions
39.5 mm
- Power supply (details)
From Current loop
- Display range
-1999...9999
Documents & Downloads
Datasheet
Datasheet 1592157 Greisinger GIA 0420 VO Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 1592157 Greisinger GIA 0420 VO Digital rack-mount meter
Description
Plug-in display GIA 0420-VO, 4-20mA, without buttons
This text is machine translated.
This text is machine translated.
Scope of delivery
- Device, 2 screws 68 and 75 mm, operating instructions
