Greisinger GIA 20 EB Standard signal: 4 - 20 mA, 0 - 20 mA, 0 - 1 V, 0 - 2 V, 0 - 10 V, 0 - 50 mV · Resistance thermomet
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Highlights & Details
Universal measurement and control unit GIA 2 EB
- 3 operating keys
- MIN/MAX value storage
Technical specifications
- Type
GIA 20 EB
IP54
- Dim
(W x H x D) 48 x 24 x 65 mm
- Factory colour
Red
- Width
48 mm
- Height
24 mm
- Interfaces
1x serial
- Digit height
10 mm
- Depth
65 mm
- Connections
Screw-plug terminals
- Digits
9999
- Display (details)
LED
- Assembly dimensions
46 x 22 mm
- Total dimensions
48 x 24 mm
- Power supply (details)
9 - 28 V DC
- Current consumption
<30 mA
- Display range
2000
- Reading range
Standard signal: 4 - 20 mA, 0 - 20 mA, 0 - 1 V, 0 - 2 V, 0 - 10 V, 0 - 50 mV · Resistance thermometer: Pt100 (3-pin), Pt1000 (2-pin) · Thermo-elements: Types J, K, N, S, T · Frequency/speed/counters: 0 - 10 kHz (TTL/switch contact)
- Reading category
-
Documents & Downloads
Datasheet
Datasheet 121376 Greisinger GIA 20 EB Standard signal: 4 - 20 mA, 0 - 20 mA, 0 - 1 V, 0 - 2 V, 0 - 10 V, 0 - 50 mV · Resistance thermomet
User & Safety Instructions
User & Safety Instructions 121376 Greisinger GIA 20 EB Standard signal: 4 - 20 mA, 0 - 20 mA, 0 - 1 V, 0 - 2 V, 0 - 10 V, 0 - 50 mV · Resistance thermomet
Description

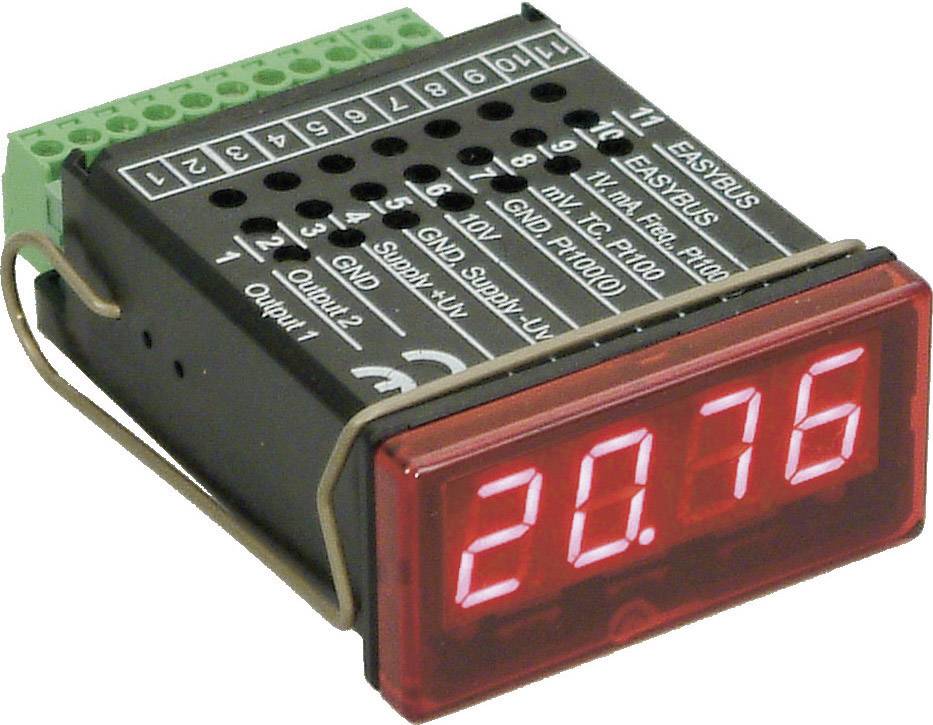

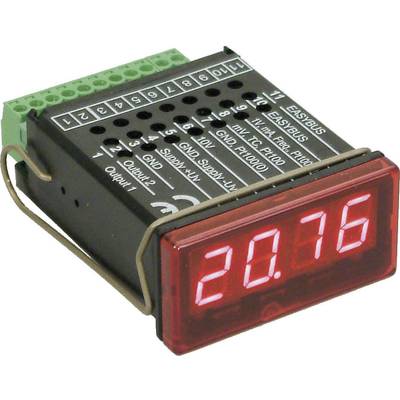

Universal panel-mounted instruments with scalable display
Features
- Universal inputs for standard signals, frequency, Pt100, Pt1000 and thermo-elements J, K, N, S, T
- 2 integrated switch outputs
- Can be configured as display or as controller (5 switching functions)
- Fast control and monitor behaviour
- Extensive self-monitoring and diagnostic system
- Galvanically separated serial interface (max. 240 devices can be combined)
- Limiting functions, digital filter, min.-/max value storage
- Alarm delay can be set
- Mounting via VA-spring clip (panel thicknes 1 to 10 mm)
- Measurement rate approx. 100 measurements/s in standard signals, approx. 4 measurements in case of temperature and frequency.
Scope of delivery
- Front aperture without scanner
- User manual.
