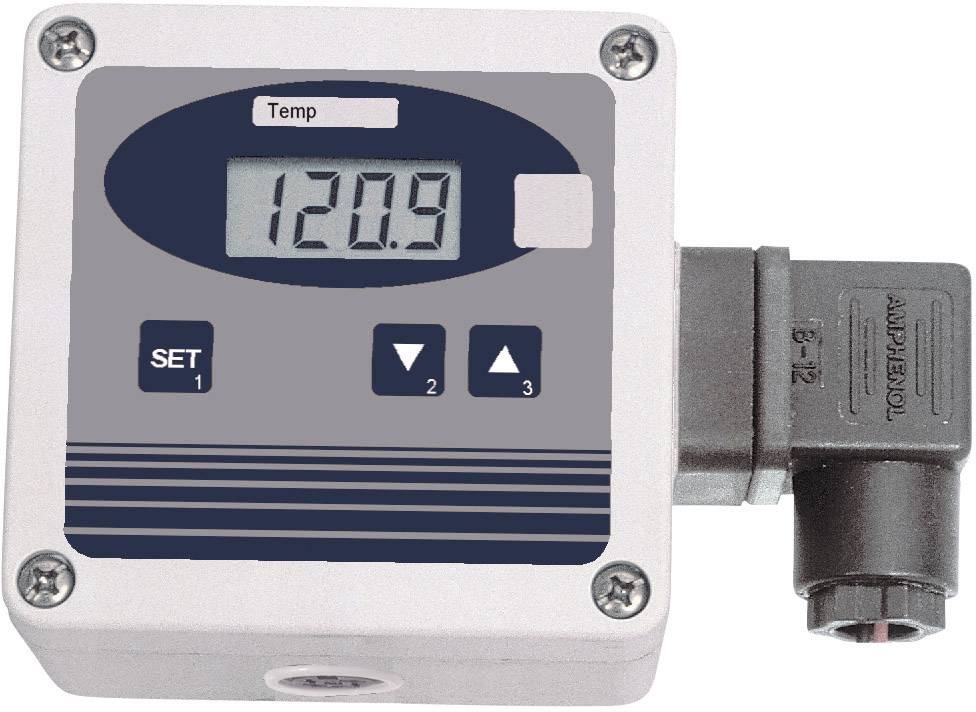

Greisinger GLMU 400 MP Multi tester Temperature, Salinity , Conductivity, TDS
EAN:
Part number:
Item no:
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
14-day return policy included
Highlights & Details
Greisinger conductivity transducer GLMU-400-MP
- 4-pin measuring technology
- Especially suitable for high salt and dirty fluids
- Measuring range freely scalable
- Temperature compensation type can be selected
- On-site display of conductance and temperature
Technical specifications
- Measuring range: freely selectable
- Different units can be displayed: spec. resistance, TDS and Saliniat
- Output signal: 4 - 20 mA
- Specific resistance:
- 0.0 to 200.0 kΩ/cm
- 0.00 to 20.00 kΩ/cm
- 1 to 5000 Ω/cm
- 1.0 to 500,0 Ω/cm
- 1.00 to 50.00 Ω/cm
- Product type
Multi tester
- Reading type
Temperature
Salinity
Conductivity
TDS
- Display
Digital
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 55 x 82 x 80 mm
- Conductivity reading range
0 - 2000 µS/cm
- Conductivity reading range (max.)
2000 µS/cm
- Conductivity reading range (min)
0 µS/cm
- TDS reading range
0 - 20000 mg/l
- TDS reading range (max.)
20000 mg/l
- TDS reading range (min.)
0 mg/l
- Temperature reading range
+140 up to -5.0 °C
- Temperature reading range (max.)
-5.0 °C
- Temperature reading range (min.)
+140 °C
- Width
82 mm
- Height
80 mm
- Length
55 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 650873 Greisinger GLMU 400 MP Multi tester Temperature, Salinity , Conductivity, TDS
Description
Galvanically isolated LF-transducer with microprocessor control and extended range of functions. You can also salinity (salt content of sea water), TdS or specific resistance as the output signal can be output.
This text is machine translated.
This text is machine translated.
Features
- High-quality, contamination insensitive Conductivity Measuring cell
- Cell constant K = 0.30 to 1.20 can be set freely.
Scope of delivery
- Conductivity electrode
- Insertable measuring units
- Operating Instructions lead tung
