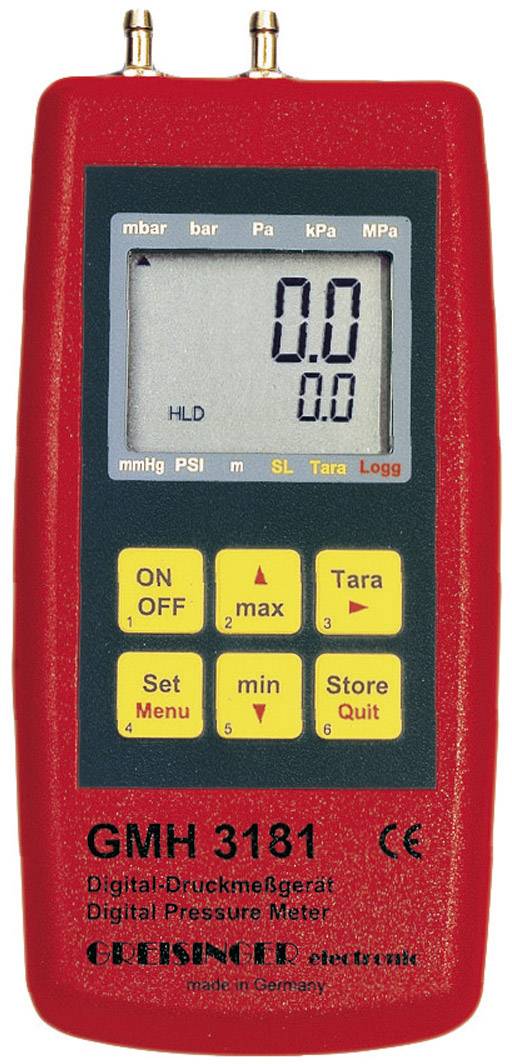

Greisinger GMH 3181-07 Digital Fine Manometer with Logger
EAN:
Part number:
Item no:
Number
Total (€ 494.96 / piece)
€ 494.96
plus VAT.
14-day return policy included
Highlights & Details
Greisinger pressure gauge with integrated Sensor and data logger GMH 3181-07
- Measuring Range: -10 to +350 mbar or ( -350to 0.0 mbar)
- Integrated relative pressure sensor
- Suitable for air or non-corrosive or non-ionising gases
- Looger: 99 (manually), 10000 (cycle), adjustable cycle time
Technical specifications
- Datal ogger: 99 (manually), 10000 (cycle), adjustable cycle time
- Power supply (details)
9V battery, d.c. connector
- Product type
Pressure gauge
- Reading range
-0.01 - 0.350 bar
- Power consumption
approx 0.6 mA
- Unit of measurement
Air pressure
Non-corrosive gas
Corrosive gas
- Pneumatic connection
2 solid metal connection pin, nickel-plated brass, for connection of pressure tubes 6x1 mm (4 mm inside diameter)
- Reading range - air pressure
-10.0 to +350.0 mbar (± 350,0 mbar) rel.
- Analogue outputs
0 - 1 V
Manufacturer's standards (no certificate)
- Display range
mbar, bar, Pa, kPa, MPa, PSI, mmHg, mH2O
- Print resolution
0.0001 bar
- Sensor
Piezoresistive pressure sensor, internal
- Temp.
-25 To +50 ° C, 0 to +95% r.h. (non-condensing)
- Excess pressure resistance
1 bar rel.
IP65
- Dim
(L x W x H) 142 x 71 x 26 mm
- Weight
170 g
- Accuracy
0.1 %
- Reading range (max.)
0.350 bar
- Reading range (min.)
-0.01 bar
- Width
71 mm
- Height
26 mm
- Length
142 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 125863 Greisinger GMH 3181-07 Digital Fine Manometer with Logger
Conformity certificate
Conformity certificate 125863 Greisinger GMH 3181-07 Digital Fine Manometer with Logger
Description
Handy and strong pressure-hand measuring device with built-in relative pressure sensor and 4mm pressure connections.
This text is machine translated.
This text is machine translated.
Features
- Auto-Off, BAT, Min-/Max-value, Hold, Tare, Scale, Offset
- Mains Adaptor Socket, Serial Interface
- 2 Pressure Connection Ports Ø4mm, Piezoresistiv Sensor
- Zero adjustment
- Integrated pressure sensor
- Solid metal connection pin
Scope of delivery
- Pressure Device with Internal Sensor
- Manual
- Battery
