Greisinger GMH 3531 Multi tester pH, ORP, Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
Only 6 Piece(s) available
Highlights & Details

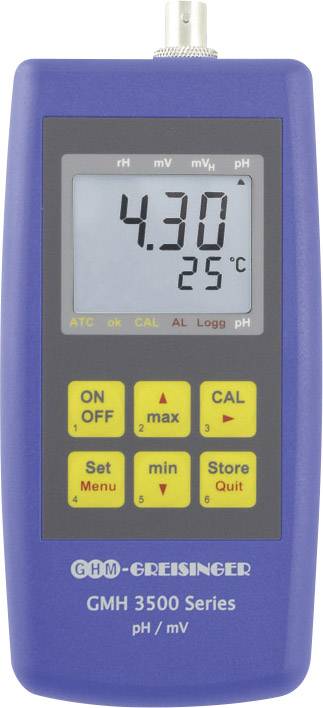

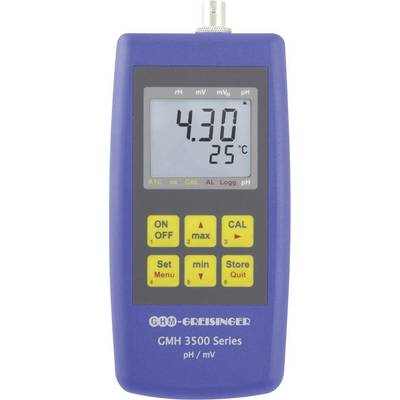

Greisinger pH-/redox-/temperature meter GMH 3531
- RH measurement
Technical specifications
- Temperature measurement range: -5.0 ... +150.0°C or 23.0... +302,0°F
- PH reading range: 0.00 ... 14.00 pH
- Measurement range - Redox (ORP): -1999... +2000 hpa mV related to hydrogen system:-8727... +2207 mVH (DIN 38404)
- Measuring range rH: 0.0... 70.0 rH
- Accuracy (device): ± 1 digit at nominal temperature = 25°C
- Temperature accuracy: ±0.2 °C (-5... 100 °C)
- "Accuracy, pH: ±0.01 pH
- "Accuracy, redox" (ORP) ± 0.1 % FS (mV or mVH)
- Accuracy rH: ±0.1 rH
- Temperature sensor connection: 2 x 4 mm banana for Pt1000, 2-wire
- Sensor connection pH, Redox: BNC socket
- 2 four-digit LCD displays (12.4 mm or 7 mm high)
- Working temperature: 0 ... +50 °C
- Storage temperature: -20 ... +70 °C
- Interface: Serial Interface
- Power supply: 9V battery, power supply socket for external 10,5-12 V DC power supply (suitable power supply: GNG 10/3000)
- Power consumption: 1 mA
- Housing: housing made of impact-resistant ABS plastic, foil keyboard, clear-view disc, integrated setting up/hanger
- Protection type: front IP65
- Product type
Multi tester
- Reading type
pH
ORP
Temperature
- Accuracy
± 0.01 ph
- Display
LCD
- Dim
(L x W x H) 26 x 71 x 142 mm
- Weight
170 g
- Temperature reading range
-5 up to +150 °C
- Temperature reading range (max.)
+150 °C
- Temperature reading range (min.)
-5 °C
- pH reading range
0.00 - 14.00 pH
- pH reading range (max.)
14.00 pH
- pH reading range (min.)
0.00 pH
- Width
71 mm
- Height
142 mm
- Length
26 mm
Documents & Downloads
Datasheet
Datasheet 1305327 Greisinger GMH 3531 Multi tester pH, ORP, Temperature
User & Safety Instructions
User & Safety Instructions 1305327 Greisinger GMH 3531 Multi tester pH, ORP, Temperature
Description
PH/redox/temperature measuring instrument for measurements in bodies of water, aquarium, fish farming, drinking water, process monitoring, ground measurement, food production and control, swimming pools
This text is machine translated.
This text is machine translated.
Features
- Automatic-off function
- Battery status indicator
- Automatic hold
- Min-/Max-Wertspeicher.
Scope of delivery
- Device
- Battery
- Operating instructions
