Greisinger GMH3161-002 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -5 - +5 mbar
EAN:
Part number:
Item no:
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
Only 2 Piece(s) available
Highlights & Details

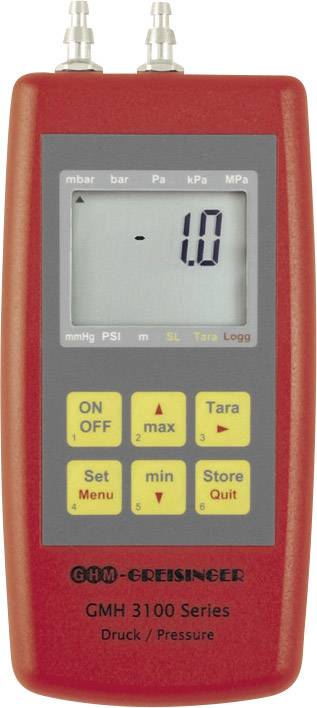

Greisinger pressure gauge with integrated Sensor GMH 3161-002
- For over/under pressure and pressure difference
- Suitable for air and non korrossive and non-ionising gases
Technical specifications
- Measuring range: -500,0... +500,0 Pa (-5,000... +5,000 mbar)
- Overload: max. 250 hPa (mbar)
- Resolution: 0.1 Pa (0.001 mbar)
- Additional pressure units: kPa, PSI, mmHg, mH₂O
- Accuracy (type. Values) hysteresis and linearity: 0.3% FS
- Temperature influence of 0 - 50°C: 0.4% FS
- Sensor: piezoresistive relative pressure sensor internally in the measuring device installed. Suitable for air and non-aggressive gases. (Note: Sensor is not suitable for water!)
- Pressure connection: 2 Universal Pressure socket for 6 x 1 mm (4 mm hose inner diameter) or 8 x 1 mm (6 mm hose inner diameter) plastic hoses
- Data logger: No
- Display: 2 x 4½-digit LCD
- Output: serial interface, 3-pin 3.5 mm jack plug
- Power supply: 9 V battery, power supply socket.
- Sensor Adjustment: Digital offset and slope entry
- Peak value storage: - -
- Measurement cycle: "slow" 4 measurements/s, "fast", "peak-detect"--
- Averaging:--
- Power consumption: approx 0,6mA
- Working conditions: -25...+50 °C, 0 to +95% r.h. (Non-condensing)
- Housing: 142 x 71 x 26 mm (without sensor connection nozzle nozzle approx. 11 mm at the front above), made of shock-resistant ABS plastic, front IP65 with integrated mounting/hanger
- Power supply (details)
9V battery, d.c. connector
- Product type
Pressure gauge
- Reading range
-5 - +5 mbar
- Power consumption
approx 0.6 mA
- Unit of measurement
Air pressure
Non-corrosive gas
Corrosive gas
- Pneumatic connection
2 solid metal connection pin, nickel-plated brass, for connection of pressure tubes 6x1 mm (4 mm inside diameter)
Manufacturer's standards (no certificate)
- Display range
mbar, bar, Pa, kPa, MPa, PSI, mmHg, mH2O
- Print resolution
0.000001 bar
- Sensor
Piezoresistive pressure sensor, internal
- Temp.
-25 To +50 ° C, 0 to +95% r.h. (non-condensing)
IP65
- Dim
(L x W x H) 142 x 71 x 26 mm
- Weight
250 g
- Accuracy
0.1 %
- Reading range (max.)
+5 mbar
- Reading range (min.)
-5 mbar
- Width
71 mm
- Height
26 mm
- Length
142 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1305340 Greisinger GMH3161-002 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -5 - +5 mbar
Conformity certificate
Conformity certificate 1305340 Greisinger GMH3161-002 Pressure gauge Air pressure, Non-corrosive gas, Corrosive gas -5 - +5 mbar
Description
Handy and rugged durck-handmessgerat with integrietem durcksensor and 4 mm pressure connections.
This text is machine translated.
This text is machine translated.
Features
- Automatic-off function
- Battery status indicator
- Automatic hold
- Min./max. value memory
- Offset/gradient correction
- Tare function
Scope of delivery
- Battery
- User manual.
