Greisinger GMH3161-12-WPD5 Pressure gauge Calibrated to (ISO standards) Air pressure, Non-corrosive gas, Corrosive gas 0
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 3 Piece(s) available
Highlights & Details

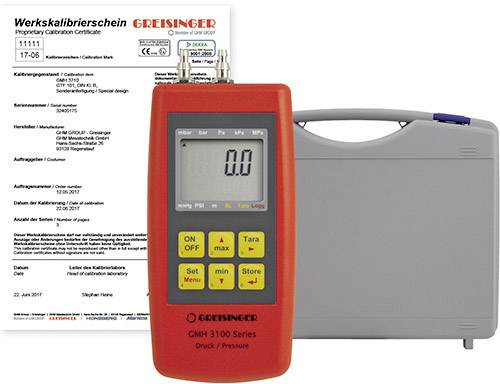

Greisinger pressure gauge with integrated Sensor incl. case and calibration certificate GMH 3161-12-WPD5
- For absolute pressure measurement
- Suitable for air and non korrossive and non-ionising gases
Technical specifications
- Vacuum or barometer
- Display: 2 x 4½-digit LCD
- Sensor: piezoresistive differential pressure sensor internally in the measuring device installed. Suitable for air and non-aggressive gases.
- Pressure connection: 1 Universal Pressure socket for 6 x 1 mm (4 mm hose inner diameter) or 8 x 1 mm (6 mm hose inner diameter) plastic hoses
- Output: Serial Interface
- Accuracy (type. Values): hysteresis and linearity: ± 0.2 % FS; temperature influence of 0 to 50 °C ± 0.4 % FS
- Power supply: 9V battery, power supply socket for external 10.5 to 12V DC power supply (e.g. GNG10/3000)
- Sensor Adjustment: Digital offset and slope entry
- Measurement cycle: 4 measurements/s
- Battery life: approx. 500 h
- Working conditions from -25 to +50 °C, 0 to +95% r.h. (Non-condensing)
- Housing: 142 x 71 x 26 mm (H x W x D) (without sensor connectors, approx. 16 mm at the front above), made of shock-resistant ABS plastic, foil keyboard, clear-view disc, integrated setting up/hanger
- Power supply (details)
9 V battery, power supply socket.
- Product type
Pressure gauge
- Reading range
0 - 1.3 bar
- Power consumption
Approx. 0.6. mA
- Unit of measurement
Air pressure
Non-corrosive gas
Corrosive gas
- Pneumatic connection
1
ISO standards
- Display range
Mbar, bar, Pa, kPa, MPa, mmHg, PSI, mH2O
- Print resolution
0.001 bar
- Sensor
Piezoresistive Pressure Sensor, internal
- Temp.
-25 to +50 °C, 0 to +95% r.h. (Non-condensing)
IP65
- Dim
(L x W x H) 26 x 71 x 142 mm
- Weight
165 g
- Resolution
1 mbar
- Accuracy
0.1 %
- Reading range (max.)
1.3 bar
- Reading range (min.)
0 bar
- Width
71 mm
- Height
142 mm
- Length
26 mm
Documents & Downloads
Datasheet
Datasheet 1628118 Greisinger GMH3161-12-WPD5 Pressure gauge Calibrated to (ISO standards) Air pressure, Non-corrosive gas, Corrosive gas 0
User & Safety Instructions
User & Safety Instructions 1628118 Greisinger GMH3161-12-WPD5 Pressure gauge Calibrated to (ISO standards) Air pressure, Non-corrosive gas, Corrosive gas 0
Description
Handy and rugged durck-handmessgerat with integrietem durcksensor and 4 mm pressure connections.
This text is machine translated.
This text is machine translated.
Features
- Automatic-off function
- Battery status indicator
- Automatic hold
- Min./max. value memory
- Offset/gradient correction
- Tare function
Scope of delivery
- Device
- Battery
- Test report
- Operating instructions
- Hard case
Hints
Sensor is not suitable for water!
